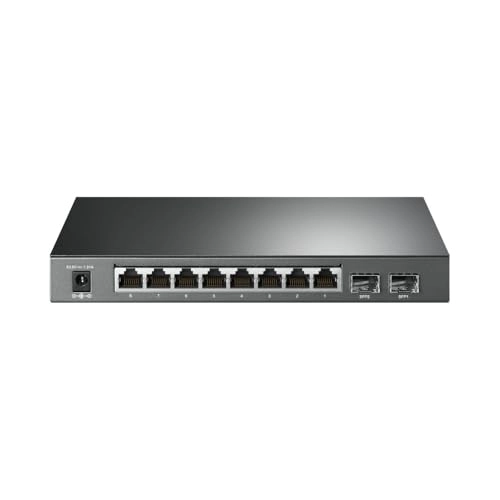

TP-Link SG2210P 8-ports

Name: TP-Link SG2210P 8-ports
Brand: TP-Link
SKU: 105306
Availability: InStock

Best offer

AED

258⁰⁰

Key Features

IP routing: Yes
MAC address table: 8000entries
Thermal Design Power (TDP): 61W
Power source: AC
Form factor: ATX, Desktop
SFP module slots quantity: 2
Zero Touch Provisioning (ZTP): Yes
Product colour: Black, Dark grey
Total Power over Ethernet (PoE) budget: 61W
Power over Ethernet (PoE) ports quantity: 8
Width: 126, 209mm
Depth: 126, 209mm
Height: 26mm
Weight: 500, 800, 1000, 1260, 2110g
Batteries included: No

Specifications

Features

Product colour

Black, Dark grey

MAC address table

8000 entries

Thermal Design Power (TDP)

61 W

Weight & dimensions

Weight

500g, 800g, 1000g, 1260g, 2110g

Height

26 mm

Depth

126mm, 209mm

Width

126mm, 209mm

Power

Power consumption (typical)

10.50W, 77.80W

Total Power over Ethernet (PoE) budget

61 W

Power source

Design

Form factor

ATX, Desktop

Packaging content

Batteries included

✗

Ports & interfaces

Power over Ethernet (PoE) ports quantity

SFP module slots quantity

Technical details

Zero Touch Provisioning (ZTP)

✓

Ethernet LAN features

IP routing

✓

Product Details

Model Number : T1500G-10PS(TL-SG2210P)
Brand : TP-Link
Number of Ports : 8
Type : POE Plus Switch
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply 100~240VAC, 50/60Hz External Power Adapter(Output: 48VDC/1.25A) Power Consumption Maximum (PoE on): 64.9W Maximum (PoE off): 9.9W PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions ( W x D x H ) 209 * 126 * 26mm
Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8K Jumbo Frame 9KB
Quality of Service 802.1p CoS/DSCP priority 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN L2 Features IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control LLDP, LLDP-MED VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports Security Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend Management Web-based GUI Command Line Interface(CLI) through telnet SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image
