The USB HD 1080P CMOS board camera module make it ideal for many applications such as security systems, portable video system, vidéophones, industrial machine monitoring, and toys.
The USB camera module is ideal for fans, expérimentateurs and to. Car and Boat control applications, electronic equipment, oil, industrial equipment, monitoring Remote Areas, monitoring of equipment.

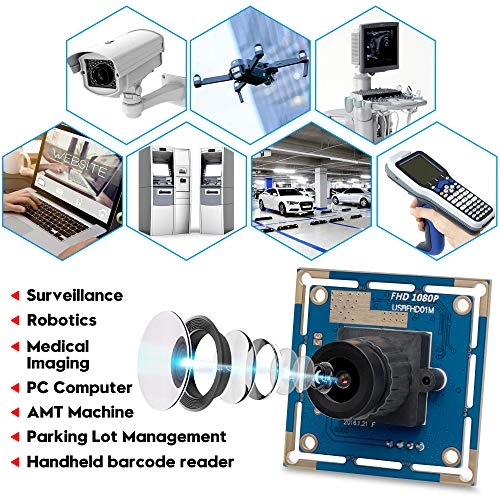

Used for all kinds of machine as shown below:, All-in-One machine, point of sale equipment, vending machine, safe external, Laptop, videophone, mid, Tablet, evaluated, medical equipment, law enforcement on the ground, sound and simple button, cat-eye system, security system, car, interactive, data logger system education.
Specification:
Sensor: 1/3 CMOS OV2710
The size of the lens, 200 W, 2.0Megapixel, 1920 (H) x1080 (V) pixels Max.
Resolution: 1920 x 1080
Image Format: MJPEG
USB protocal: USB2.0 HS/FS, USB1.1 FS
Support driver free, USB video class (UVC) 1.1
Exposure: Auto AEC: Support
Auto White Blance AEB: Support
Frame Rate: H.264 30fps @ 1920 (H) x1080 (V) MJPEG 60 fps @ 1280 (H) × 720 (V)

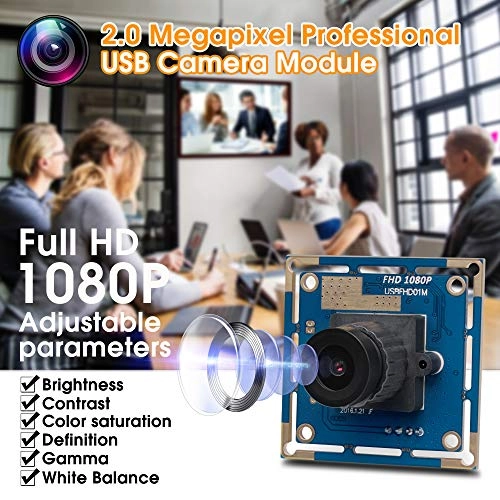

Adjustable parameters: brightness/contrast/color Saturation/definition vision/Gamma/WB
30-150 level of tension Optional
DC 5 V; Current: 150mA
Temperature: -20 ~ 70 (degres)

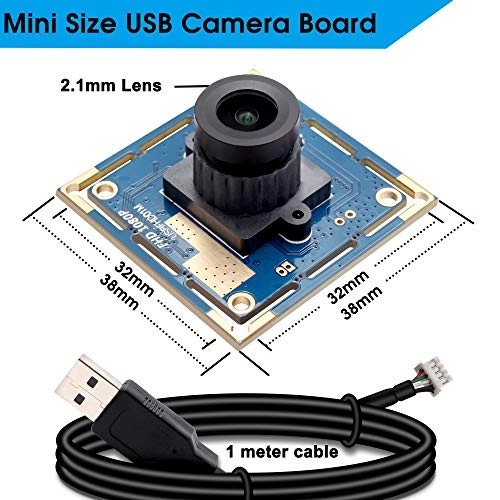

Sheet Size (Optional): 38x38 mm (default), 32

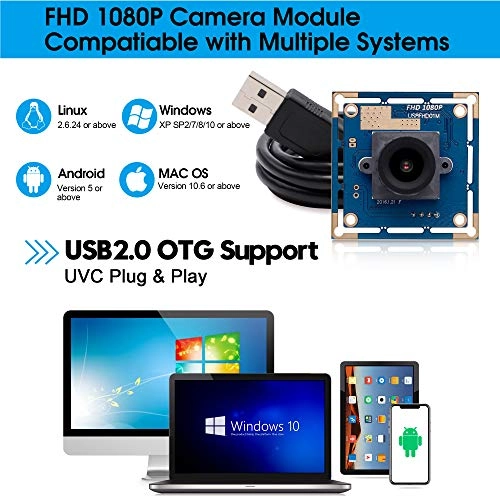

Support OS: Windows XP/Vista/Win7/Win8/Linux with UVC "Mac OS X 10.4.8 or later/WinCE with UVC/Android 4.0 or above"
Fast frame for high speed moving, 30fps@1080p, 60fps@720p, 100fps@VGA.
Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps
