Ailipu Technology Co., Ltd USB100W07M-MHV45

Name: Ailipu Technology Co., Ltd USB100W07M-MHV45
Brand: Ailipu Technology Co., Ltd
SKU: 108091
Availability: InStock

Best offer

AED

126³⁰

Key Features

Sensor resolution: 1MP
Video capture resolution (max): 1280 x 720pixels
Minimum illumination: 0.1lx
Product colour: Black
Maximum video resolution: 1280 x 720pixels
Product dimensions: 3.78 X 3.78 X 2.31 cm
Cable length: 1m
Dimensions (WxDxH): 26 x 32 x 32mm
Interface: USB
Video formats supported: M-JPEG
Weight: 30g
Plug and Play: Yes
Display diagonal: 2"

Specifications

Features

Display diagonal

2 "

Plug and Play

✓

Product colour

Black

Sensor resolution

1 MP

Weight & dimensions

Weight

30 g

Cable length

1 m

Product dimensions

3.78 X 3.78 X 2.31 cm

Other features

Dimensions (WxDxH)

32 x 32 x 26 mm

Video capture resolution (max)

1280 x 720 pixels

Ports & interfaces

Interface

USB

Video

Video formats supported

M-JPEG

Maximum video resolution

1280 x 720 pixels

Image sensor

Minimum illumination

0.10 lx

Product Details

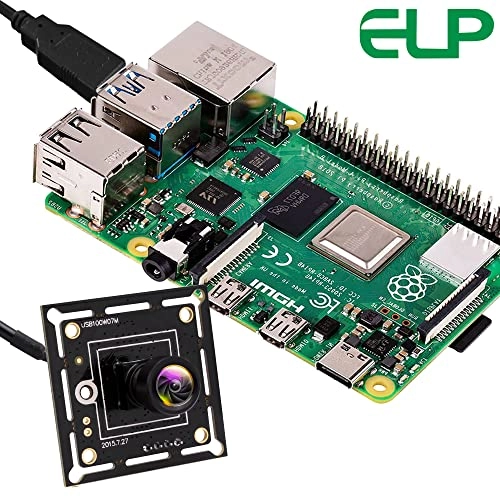

ELP-USB100W07M-MHV45 is a 720P USB2.0 OmniVision OV9712 Color CMOS Sensor USB Camera Mini Size (32*32/26*26mm) with M7 45degree wide angle Lens Specification: Sensor OV9712 Lens Size 1/4 inch Pixel Size 3.0um X 3.0um image area 3888m x 2430m Max. Resolution 1280(H)X720(V) Compression format MJPEG / YUV2（YUYV） Resolution & frame MJPEG：320X240@ 30fps, 352X288@ 30fps 640X360@60fps,640X480@ 30fps 800X600@ 30fps,1280X720@ 30fps YUV： 320X240@ 30fps,352X288@ 30fps 640X360@30fps,640X480@ 30fps 800X600@ 15fps,1280X720@ 5fps S/N Ratio 40dB Dynamic Range 69dB Sensitivity 3.7V/lux-sec@550nm Mini illumination 0. 1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class（UVC） Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard M7 LENS FOV(D)60 (H)45 Degree LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V Operating Voltage 120mA~180mA Working current -10～70℃ Working temperature -20～85℃ Board size /Weight 32X32mm（Compatible 26X26mm）/ about 30g Cable Standard 1M Operating system request Win7 Win8,Mac os, Linux 2.6 or above,Android 4.0 or above
