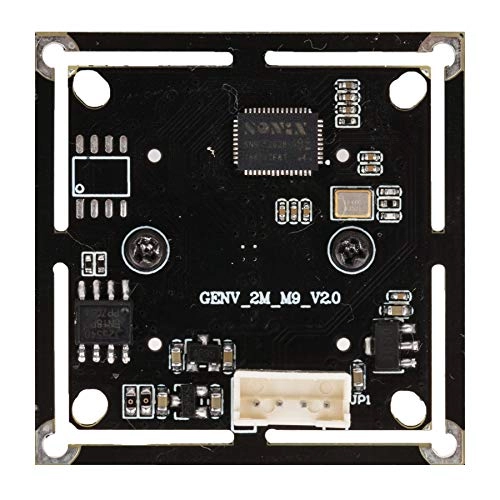

Spinel UC20MPG_L60

For more details check out www.spinelelectronics.com. For questions, technical support and custom orders, please email us at info@spinelelectronics.com or call 1-800-837-5859.

Image Sensor: 1/2.8’’ CMOS Sony IMX290 Pixel Size: 2.9μm x 2.9μm Resolution: 2 MP FULL HD 1920(H) X 1080(V) Shutter Type: Electronic rolling shutter Focus: Manually adjustable Focusing Range: 20mm to Infinity Protocol & Connection: Plug-&-Play (UVC compliant) Frame Rate: 320X240 QVGA MJPEG/H264 @30fps YUV2 @30fps 640X480 VGA MJPEG/H264 @30fps YUV2 @30fps 1280X720 HD MJPEG/H264 @30fps N/A 1920X1080 FHD MJPEG/H264 @30fps N/A Minimum Illumination: 0.002 Lux WDR: 63db Lens: Default 6mm lens for 60 degree FOV . For other Custom options, please contact us: 2.1mm, 2.8mm, 6mm, 8mm, 12mm, 16mm, 25mm, 100 degree FOV non-distortion lens, Pin-hole 2.8mm, 3.7mm, 4.3mm lens, 185 Degree Fisheye, CS lens and others upon request Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure. Power Socket: 4P PH 2.0mm socket, USB BUS Power. Cable Length: Default 4ft (1.2M) (optional 2M or others upon request). Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC. Power Consumption: DC5V (±5%), 150~200mA. Operating Temp.: -4°F~167°F (-20°C~+75°C). Storage Temp.: -40°F~185°F (-40°C~+125°C) Dimension: 38mmx 38mm (Mount compatible with 32 x 32mm) Weight: 12g (0.4OZ)
