SEENGREAT OV5640

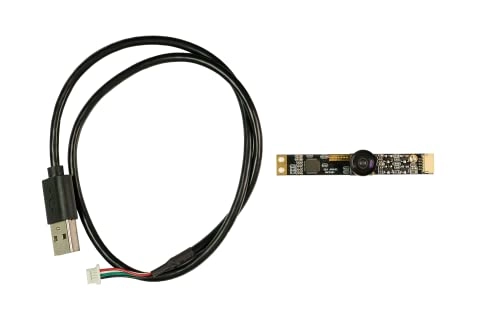

Overview: This USB Camera Module adopts the CMOS image sensor OV5640 produced by OmniVision Technologies. The high-definition camera has 5 megapixels, onboard USB 2.0 interface. It weighs only 3g, adopting fixed focus method, with its own flash and microphone, supporting Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano operating system. Specifications: Size: 62mm(Length)*9mm(Width)*10.7mm(High)±0.3mm Temperature (operation): -30℃~70℃. Temperature (stable image): 0℃~50℃. Assembly technique: SMT (rosh). Focus: fixed. Object distance: 30 cm infinity. Resolution: 600LW/PH (centre). Interface: USB 2.0. Power supply: USB bus power. Supply voltage: DC 5 V ± 5 %. Maximum power consumption: 840 mW. Operating System Request: Win XP/Win7/Win8/Vista/Mac/Linux with uvc/Android 4.0/Jetson Nano Sensor: OV5640 (1/4 inch). Sensor Package: CSP, Bare Die Maximum resolution: 2592 x 1944. Sensitivity: 600mv/(lux-sec) Pixel size: 1.4µm x 1.4µm. Maximum image transfer rate: MJPEG 1280x720 30FPS /YUY2 1280x720 12FPS MJPEG 1280x960 15FPS /YUY2 1280x960 5FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPS MJPEG 1920x1080 30FPS /YUY2 1920x1080 6FPS MJPEG 2048x1536 15FPS /YUY2 2048x1536 2FPS MJPEG 2592x1944 15FPS /YUY2 2592x1944 2FPS S/N ratio: 36 dB. Max dynamic range: 68 dB. Shutter type: Electronic rolling shutter AGC/AEC/Whiter Balance: Auto Output formats: YUY2/MJPEG. Microphone: Support Lens Construction: 2G2P F/No: 2.0. EFL: 1.66 mm. FOV: 160°. TV distortion: <8.5%. Relative illumination (sensor): 70%. IR filter: 650±10nm Package: Anti-electrostatic tray. Package contents: 1. OV5640-U5M-160 (fixed focus) x1. 2. USB to HX1.25-5P connecting cable x1.
