卓鸿商行 Fisheye Camera 4K

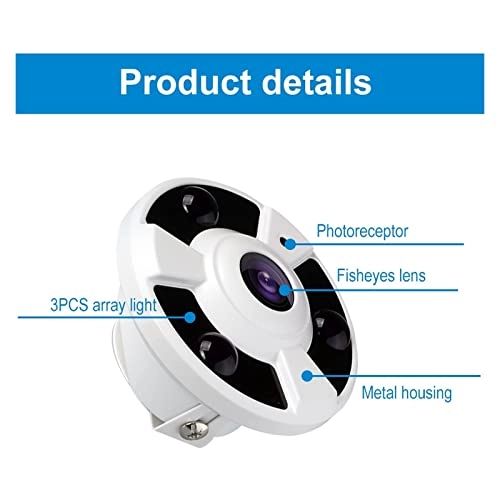

Key Features: 1. Adopt Analog HD technology 2. Support 4 output modes , Full HD 8.0MP TVI/AHD video output or CVBS output 3.1/2" 8.0MP Progressive Scan CMOS 4. Min illumination color 0.1 Lux, 0 Lux with IR 5.Day/Night(ICR)& DNRAWBAGCBLC 6Support the OSD menu control support function 78MP155mm Fisheye Lens 83pcs array IR LEDs, up to 20m IR distance 9. metal housing Form parameters Mode Name and Description 8.0MP 4 In 1 High Definition IR Fisheye Camera ASHD20-D25-81 Camera Media Processor Fullhan 8556 + OV OS08A10) 8.0Mpixes Image Sensor 1/2" 8.0MP Progressive Scan CMOS Effective Pixels 3840 (H) × 2160 (V) Video Frame Rate 8MP@15fps, 960H@25(30)fps Signal System PAL/NTSC Min. Illumination Color 0.1 Lux, 0 Lux with IR Shutter Time AUTO/FLK Lens 1.7mm Fisheye Lens (8MP) Lens Mount M12 Mount Day& Night EXTAUTOCOLOR BW dual IRcut filter IR Distance 20m(3pcs Array IR LEDs) S/N Ratio >50dB Video Output 1CH BNC, AHD(8MP) ) / TVI(8MP) / CVBS(960H) Synchronization Internal Synchronization Menu Auto Gain 0-15 Adjustable BLC BLC/OFF White Balance ATW/AWC-SET D-WDR ON/OFF Noise Reduction 2D/3D Private Mask N/A Motion Detection N/A Language Chinese/English/German/French/Italian/Spanish/Polish/Russian/Portuguese/Dutch/Turkish Function AWB, BLC , Mirror,D-WDR General Parameters Power Supply DC12V Operation Temperature -20 - +50 Operation Humidity Less than 95%RH(no condensation) Dimension 120×75mm Weight 0.33Kg
