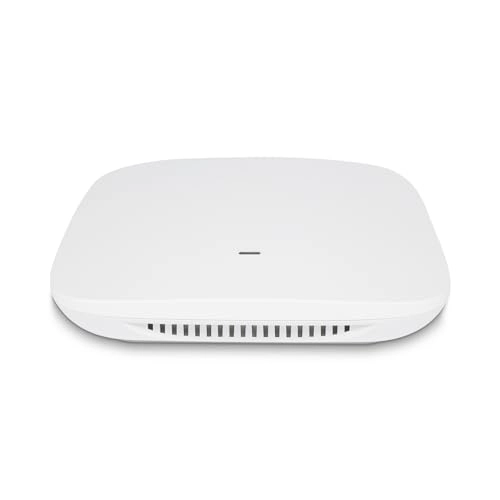

QSFPTEK QAP-603

Item: QAP-603 Weight: 420(g) Mounting method: Ceiling Dimensions (excluding accessories):168x168x32(mm) Ethernet port: 1 GE WAN port (POE supported) 1 GE LAN port Local power supply:POE input or 12V DC PoE power supply:802.3at Antenna type:Built-in omnidirectional Antenna gain: 2.4G: 3dBi 5G: 3dBi Operating frequencybands: 802.11 a/n/ac: 5.725GHz-5.850GHz ; 5.15-5.35GHz; 802.11 b/g/n/ac: 2.4GHz-2.483GHz Wi-Fi data rate: 2.4G: 2*2 11ax 573Mbps 5G: 2*2 11ax 1200Mbps Maximum total transmitting power (The actual transmission power is subject to relevant regulations.) 2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) Modulation technology: OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps,CCK@5.5/11Mbps MIMO-OFDM(11n):MCS 0-15 MIMO-OFDM(11ac):MCS 0-9 MIMO-OFDM(11ax):MCS 0-11MIMO-OFDM(11ax): MCS 0-11 Modulation mode: 11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps,DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Power adjustment: Automatic Reset:Supported Status LED:on / Blinking/ error Operating temperature/Storage temperature: -10ºC~40ºC/-40ºC~70ºC Operating humidity /Storage humidity: 10%~95% (non-condensing) Protection class: IP41 Power consumption:<15W MTBF:>250000H
