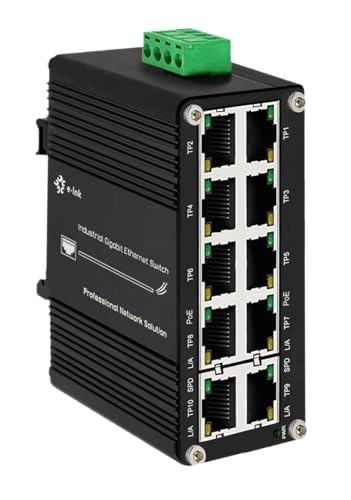

Steloproad LNK-IMC010GP 10-Ports

Overview:

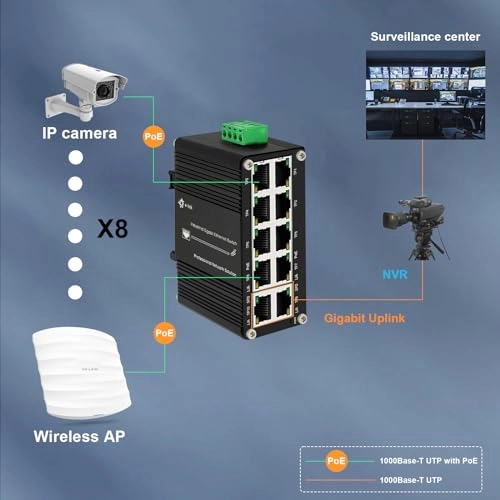

The LNK-IMC010GP is the mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch and is specially designed to be installed in a narrow environment. With eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two extra 10/100/1000BASE-T RJ45 copper interface for uplink connection. The power system of the LNK-IMC010GP supports 48~57V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 80 degrees C in a rugged IP40 metal housing.

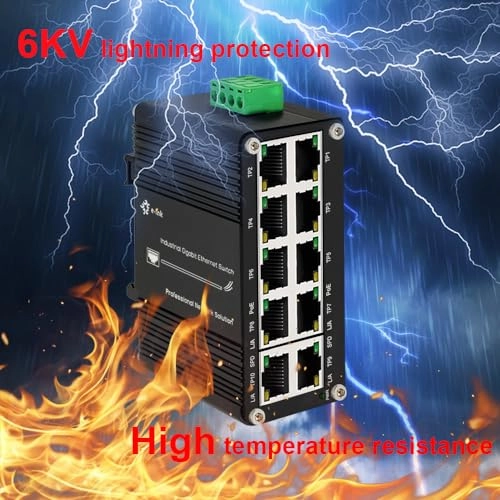

It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 80 degrees C, the LNK-IMC010GP can be placed in almost any difficult environment.

Features:

1. 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

2. Up to 8 ports of IEEE 802.3af/at devices powered

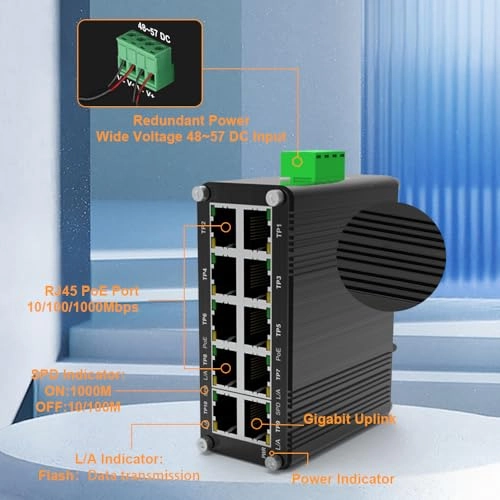

3. 48~57V DC redundant power with reverse polarity protection

4. Supports 802.3x Flow control

5. Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

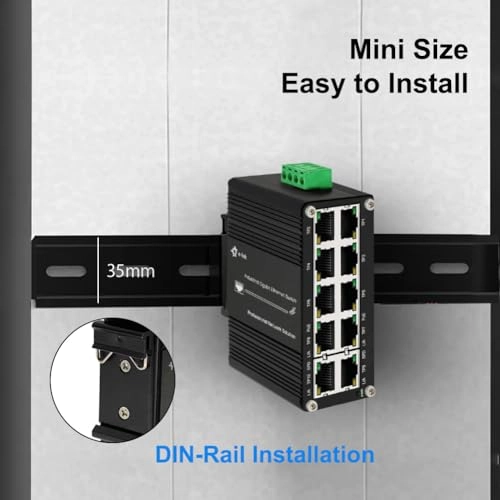

6. Supports DIN-Rail installation

7. Industry standard design, dustproof and close design IP40, rugged high-strength metal case

8. -40°C to 80°C (-40°F to 176°F) operating temperature

Specifications:

Packet Buffer: 2Mbits

Packet Length: 9216bytes

MAC Address Table: 4K entries

Switch Fabric: 20Gbps/non-blocking

Switch Throughput (packet per second): 14.88Mpps@64bytes

Connector: 10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports,8 ports with 802.3at PoE+ injector function (Port 1 to 8)

Port: RJ45

Power Pin Assignment: 4/5(+), 7/8(-)
