Steloproad LNK-GYM7408G P-SFP 12-ports

Overview

LNK-GYM7408G P-SFP is a new generation industrial managed switch with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.

Features

100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

Support Auto-MDIX, and full/half duplex self-negotiation mode

Support 10K bytes giant frame, compatible with various extension protocol

Support IEEE802.3az energy efficient Ethernet technology

Support IPv6 Protocol, DHCP RFC 1541, 1542

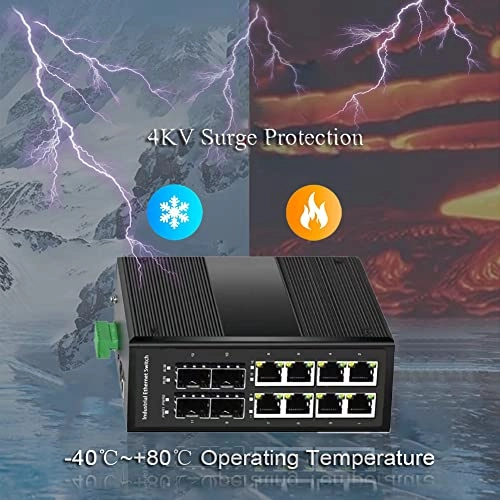

Electric 4KV surge protection, easy to use in outdoor environment

Power input polarity protection design, no worry about wrong operation

Support power reverse and overload protection

Specifications

Transmission Mode: Store and Forward (full/half duplex mode)

Ethernet Port: 8x10/100/1000Base-TX

Optical Port: 4x100/1000Base-FX SFP (Dual Mode, Auto Detection)

Packet Buffer: 4Mbits

Maximum Packet Length: Up to 10K Bytes

MAC Address Table: 8K

Power Access Mode: Phoenix terminal, DC Jack

Redundant Power Input: DC 48-57V / DC 5V

Power Consumption: Full-load<15W

Exchange Property Delay Time: <7μs

Backplane Bandwidth: 20Gbps

Packet Forwarding Rate: 148810 (64Byte)

Material: IP40 metal case

Dimensions: 138mm x 108mm x 49mm (L x W x H)

Item Weight: 650g

Operating Temperature: -40℃~80℃

Note: SFP module and power supply is not included, need to be purchased separately.
