Ingcool 7IP-CAPLCD - 7 Inches 1024x600

Introduction

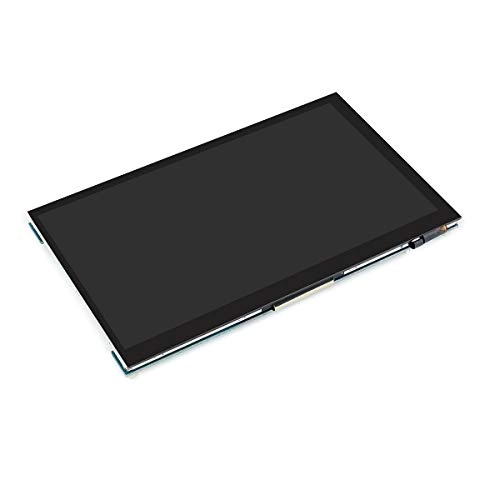

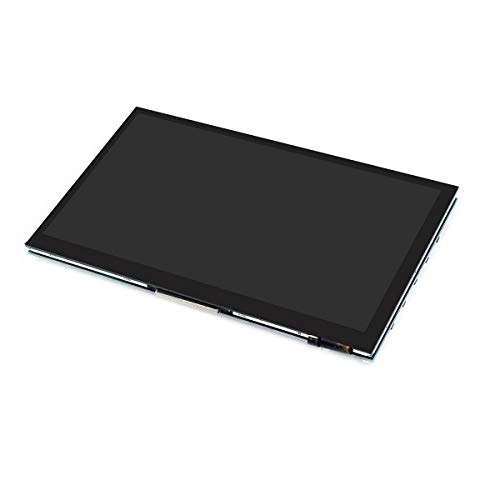

7IP-CAPLCD is an universal HDMI display, an IPS screen with 1024x600 resolution.It has a capacitive touch panel, supports up to 5-points touch. Supports Raspberry Pi, Jetson nano Developer Kit, can be used as a monitor of desktop PC.

Advantage

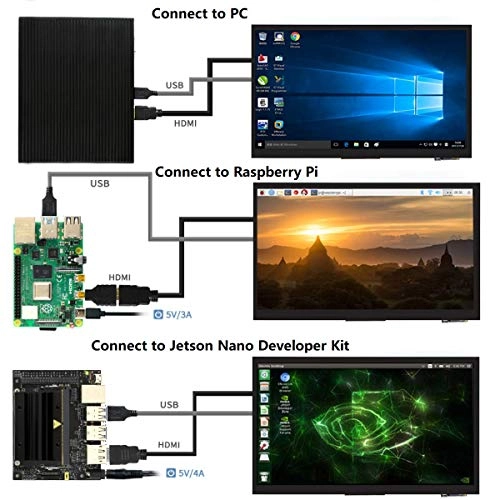

1.Connect to PC

The display supports Windows 7/8/8.1/10 when working with Windows PC, supports 5-points and it is driver free.

【Notices】

If the screen doesn't display after connecting, please check if you connect all the cables properly, replug them and test it again. Sometimes you may need to restart PC if the PC doesn't support hot-plug.

The touch panel can only control the main display if multiple screens are connected to PC at the same time. In this case, we recommend you to set the 7IP CAPLCD as the main display.

The display may flicker because of the low voltage problem of USB port, if you face such a problem, you can connect external 5V power adapter to display.

2.Connect to Raspberry Pi

The display supports Raspbian/Ubuntu/Kali/Retropie and WIN 10 IoT. Only single-point touch is supported in most of OS, multiple touches may be supported in some software, max 5-points.

Raspberry Pi doesn't support hot-plug and auto-recognized the resolution, you need to configure the resolution manually, otherwise, the display cannot work normally.

3.Connect to Jetson Nano Developer Kit

The display will be auto-recognized by Jetson Nano Developer Kit, it is plug and play.

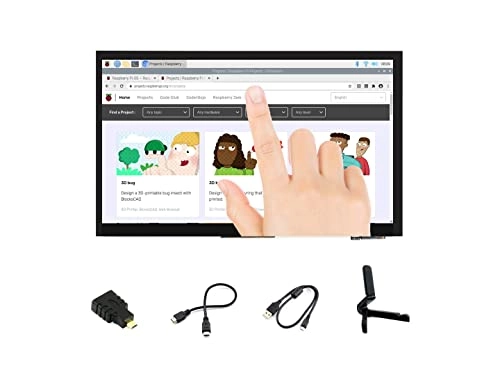

Package Content

7IP-CAPLCD

HDMI cable x1

HDMI to Micro HDMI Adapter x1

USB type A plug to micro B plug cable x1

Trangle bracket x 1

Development Resources

http://www.ingcool.com/wiki/7IP-CAPLCD?Amazon
