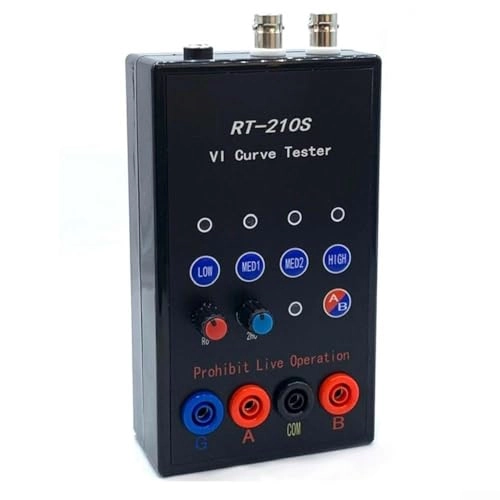

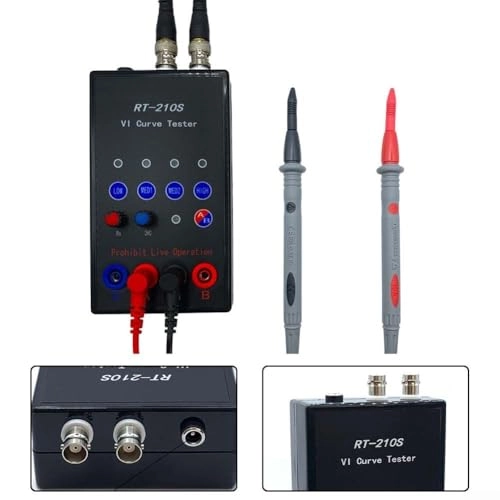

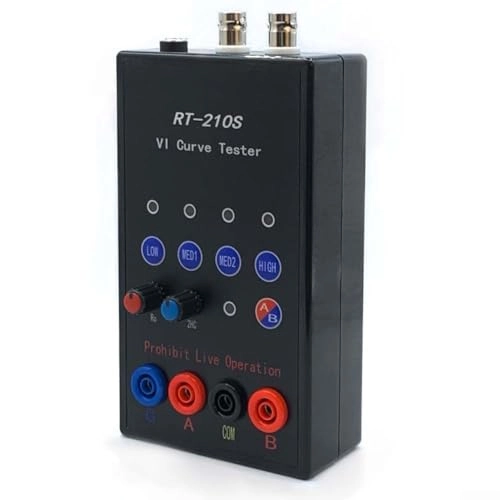

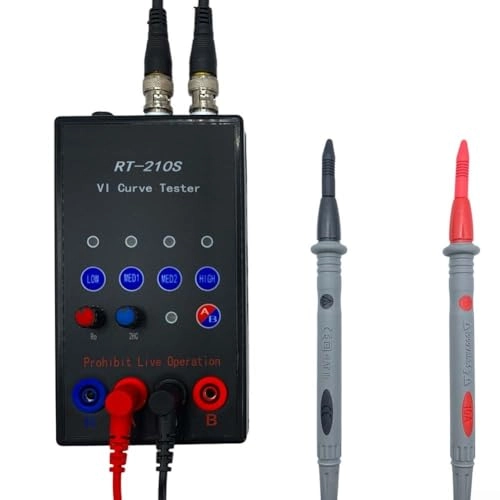

Zoegneer 210S VI Curve Tester

Advantages:

1. High safety: for ASA testing does not require the circuit board to be powered on; for ASA testing does not involve circuit principles and does not require the circuit to be in working condition

2. Strong adaptability: for ASA testing does not involve the functions of components on the circuit board, so no matter what type of components the circuit is composed of, including digital, analog, mixed digital and analog, ., it can be tested.

Features:

1. Support dual-channel signal input

2. Support 4 adjustable frequency levels, 4 adjustable internal resistance levels

3. Adjustable B channel position

4. Support A channel or A+B channel display

5. Support trigger signal output (5V)

6. Use DC 5.5*2.1 interface, need to use DC 24V 1A power adapter to power it (need to be prepared by the user)

Specifications:

Part name: 210S VI curve tester

Material: abs

Color: black

Voltage: AC2.7V

Internal resistance: 56R, 220R 1K 20K adjustable

Frequency: 40Hz, 350Hz, 2kHz, 14Hz adjustable

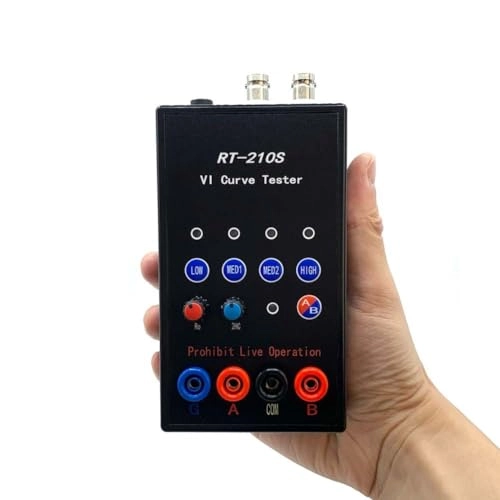

Size: 140x80x40

Weight: host 270g

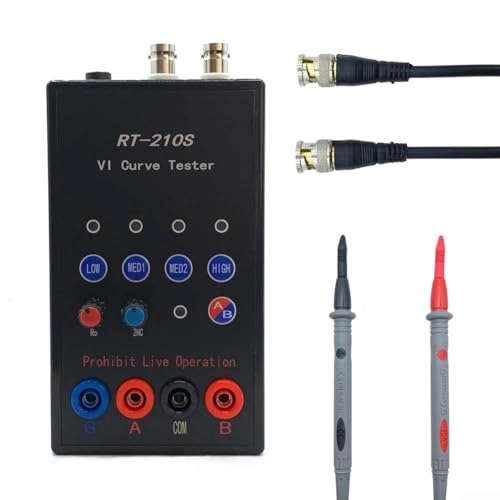

Package content:

1x host

1 pair of test leads

1 pair of test clips
