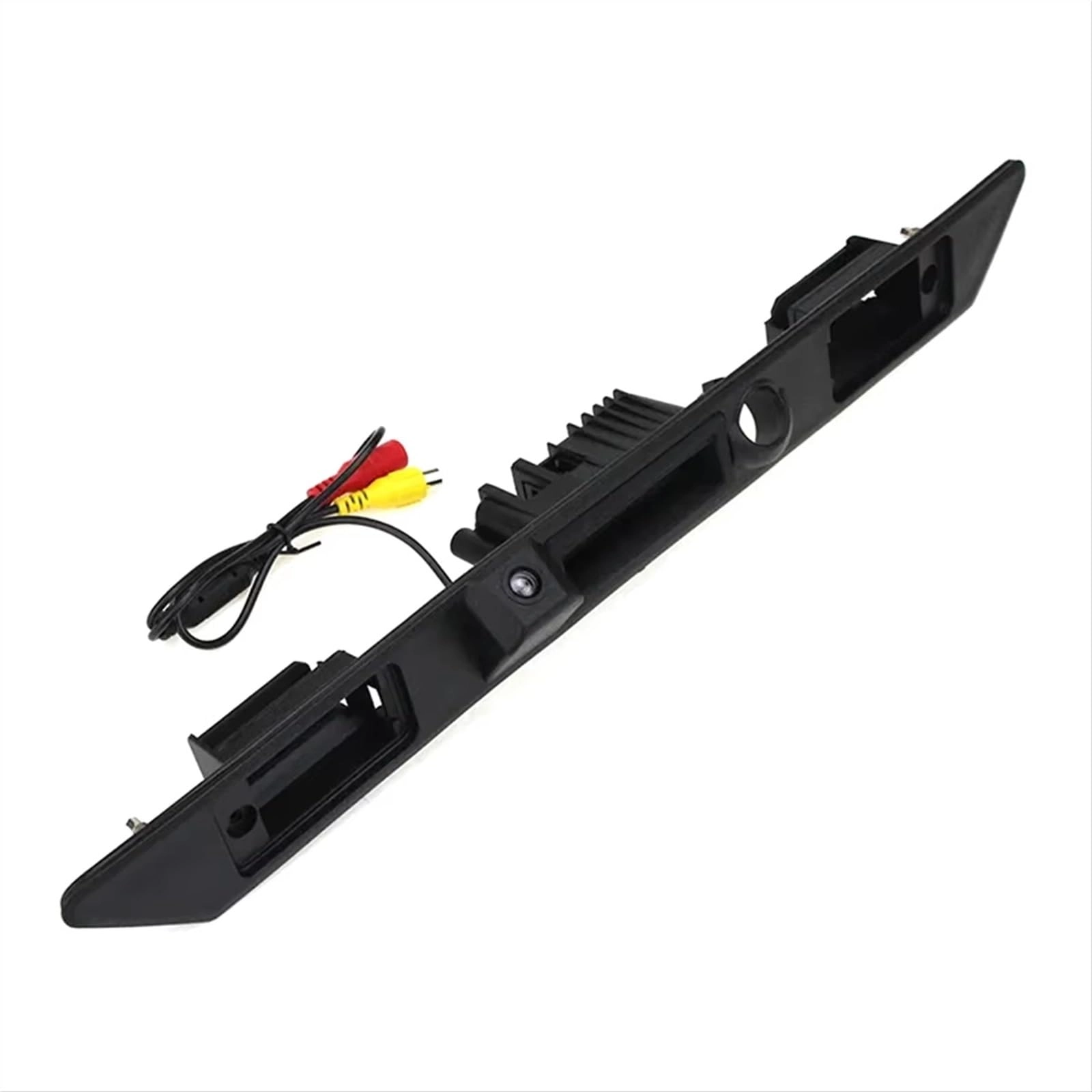

Zhaomystic Trunk Handle Rear View Camera - Night vision AHD CVBS 680x480

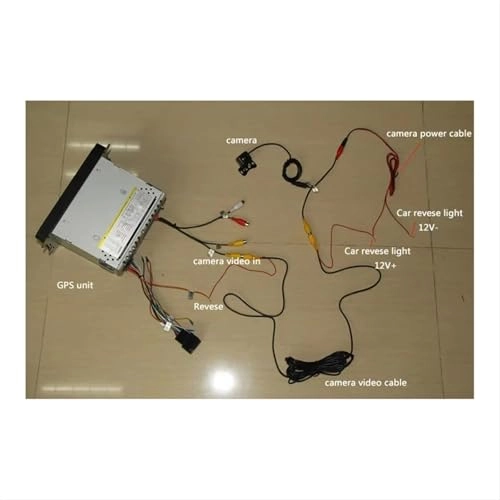

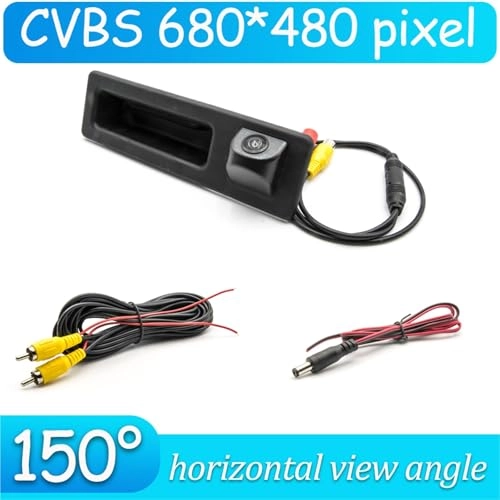

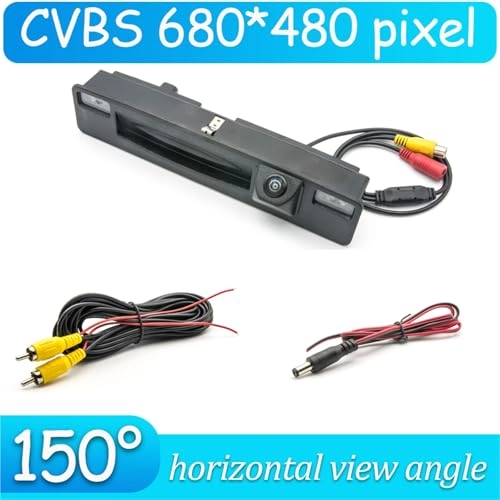

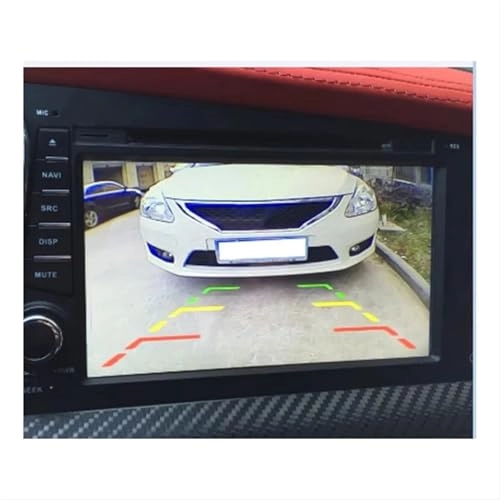

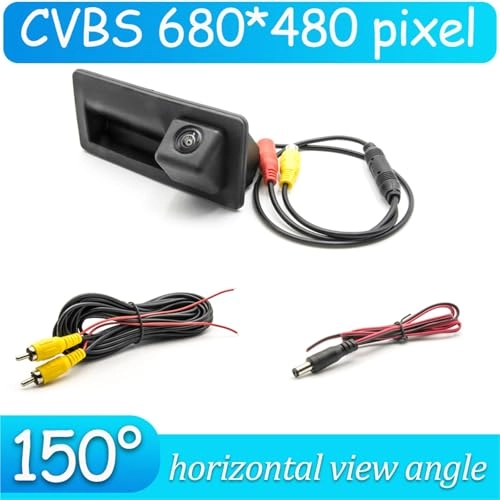

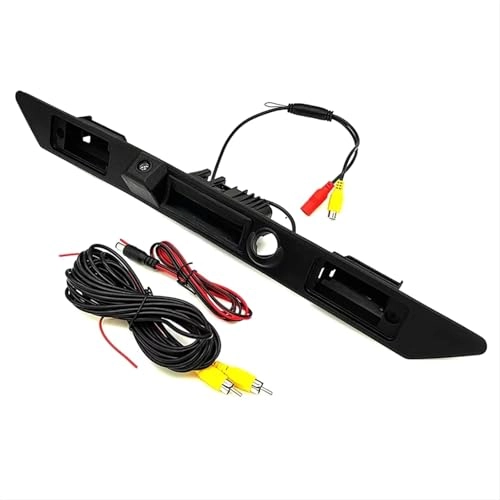

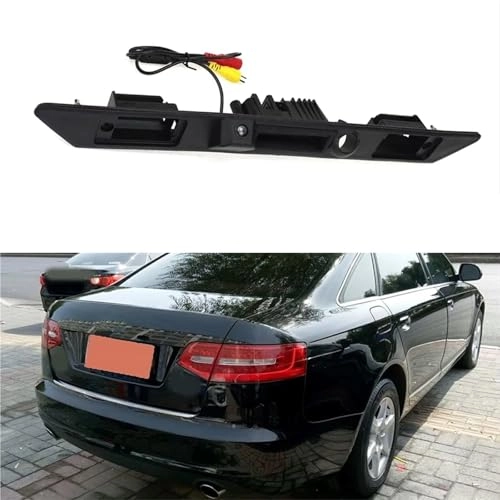

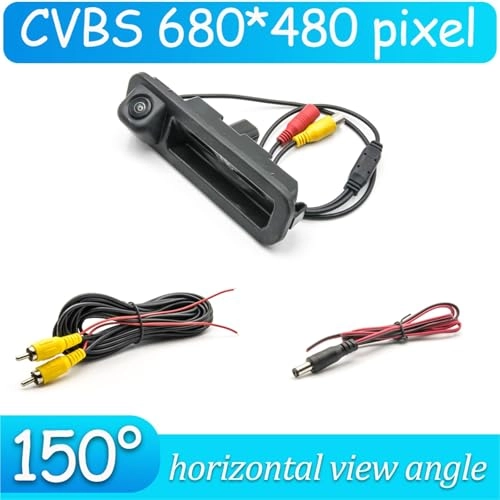

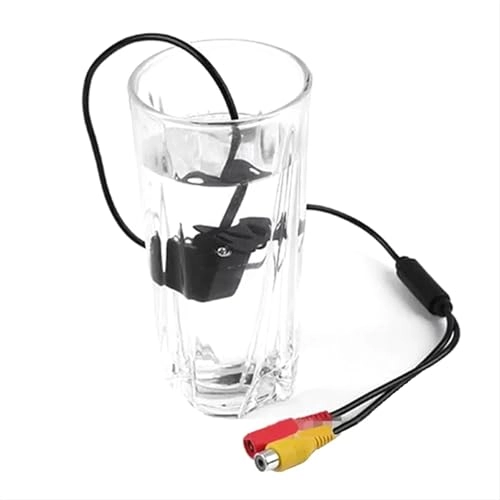

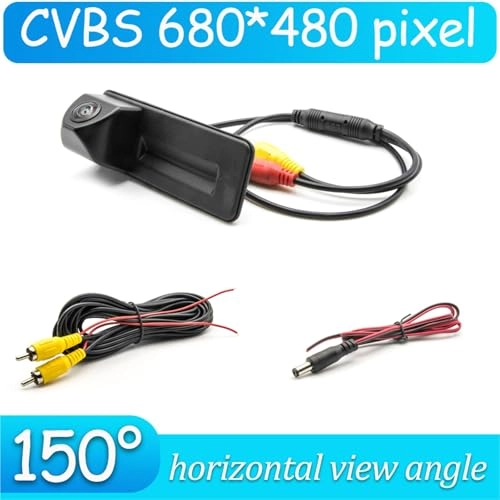

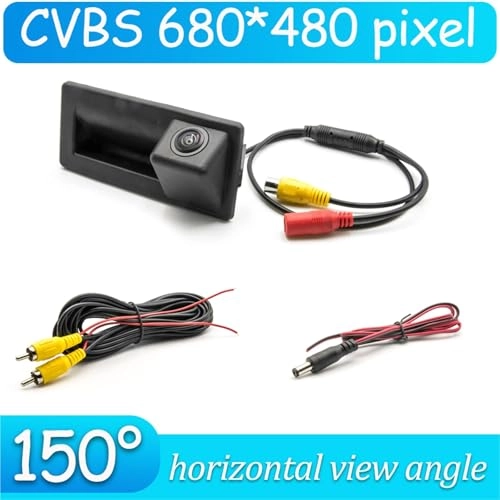

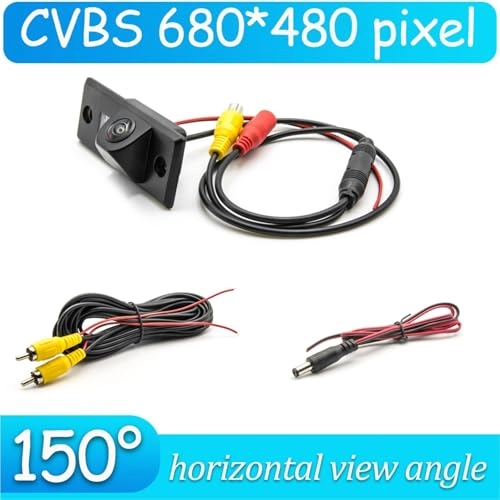

Installation: For VW For Touareg 7L 2002~2010 Description: This camera is equipped with standard connector, suitable for after market parking unit and monitor, make sure it has the camera connector. Important Note: There are two colors for the camera cable, the one you will receive may be red or black, the product images we show on the website are only black. Specification: Main camera: 120/150 degree CVBS camera or 135/170 degree AHD camera Camera Lens: 6-layer glass lens Image Resolution: 680*480 Pixels for CVBS Camera and 720P for AHD Camera Parking Guard: with parking line. Operating voltage: DC12V Waterproof Grade: IP67 Special function: automatic white, AGC, backlight compensation. Inside the camera is filled with waterproof glue. Support night vision, the camera is equipped with 2D DNR function. 4 kinds of camera to choose from: Here we prepare 4 kinds of camera: 120 degree and 150 degree CVBS camera, 135 degree and 170 degree AHD camera, for AHD camera, support to switch to CVBS video signal, if your car monitor only supports CVBS and you want to get a good picture, you can choose the AHD camera. For option A and option B, they are CVBS video signals, the horizontal viewing angle of option A is 120 degrees and option B is 150 degrees. For option C and D option, the camera supports two types of AHD and CVBS video signal, and the C viewing angle option is 135 degrees, and option D is 170 degrees. Compared with option A and option B, the cable for C and D options uses a digital voltage conversion process, so during prolonged use of the camera, the camera cable will not overheat. Supports AHD and CVBS two types of video signal: 1.The small white wire is for controlling the video signal, if you cut the small white wire and restart the camera, the video signal will switch to AHD format. 2.The small green wire is for controlling the parking line, it could turn on or off the parking line. Since the same car model in different countries may have some differences, please check the camera size and carefully compare the installation of your car to avoid mistakes.
