ZhanHongXiang AHD 1080P Camera - 4x + 7 Inch Quad Split Monitor - 4CH IPS

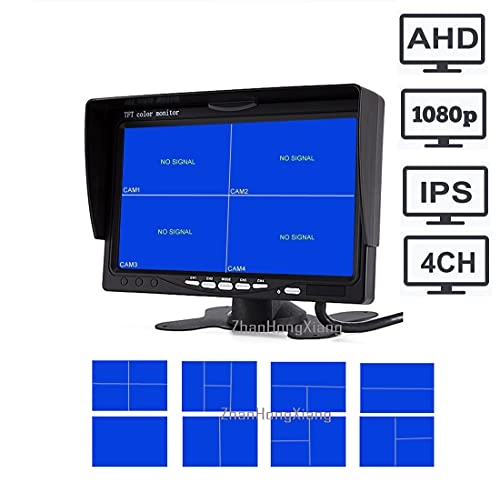

This is a 7 Inch 4 CH Camera Video Quad Split TFT LCD Color IPS Monitor. It has the 4 CH video input with 4 Pin Connector And it has the video quad processing function. it can be set the Large video with CH1, CH2, CH3, CH4 or 2/3/4 split video Applicable to variety of Vehicles: car, truck, RV, mini-van etc，Can help avoid incidents and accidents abrasion well Display Size:7 Inch AHD Screen Suport AHD 1080P Camera only Video:4 channels input,Quad Split Screen Display Our Split monitor can display 4 video at same time Full images/2 images/3 images/4 images adjustable Video:4 channels input ,Quad Split Screen Display Power requirement :DC 12V-24V Consumption:8W Reverse Grid Lines Can be turn on or off with CH2 Image Can be adjust for mirror or none Mirror Image Support Flip with Upside Down Suitable for Front view/ rear view/side view So you can use each camera as front view or rear view camera system with the monitor at your enjoy 360°clearly View to avoid blind spot Net Weight: Approx. 1000g Lauguage:English,Chinese Resolution: 1024X600 pixels Automatic switching with trigger wire

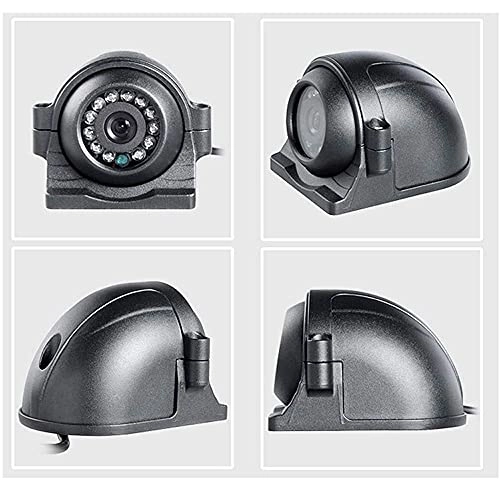

HD 1080P Vehicle Backup Side view Camera

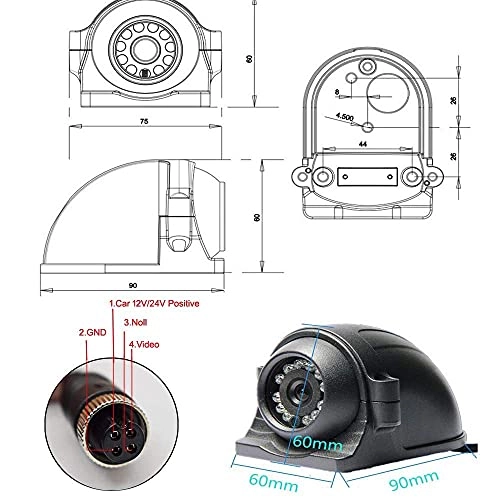

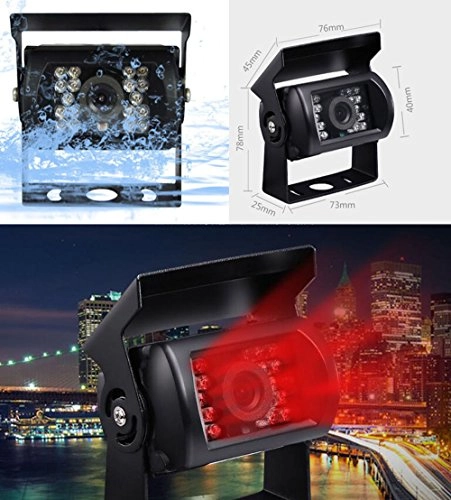

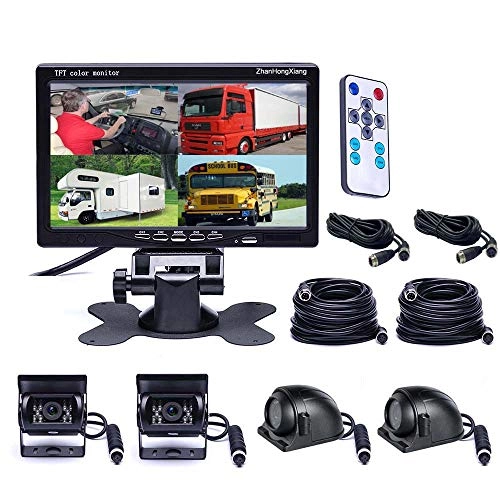

AHD 1080P IR Backup Camera Suport AHD Monitor only 100% Not Wash Out AHD 1080P Sensor Mirror image View angle:140°for 18 led cam,120°for 12 led cam Number of pixels:2.0 MP Camera(1920*1080P) Minimum illumination:0 LUX Night vision: 12/18 LED IR Video Output:4Pin Aviation Connector work Temperature:-20°C~+60°C Power Requirement: DC 12V-24V Waterproof:IP 69 Package included: 1 x 7 Inch AHD IPS Quad Split Monitor 1 x Monitor Harness Cable 1 x Bracket 1 x Sunshade 1 x Remote Controller 2 x AHD 1080P 18 LED Backup Front / Rear view camera 2 x AHD 1080P 12 LED Backup Side view camera 1 x 10m/20m 4 Pin cable 2 x 5m 4 pin cable
