Feature:
* 18 IR rear view camera, high definition image.

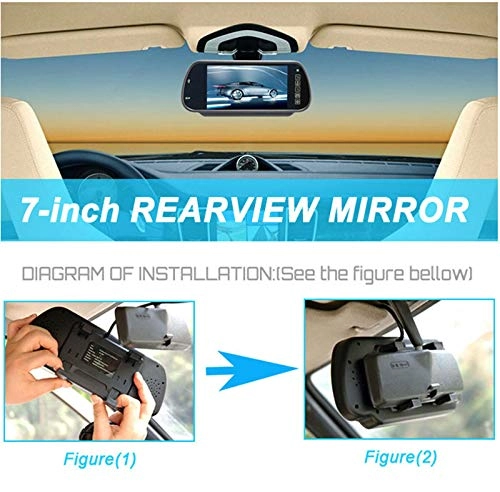

7" TFT LCD Color Rearview Mirror Monitor
* Switch the display mode by remote control.
2K video input, full color display Automatic white balance.
* Automatic rear view function for reversing.

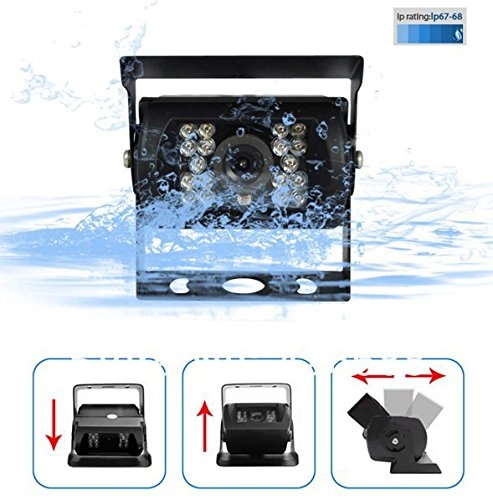

* 100% waterproof IR camera with 120° wide angle.
* 18 infrared lamps, night vision up to 10-15 meters.
* Can easily adjust the installation angle of the camera in multiple levels.

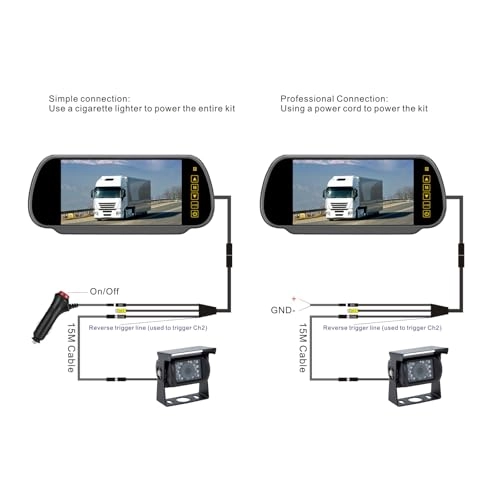

*4 pin connection cable solution deals with both power and singal transmission. No power cable is required to connect cameras. Special thick hard wire can shield vehicle circuit interference better than normal AV cables. Can be connected directly at the same time, multiple cables work together without other connector heads.
Specification:
Camera:
* Scan system PAL: 625 lines 50 field / NTSC: 525 lines 60 field.
* Lens: 2.5mm (120°)
* Number of pixels: 500(H) x 582(V) 510(H) x 492(V).
* Horizontal resolution: 420 TV lines
* Scan frequency: 50Hz ~ 60Hz.
* S/N Ratio: ≥48dB (AGC OFF)
* Minimum illumination: 0 LUX
* Backlight Compensation: Automatic
* White balance: automatic tracking.
* Automatic gain control: automatic
Night Vision: Yes
* Video Output: 1.0Vp-p.1.5ωRCA Male
* Synchronization system: International synchronization.
Working temperature: -20°C to +60°C.
* Power supply: DC 12V-24V
* Focal length: 30mm to infinity
* Weight: approx. 310g
Monitor:
Display size: 7 inches.
* Resolution 800 (W) x RGB x 480 (H)
* Power requirement DC 12V-24V
* Consumption 6W
* Video 2K video input; V1/V2 switch
* Net weight: approx. 743g

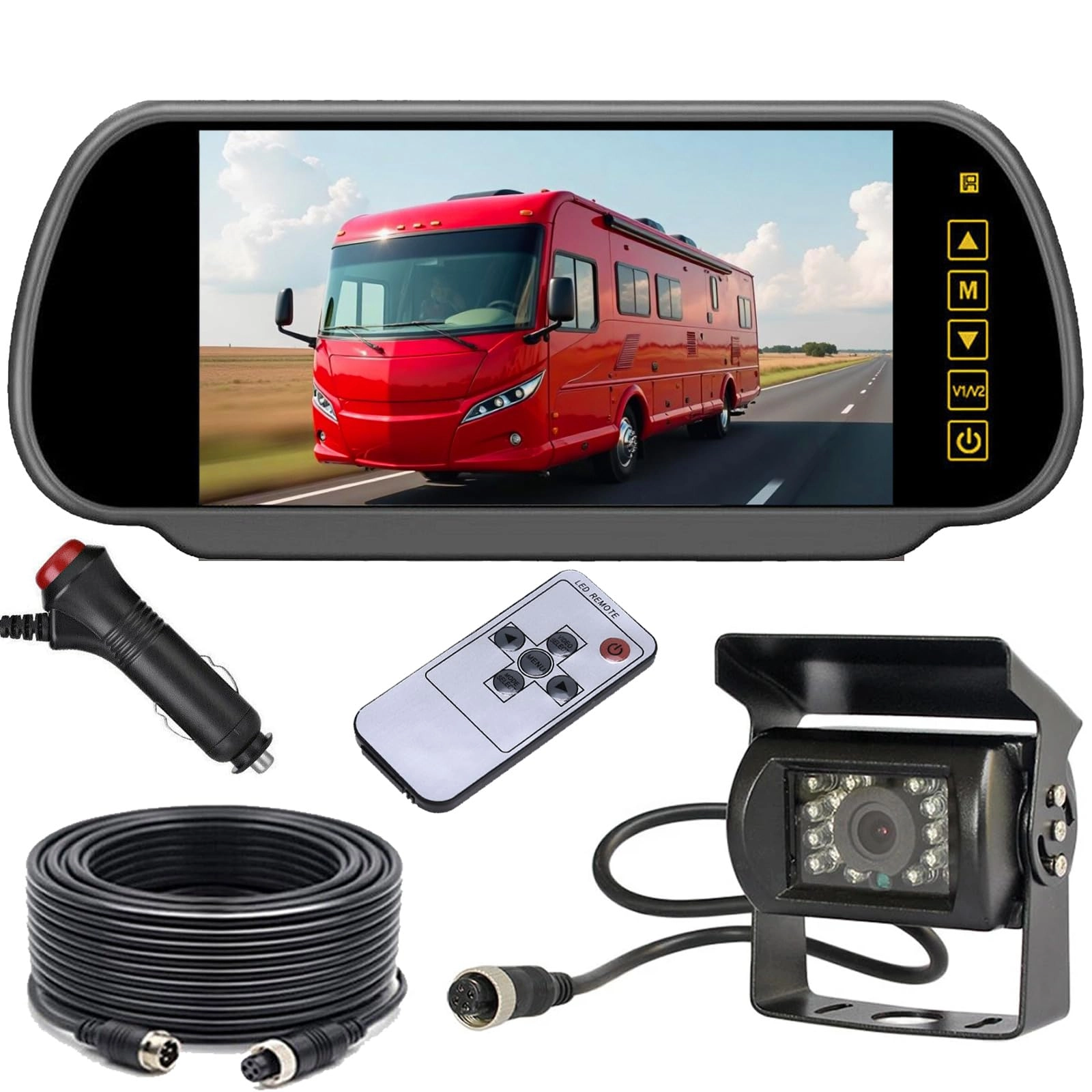

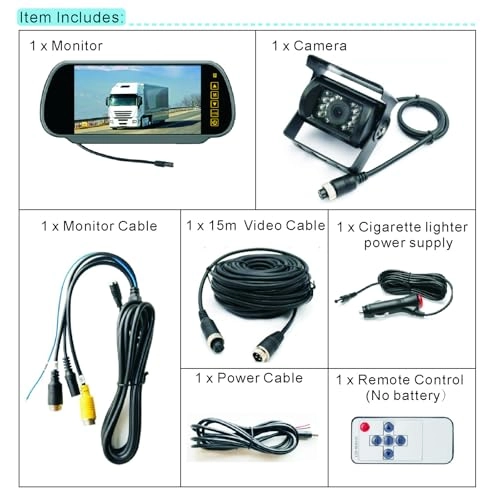

Package contents:
1 x 4 Pin 12V-24V 7" LCD Rearview Mirror Monitor

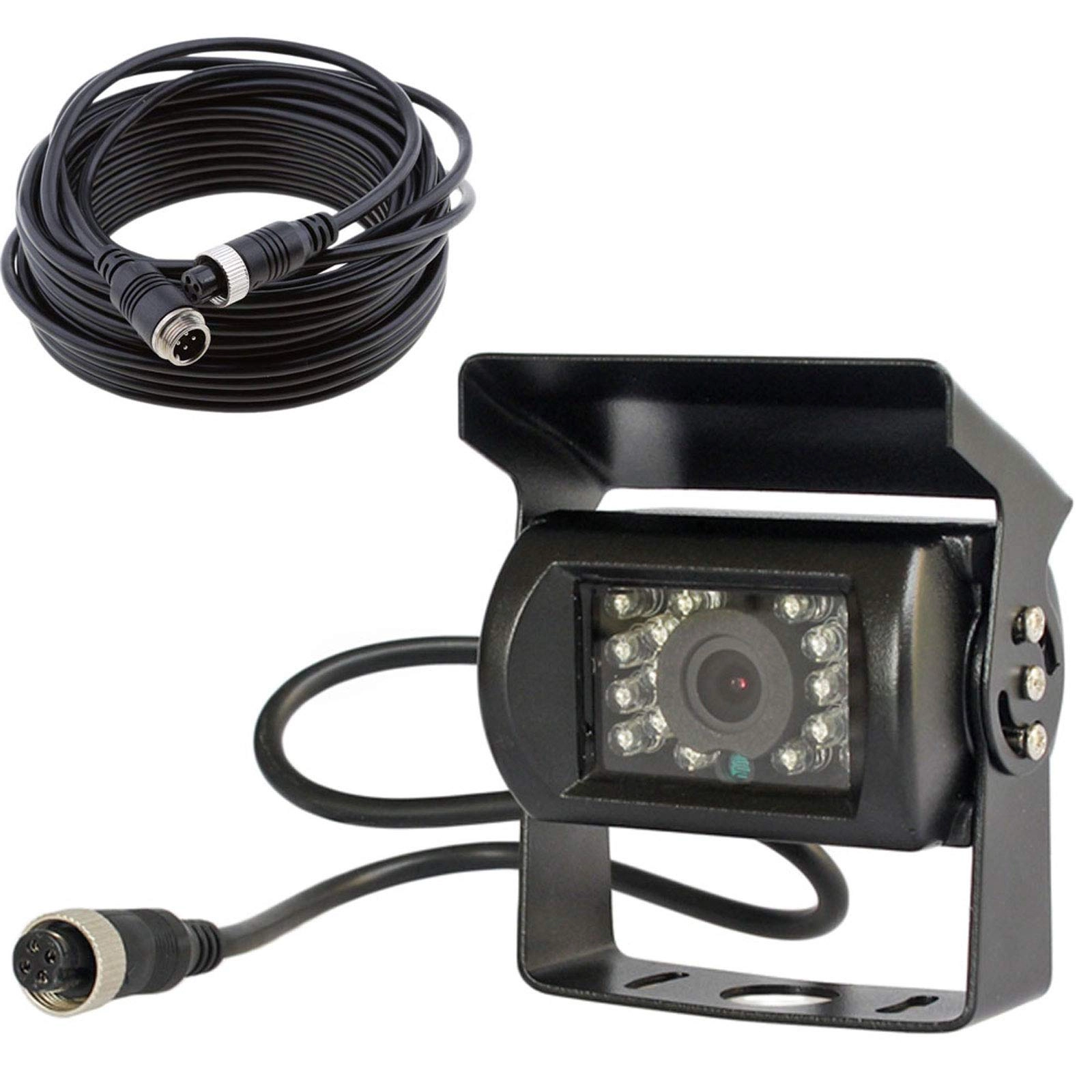

1 x 4 Pin 18 LED Car Rear View Camera

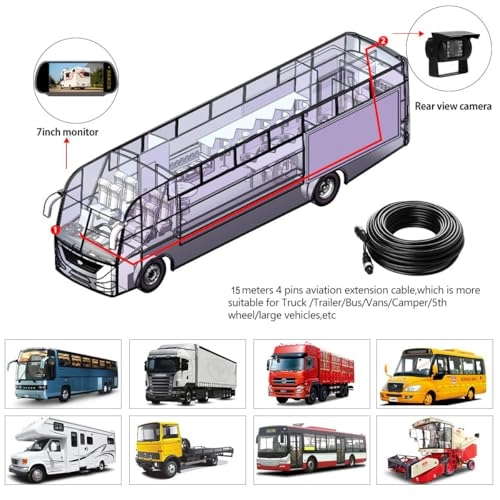

1 x 15 MAviation Connector Video Cable
1 x Cigarette Lighter Power
1 x Power Cord
1 x manual (English language not guaranteed). English language not guaranteed).
