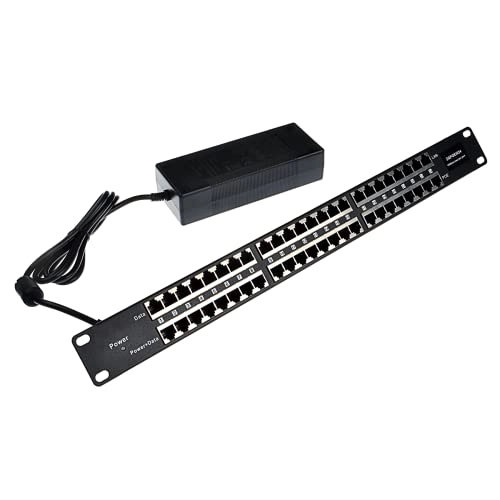

What is in the box? - POE-24-1U PoE injector and a 24-volt 120-watt power supply
PoE Injector with power supply options: POE-24-24V120W, POE-24-48V120W, POE-24-56V60W, POE-24-56V120W
24 Port PoE injector options:
- Active: GAT-24-1U, GAT-24-56V120W, GAT-24-56V240W
-Passive:
--- 100Mbit/s Data transmission: POE-24-1U, POE-24-24V120W, POE-24-48V120W, POE-24-56V60W, POE-24-56V120W
--- 1000Mbit/s Data transmission: GPOE-24B-1U, GPOE-24B-24V240W, GPOE-24B-48V240W
The Input of the injector:
a) From 48-volt to 56-volt via 2.1mm x 5.5mm input.
b) From 60-watt to 240-watt.
c) Additional Phoenix DC connector - 3.5 mm model 1844236 - Pin 1/2 (minus) 3/4 (plus)
The output of the injector: 802.3at Mode A Pin 1/2(-), 3/6(+)
Product Size: 1U high standard rack mount ( 1.75 x 19 x 2 inches).
LED indicator:
Dual power supply inputs with relay failover/ load balancing.
-- When the input is 48-volt, the LED light is green.
-- When the input is 56-volt, the LED light is amber.
-- There are 24 LEDs for each port, when the PoE device is connected, the LED light is Blue.
For more PoE devices please contact our support for details, there are 1/4/8/12/16 port PoE injector, PoE splitter, PoE tester, PoE detector, PoE switch, and PoE custom power supply available!
