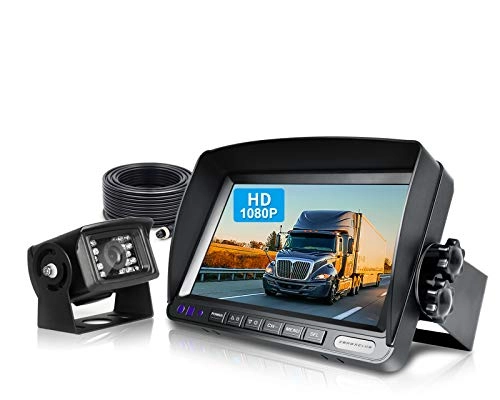

ZEROXCLUB Rear View Camera - Night Vision 1920x1080 + LCD Monitor - 7-inch 1080P

Bigger than other backup camera kits' monitors, our 7 inches LCD rear view monitor connects one backup camera by a 50 ft video cable

Versatile Transmitter – You can install it anywhere near the reversing light. Suitable for most cars,RVs,vans,camping cars, trucks even trailers.

Full HD 1080P Colored Night Vision displayed in 7 inches screen must give you more confidence and safety at night driving!

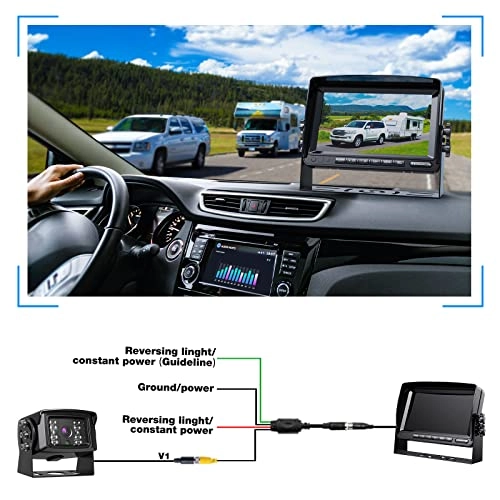

Installation

1.Connect the red wire to running light or reversing light to get power.

2.Connect the black wire to the ground or sheet metal.

3.If you want display shows a guide line when reversing, connect the green wire to reversing light.

Technical Specification

Screen size:7-inches

Power: DC12V-24V

Lens Viewing Angle: 149 Degrees

Resolution:1920x1080 - RGB

Operating Temperature: -25 ~60 degrees centigrade

Processor: Digital FHD image processor with CCD

Video output :RCA connector, 1.0vp-p, 75ohm

Waterproof IP Rate: IP69K

Operating Temperature :-25 ~ 60 degrees centigrade

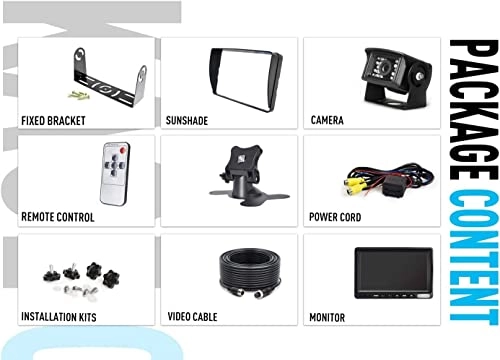

Package Includes:

1 x 7-inch LCD Monitor

1 x Rear view Camera

1 x 50 ft Rideo cable

2 x Monitor Fixed bracket

2 x Camera Fixed Bracket kit (for Mount on Back or Top

1 x Sunshade

1 x User Manual
