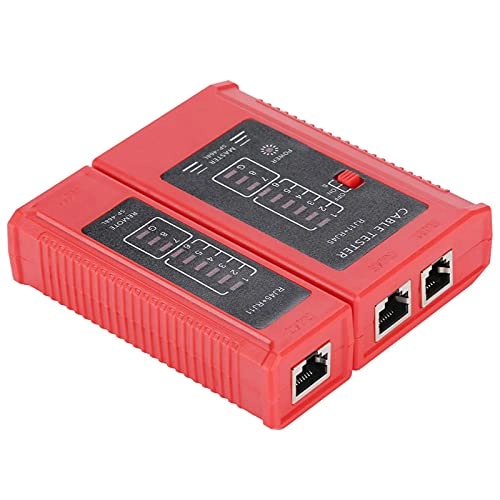

YUMILI WZ-468 - RJ45 RJ11 automatic

Specification:

Model No.: WZ-468

Power supply: 9V laminated battery (not included)

Size: 9.7 x 10.3 x 2.8 cm / 3.8 x 4.1 x 1.1 inches.

Instructions:

1. Test corresponding 1, 2, 3, 4, 5, 6, 7, 8 and G double stranded wires, and tell users which exact line is in the wrong circuit

2. Turn on "S" is fast test speed, and OFF is Turn off the tester

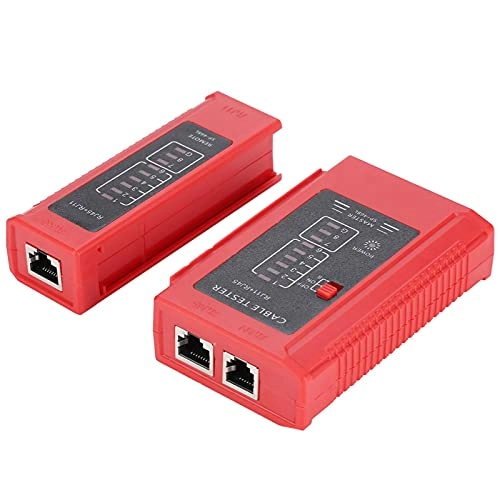

3.Turn on the tester, insert the line connector into the main tester and the remote control.Then the indicator lights(1 to 8 and G) will flash

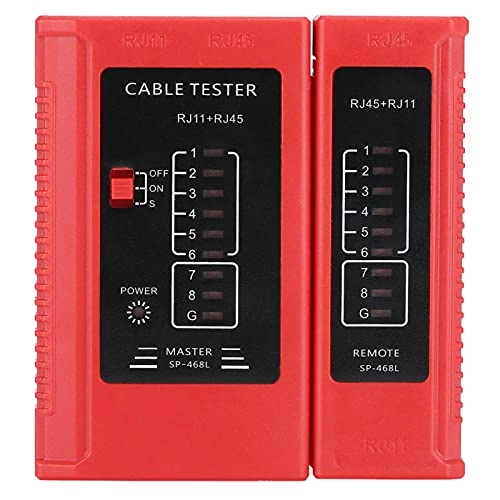

Main Tester: 1-2-3-4-5-6-7-8-G

Remote Control Tester: 1-2-3-4-5-6-7-8-G (RJ45); 1-2-3-4-5-6 ------ (RJ12) 1-2-3-4 ---------- (RJ11)

If the connection is not normal, it will be displayed as follows:

1.When there is a network cable as NO. Wire 3 is in open circuit, main tester and remote test end lights NO.

2.When multiple wires are in open circuit, several wires are not on. When less than two wires are connected, the lights are not on.

3.When the two ends of the network cables are disordered, for example, cables 2 and 4 are messy, it is shown below:

Unchanged Main Tester: 1-2-3-4-5-6-7-8-G

Remote Tester: 1-4-3-2-5-6-7-8-G

4. When there are two wires in short circuit, the main tester does not turn on, while the remote test end shows that the two short-circuit line lights are dimmed. If there are more than 3 (including 3) short circuits, all multi-wire lights Short circuit numbers will not light up

Package List:

1 x Network Cable Tester
