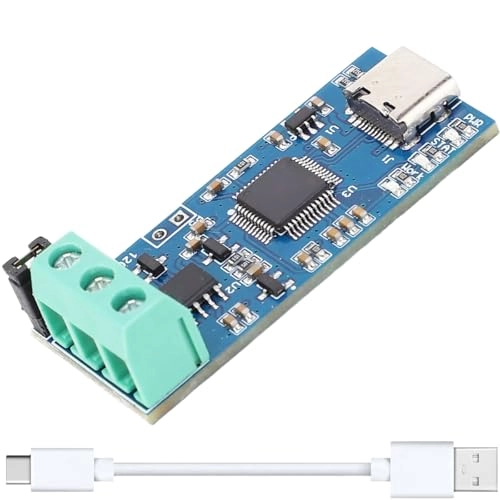

YOUMILE USB to CAN Module - Type C

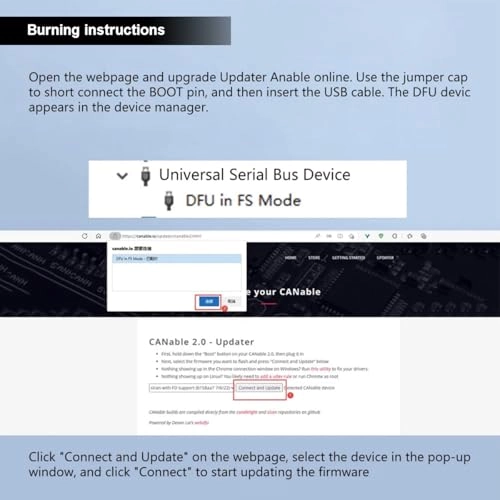

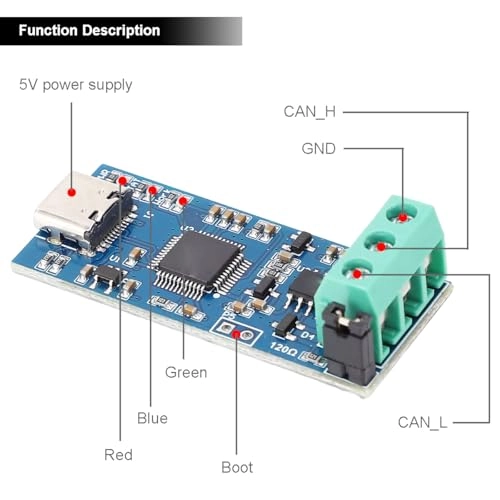

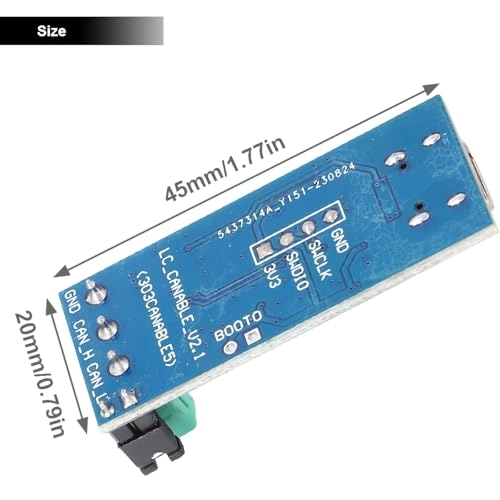

Features: 1. Support open source host computer CANGAROOCAN protocol analysis software 2. Support CAN 2.0A, CAN 2.0B, CAN-FD protocols, faster speed. 3. Three-color LED status indication 4. Input voltage: 5V (Type-C power supply) 5. Product size 45 mm*20 mm Specification: Item Type: USB to CAN Module Power Interface: Type C Supported Protocols: CAN 2.0A, CAN 2.0B, CAN-FD Protocol How to Use: 1. Type C Female Connector: Connect to the computer via the USB cable. 2. BOOT Start Up: Short circuit and insert the TYPE C connector to enter BOOT mode, allowing for firmware re flashing. 3. Terminal Resistor Options: Insert the jumper to indicate connection to the 120Ω terminal resistor. 4. Output Interface: Connect CAN_H and CAN_L to the CAN bus, GND connection is optional. Package includes: 1 x USB to CAN module 1 x USB to Type-c module
