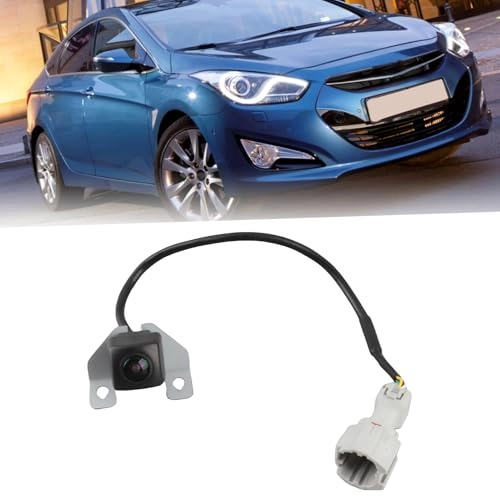

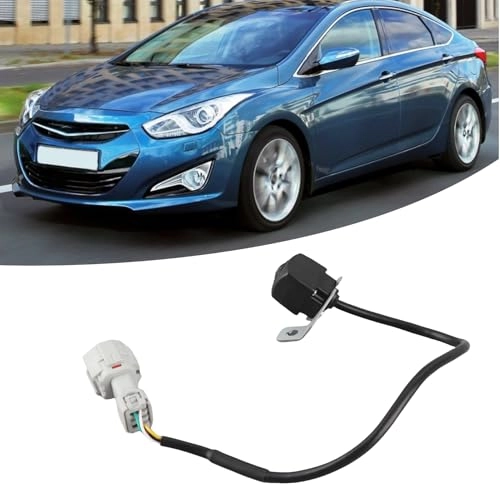

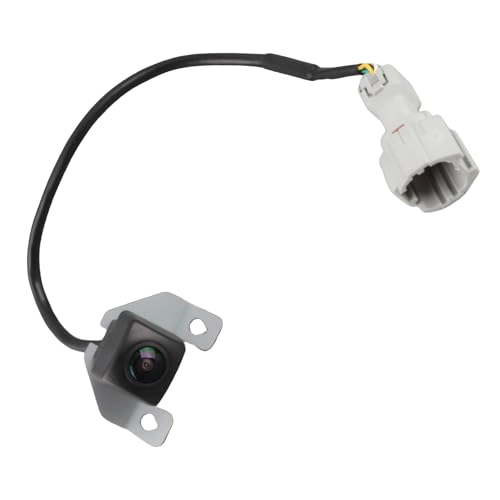

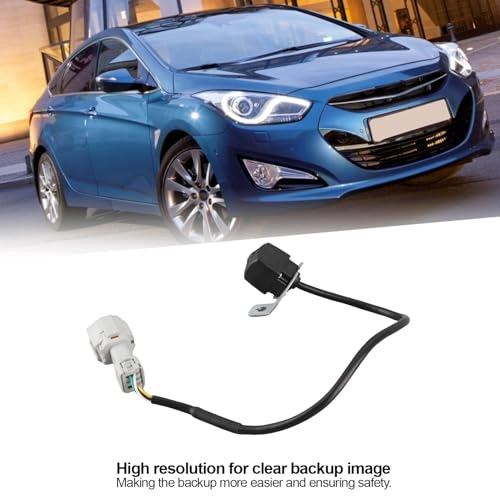

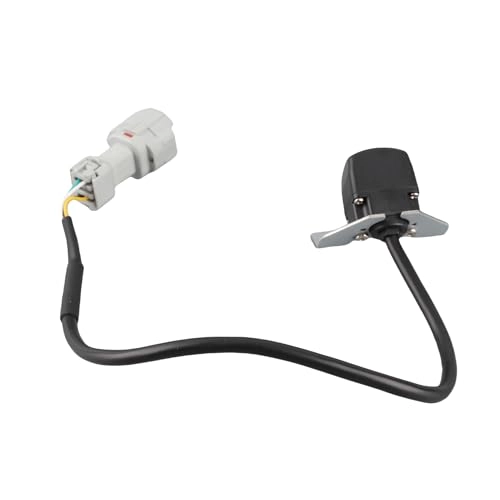

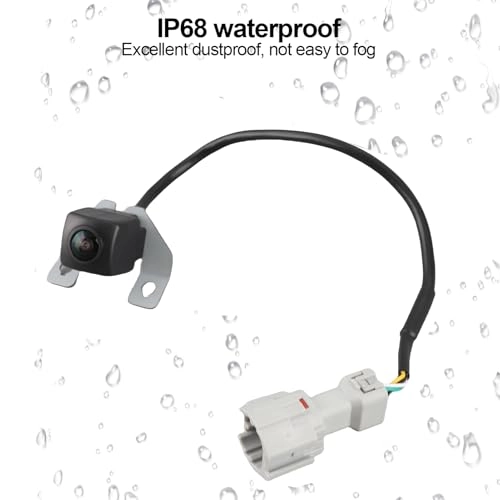

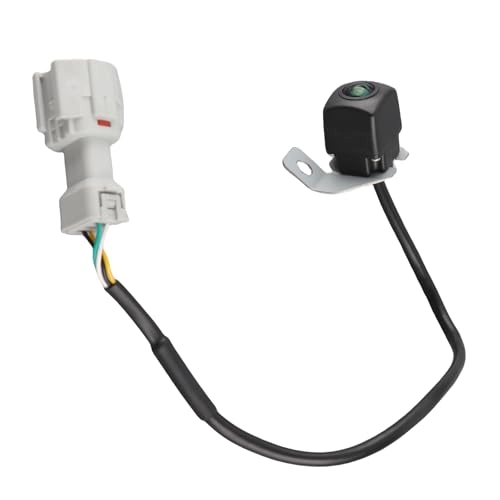

Ymiko Rear View Backup Camera

How to Use: Plug and play. Specification: Item Type: Backup Camera Material: ABS Image Sensor: 1/6 3063Effective Pixels: 648x488 The default is NTSC system, rearview with reference line Horizontal Resolution: 480 TV lines Wide Angle: 170 degree Horizontal Angle: 135 degree Sensing Area: Approx. 3.8mm x 2.9mm/0.15in x 0.11in Shutter Speed: 1-1/12000 Gamma: 0.45 Minimum Illumination: 0.01 Lux/F=1.2(0 Lux with IR on) Video Output: 1.0 VP-P, 75 OHM connector output, other connector optional Power Consumption: 60mA Power Supply: DC12V Operating Temperature: -20℃ - 75℃，RH 95% Maximum Storage temperature: -40°C- 80°C RH95%Maximum Waterproof Rate:IP67 Photosensitive Mode: Automatic photosensitive Night Vision Color Camera Package List: 1 x Backup Camera2 x Wire Harness 1 x Bracket 1 x Washer 2 x Screw 1 x User Manual 1 x Accessory
