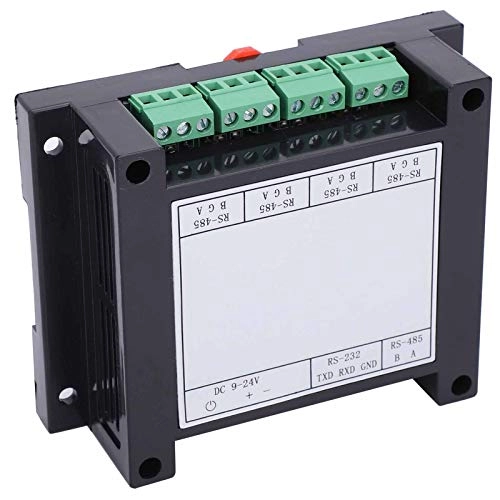

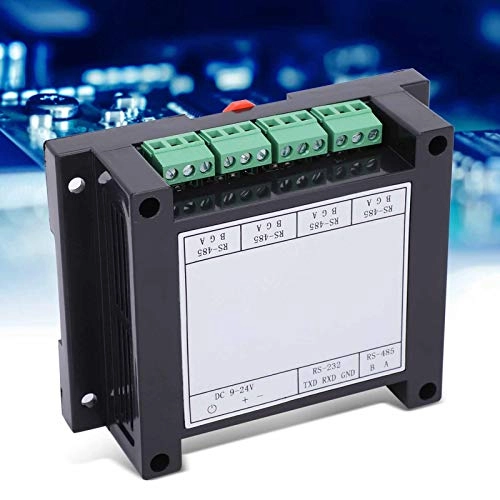

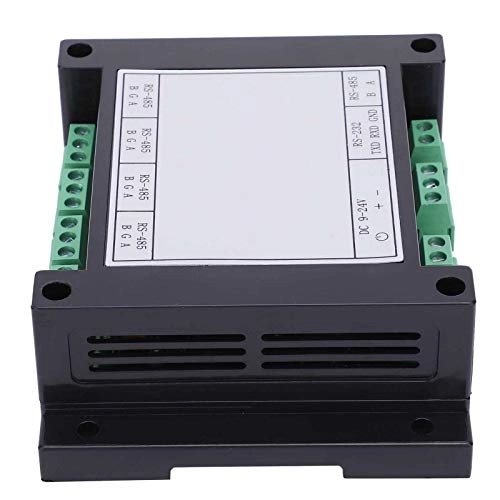

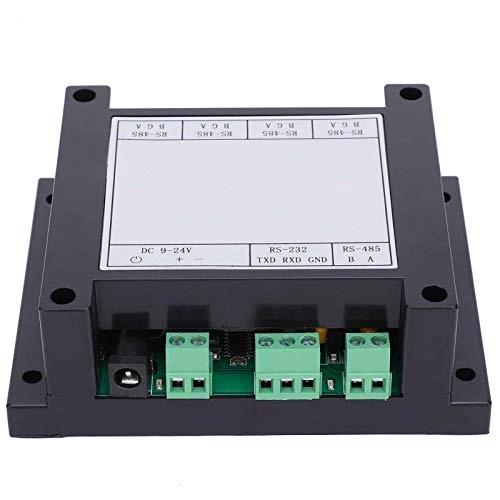

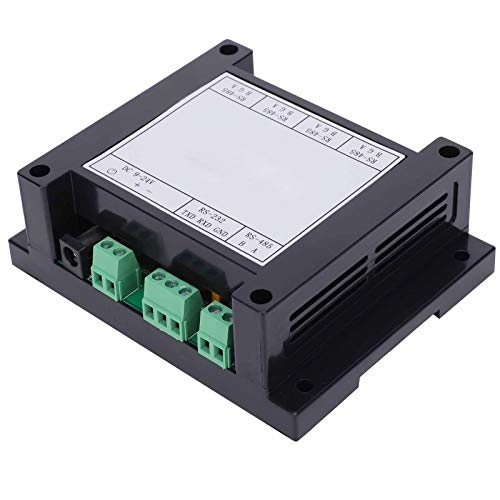

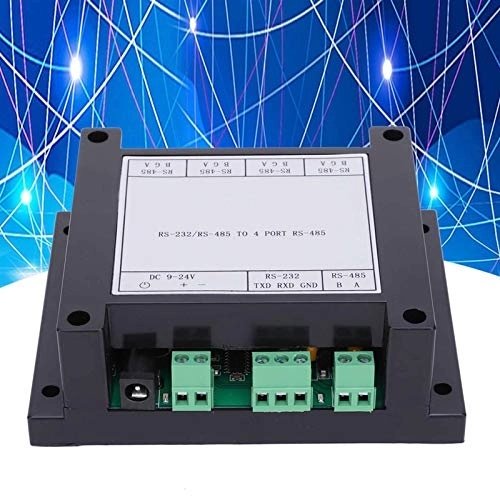

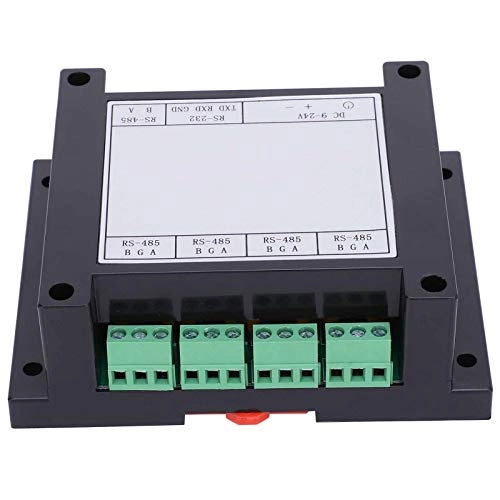

Yechiry0jz9xvmucn - 4-ports

1. [INDUSTRIAL-GRADE DESIGN] ensures stable performance with complete communication isolation, supporting up to 115.2Kbps transmission rate. 2. [MULTI-MACHINE COMMUNICATION] allows each channel to connect up to 128 nodes, extending the transmission distance to 2500 meters. 3. [AUTOMATIC DATA CONTROL] technology distinguishes and controls data transmission direction for efficient operation. 4. [ENHANCED PROTECTION MEASURES] include 15KV ESD protection and 600W dual-channel TVS protection for reliable use. 5. [DC/DC ISOLATED POWER SUPPLY MODULE] achieves electrical isolation between ports, ensuring safe and secure operation. Specification: Item Type: Repeater Compatibility: Compatible with RS-232, RS-485TIA/EIA standards Working Voltage: DC: 9-24V Rated Power: 0.5-1.2W Input Interface: 1 RS-232/1 Output Interface: 4 Load Capacity: 128 nodes per interface Communication Distance: 2500 meters shielded wire or twisted pair wire per interface Communication Rate: 300bps-115.2Kbps Installation Method: 35mm rail installation, 4-hole installation on the back plate Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in Working Environment: -30℃ to 70℃ relative humidity>95%RH Wiring Notes: 1. 485 communication line must use shielded twisted pair, preferably multiple strands for spare, the longest is not more than 2500 meters. 2. The wiring should be as far away as possible from high-voltage wires, not parallel to power lines, and not to be bundled together. 3. 485 bus must be a hand-in-hand bus structure, and resolutely eliminate star connection and bifurcation connection. 4. If there are more than 30 controllers or the cable length is greater than 500 meters, it is recommended to use a 485 repeater. 5. The AC-powered equipment and the chassis must be grounded and well grounded. 6. Connect the GND ground of all 485 devices with shielded wires. Requirements For Wire Selection Using Bus For Communication: Use 2- shielded twisted pair cable Copper, wire diameter 0.5～0.75 square millimeter, Impedance 38～88Ω/km, Capacitive 30～50nF/km, 2- shielded twisted-pair cable with a twisting distance of 20 mm (if the line distance is not more than 500 meters, the line standard can be appropriately reduced, but it must be a twisted pair) Signal Common Ground: 1. All devices on the same segment must have a unified signal ground to avoid common mode interference. 2. For centralized power supply, directly connect the DC negative poles of all power supplies on the same segment (including the self-contained power supplies of communication equipment) to form a common signal ground. At this time, the signal ground is the DC power ground. 3. When a single home supplies power independently, connect the ground (black wire) pins of all bus devices on the same segment together to form a common signal ground. packing list: 1 x Repeater Notice: The device is suitable for long‑term stable operation under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device!
