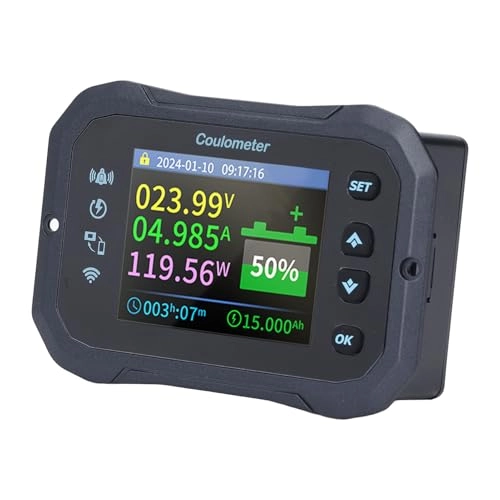

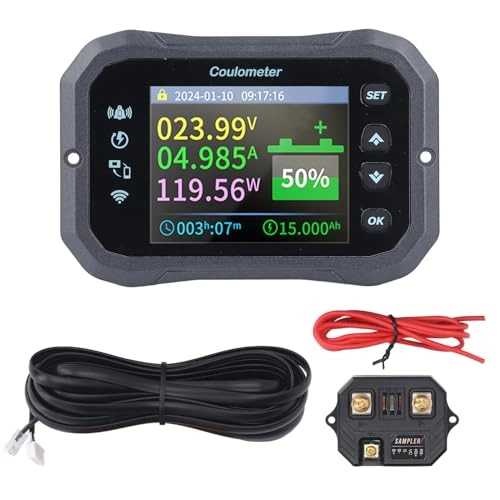

YDuupxe KM105F

[Remote Monitoring] battery status anytime using Wi Fi and Blue Tooth from your smartphone. [Wide Compatibility]Suitable for various battery types including VRLA, LFP, and Li Ion within 10-100V. [Enhanced Display]2.4 inch HD color LCD screen with adjustable modes for clearer visibility. [Multiple Measurements]Monitors voltage, current, capacity, and more with precise accuracy. [Built-in Alerts]Set up low capacity or voltage reminders for timely notifications on battery health. Item Type: WiFi Battery Monitor Material: ABS Model: KM105F Screen Size: 2.4 Inch Sampling Method: Shunt Voltage Testing Range: 10-100V Current Testing Range: 0-50A Current Resolution: 0.001A Capacity Display Range: 0-100% Power Testing Range: 0-5KW Power Resolution: 0.0001W Ampere Hour Testing Range: 0-9999.9Ah Capacity Resolution: 0.001Ah Bluetooth Connection Distance: Up to 10 Meters Unobstructed WiFi Connection Distance: Up to 10 Meters Unobstructed Remote Connection Range: Global Voltage Accuracy: ±5%+0.02V Current Accuracy: ±2+0.002A Sampling Rate: 5 Times/Second Display Power Consumption: 0.9W Screen Off Time: 10S, 20S, 30S, 40S, 50S, 60S, AUTO (During discharge, screen stays on when I≥15mA, screen off when I20s) 1 x WiFi Battery Monitor 1 x Shunt 1 x 1m Red Positive Wire 1 x 5m Communication Wire 1 x User Manual Before first use, the battery effective capacity and current remaining battery percentage must be correctly set. If the effective capacity of the battery or the current remaining battery percentage is unknown, follow the steps below to check: 1. Charge the battery pack completely. 2. Input preset battery capacity setting in the system settings, for example, if the rated battery capacity is 150AH, we set 150AH as the preset battery capacity. (You can check the rated capacity on the battery nameplate). 3. Set the remaining capacity percentage to 100%, then
