Xiangtat FGR8B

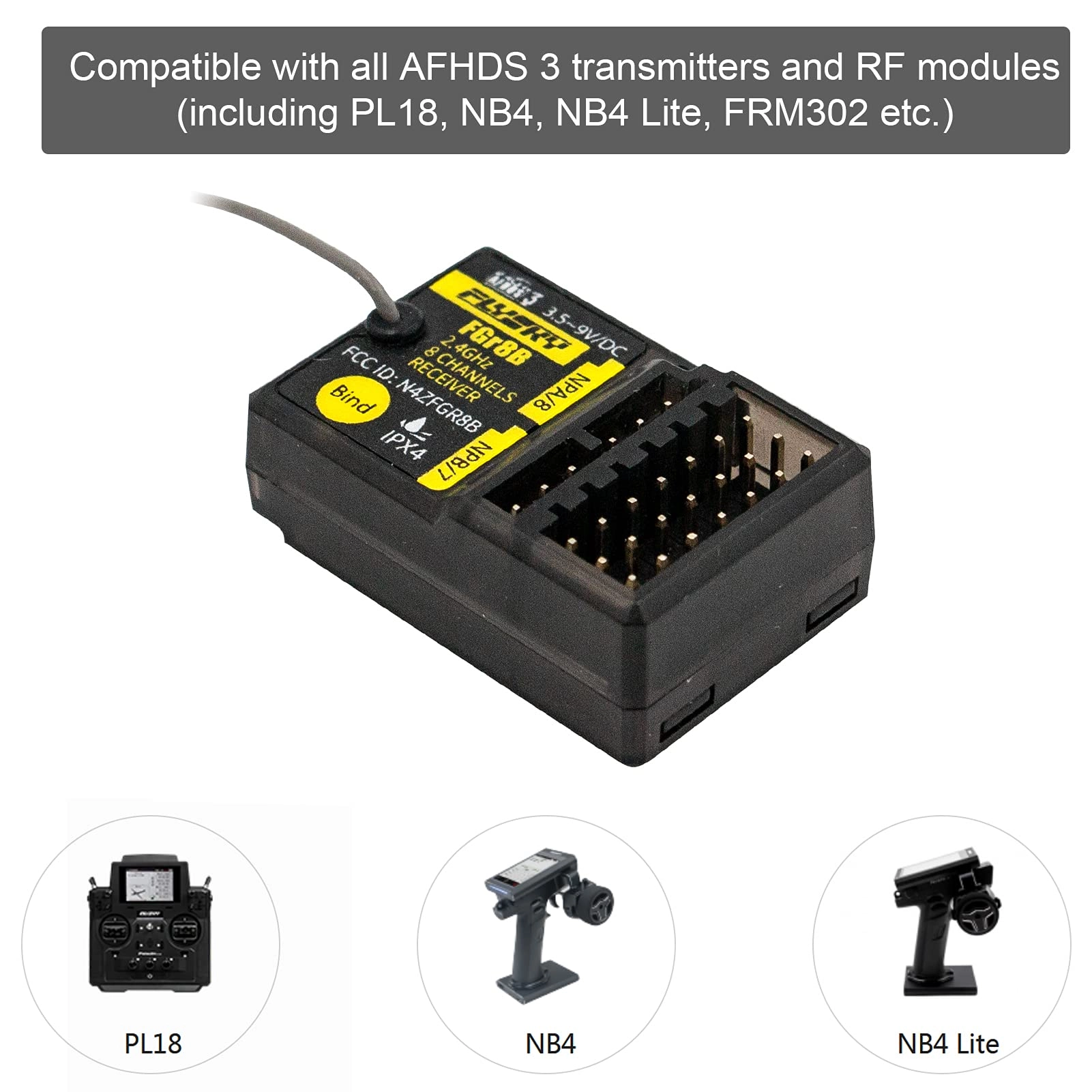

Product description Xiangtat FLYSKY FS-FGR8B 2.4GHz 8CH Receiver PWM/ PPM/ i-Bus Output Compatible with AFHDS 3 Transmitters and RF Modules for RC Car RC Boat FGr8B 8CH Receiver Features The FGr8B receiver is suitable for RC models such as boats and cars. Compatible with all AFHDS 3 transmitters and RF modules including PL18, NB4, NB4 Lite, FRM302, etc. It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/i-bus in signals. With a compact size and light-weight, no worry to give any burden to your RC Model. It supports all AFHDS3 transmitter and RF modules. Failsafe: This function protects your vehicle by preventing unexpected behaviors in cases of signal lost PWM Channels: 7 (Version 2.0 will be upgraded to 8 channels) Flysky Noble NB4 Pro Receiver FGr8B 8 Channels AFHDS3 PWM/PPM/i-Bus for Rc Car/Rc Truck/Rc Boat FGr8B 8CH Receiver Specification Product Model: FGr8B Adaptive transmitter: all transmitters supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.) Model Type: Car/Boat etc PWM Channels: 7（Version 2.0 will be upgraded to 8 channels)） RF: 2.4GHz 2.4G Protocol: AFHDS 3 Antenna: Single Antenna Input Power: 3.5-9V Data Output: PWM\PPM\i-bus in Temperature Range: -10℃ — +60℃ Humidity Limit: 20%-95% Online Update: Yes Dimensions: 35 x 23.3 x 13.3mm Weight: 9.4g Flysky FGr8B Receiver connection diagram [1] CH1(PWM/PPM) ; [2]-[4] CH2-CH4; [5] CH5(NPD) ; [6] CH6(NPC) ; [7] CH7(NPB); [8] i-bus in (CH8/NPA) ; [9] VCC/BVD(Battery voltage detection / power supply interface) [10] Antenna; [11] BIND ; [12] LED ; [13] S (Signal Pin) : [14] +（Positive power terminal）: [15] -（Power ground）; [16] BVD harness ; [17] Connect to battery positive pole; [18] Connect to battery negative pole Tips： (1) The added new NPA/B/C/D and BVD functions will be available with the release of a new firmware update in November 2020. The BVD harness [17] will not function until the new firmware has been installed. (2) The [8] i-bus/s.bus terminal will be replaced with the CH8 (NPA) function after the firmware upgrade. Binding instruction and hard update firmware 1. Press and hold the receiver BIND button [11] while powering on the receiver, release the BIND button after receiver is powered on, the LED [12] on the receiver will flash rapidly; 2. Put the transmitter into bind mode; 3. The binding process is complete when the LED on the receiver stops flashing and is on continuously. • If a transmitter that has had its radio frequency (RF Standard) set to “AFHDS3 1 way” (please refer to your transmitter user manual) enters bind mode, the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED stops flashing and is on continuously, the binding process is complete. 4. Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise Hard update firmware If after a firmware update is performed and the transmitter is unable to bind to the receiver, the receiver may need to be put into forced update times. 1. Power on the receiver while pressing the BIND button [11] for then approximately ten seconds until the LED [12] flashes three times, release the BIND button. 2. Go to the RX Setup menu on your transmitter and select “RX Update”. 3. When the receiver LED flashes slowly, the update is successful. Flysky FGr8B Receiver Failsafe Setup The failsafe function is used to output the channel according to the out-of control protection value set by the user after the receiver loses its signal and is out of control to protect the model and personnel. This receiver supports three failsafe modes: "Free", "Hold", and "Fixed value"; "Free" mode refers to PWM, PPM, i-Bus out, i-Bus 2 converter entering the failsafe state keep the channel value of no output signal. The S.BUS, i-Bus2, and i-bus converters output the last received signal channel value of the transmitter. "Hold" mode means that after entering the failsafe state, keep the output of the last transmitter signal; the "Fixed value" mode means that after entering the out-of-control protection state, the set signal channel value is maintained to output the signal FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no promise that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
