WGFOIP UT681

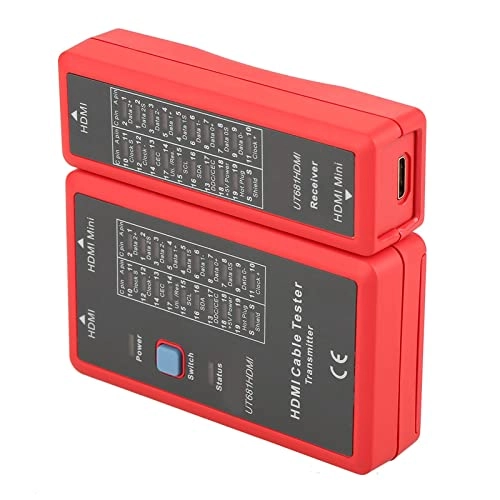

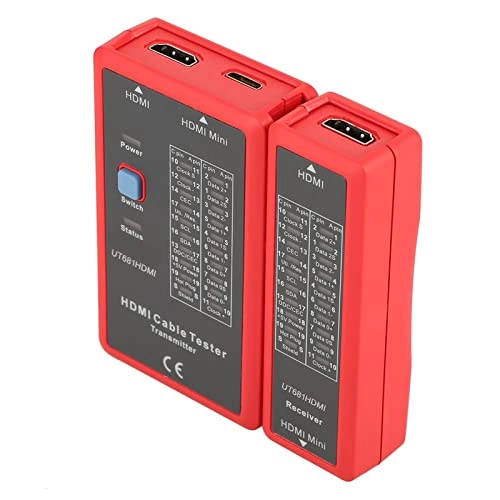

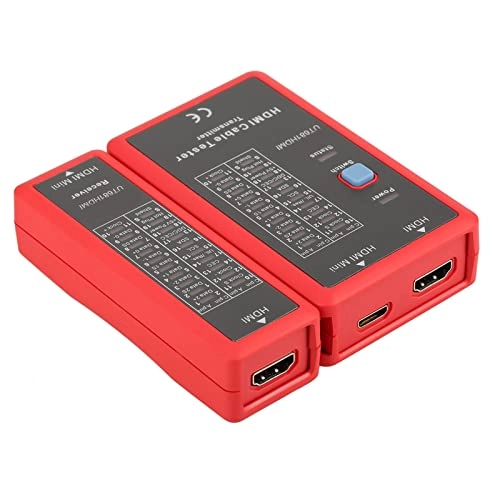

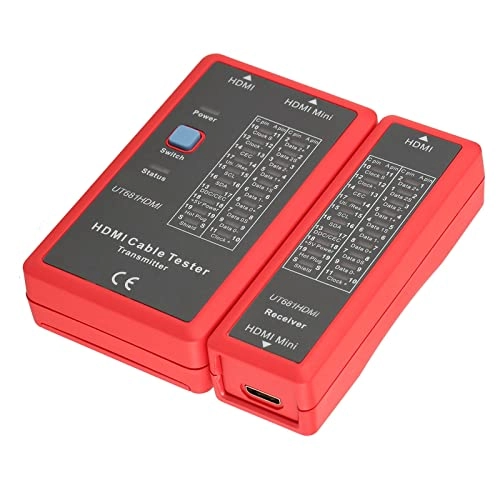

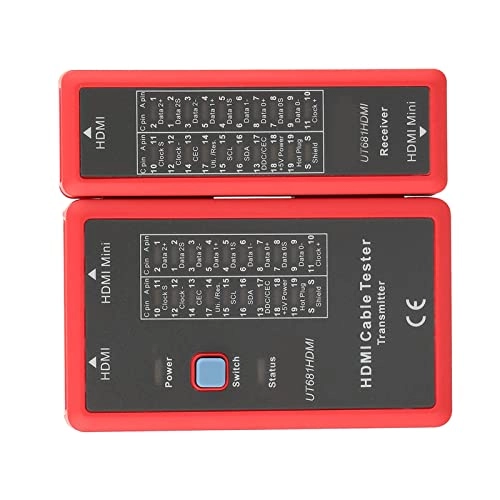

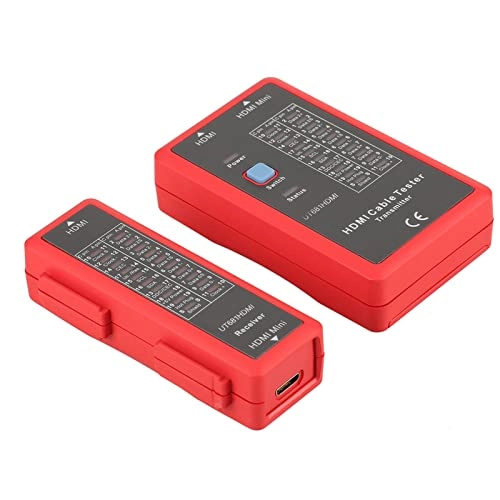

Features: UT681 HDMIis a professional tester for testing cable ( 1.2V/1.3V/1.4V/2.0V). It can quickly scan and test up to 19 wires and decidewhich one is short circuit, open circuit, or in wrong order. It supports two test modes, fast scan mode and full displaymode. Three types of HD cables can be tested: a.Both endsare standard connectors (Type A - Type A); b.Both ends areHDMI Mini connectors (Type C - Type C); c.One end isHDMI connector, one end is Mini connector (Type A - Type C) Battery low voltage test, when the batteryvoltage is lower than about 7.2V, the blue light flashes, prompting to replacethe battery. Auto shut down function, when no operationduring the last 10 minutes, the instrument will automatically shut down. Specifications: Model: UT681HDMI Supported Connector: (type A); Mini (Type C) Scan Test Mode: 20 LED (LED1~LED8, LED_G) scan test Full Display Test Mode: 20 LED (LED1~LED8, LED_G) all light on Continuity Test: Yes Short Circuit Test: Yes Crossover Test: Yes Cable Test: Sheilding/Un-sheilding Auto Power-off: After 10 minutes without operation Power Supply: 9V battery Low Voltage Test: Yes Operating Temperature: 0℃~40℃ Storage Temperature:-10℃~50℃ Operating Humidity: 20%~80%RH Storage Humidity:10%~90% RH Altitude: Lessthan 2000 meters Weight: 175g(approx.) Package Includes: 1 x Transmitter 1 x Receiver
