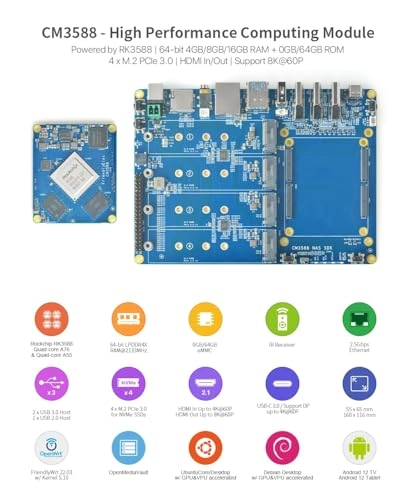

WayPonDEV CM3588 4-Bay 64GB

-Specification-

SoC: Rockchip RK3588

CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)

GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2

VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder

NPU: 6TOPs, supports INT4/INT8/INT16/FP16RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz

Flash: 0GB/64GB eMMC, at HS400 mode

1 x microSD interface, support up to SDR104 mode

1 x On-board PCIe 2.5G ethernet controller (RTL8125B)

USB:

2 x USB 3.1 Gen1 OTG which combo with DP display(up to 4Kp60)

1 x USB 3.1 Gen1 Host

2 x USB 2.0 Host

PCIe:

up to 4 x PCIe interfaces

2 x PCIe 2.1 x1 and 2 x PCIe 3.0 x2

or 2 x PCIe 2.1 x1 and 1 x PCIe 3.0 x4

or 1 x PCIe 2.1 x1, 1 x PCIe 3.0 x2, and 2 x PCIe 3.0 x1

or 4 x PCIe 3.0 x1HDMI output:

2 x HDMI outputs which is compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation

one support displays up to 7680x4320@60Hz, another one support up to 4Kp60

Support RGB/YUV(up to 10bit) formatHDMI input: 1 x HDMI input, up to 4Kp60

MIPI RX:

2 x 4lane MIPI DPHY CSI RX which support x4 mode or x2+x2 mode ,compatible with MIPI V1.2

2 x 4lane MIPI_D/CPHY_RXMIPI TX:

2 x 4-lane MIPI D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1
