VSDISPLAY G070VW01 V0 - 800X480 7 Inches

Name: VSDISPLAY G070VW01 V0 - 800X480 7 Inches
Brand: VSDISPLAY
SKU: 895154
Availability: InStock

Best offer

AED

742⁰⁰

Key Features

Resolution: 800 x 480pixels
Resolution: 800
Product dimensions: 18D x 10.7W x 5.2H centimeters
ASIN: B07WCLVGDP
Weight: 500g
Display diagonal: 7"
Display resolution: 800 x 480pixels

Specifications

Features

Display diagonal

7 "

Resolution

800 x 480 pixels

Weight & dimensions

Weight

500 g

Product dimensions

18D x 10.7W x 5.2H centimeters

Display

Display resolution

800 x 480 pixels

Technical details

Resolution

800

Logistics data

ASIN

B07WCLVGDP

Product Details

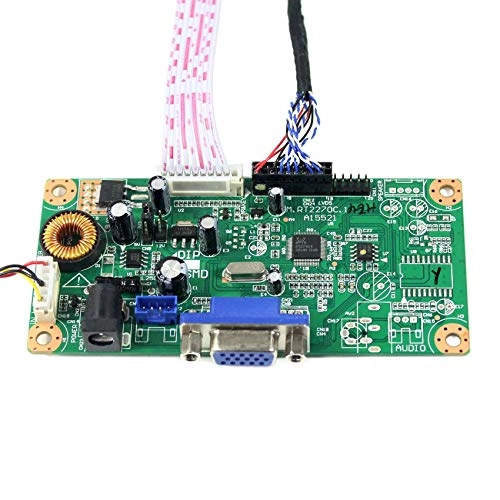

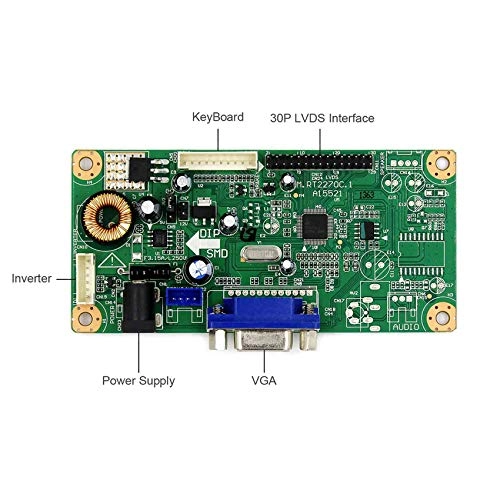

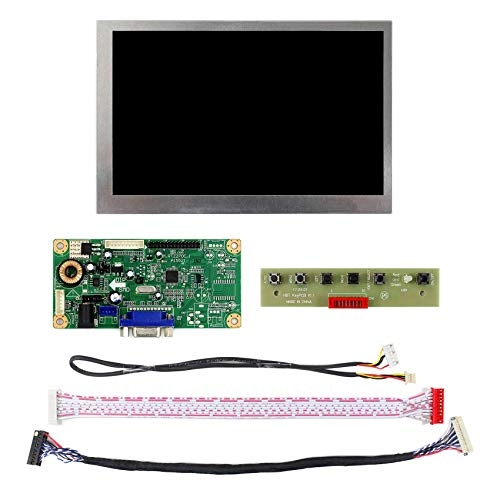

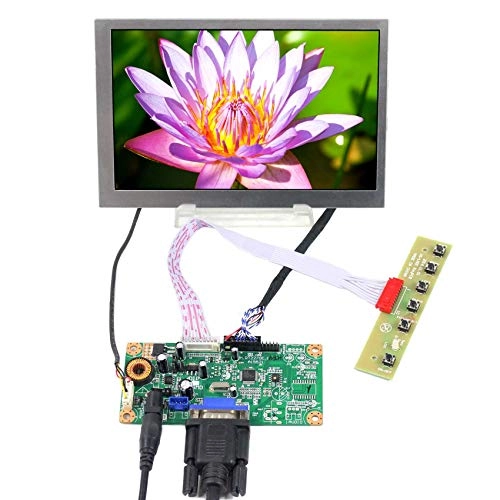

LCD Controller Board: VGA LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: VGA OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 107mm x 52mm x 18mm 7" G070VW01 V0 800X480 LCD Screen: Display Mode MVA, Normally Black, Transmissive Resolution 800RGB)×480 Outline Size 170 × 111×8(H×V×D) Display Area 152.4× 91.44 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 750:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 20 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× VGA LCD Controller Board 1× 7inch G070VW01 V0 800X480 LCD Screen 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable
