Product Description
The advanced MBF2600RC Enterprise Series of hard disk drives from Toshiba has been developed according to the highest reliability and performance requirements for HDD applications in the server environment.
With the MBF2600RC, Toshiba Storage Device Division launches the highest capacity small form factor enterprise HDD (as of launch date 9 February 2010). The 600GB drive operates at 10,025RPM and distinguishes itself from 3.5.inch form factor competition through superior technical and power consumption specifications.
The new 2.5-inch enterprise line of HDDs are made for business-critical, power-conscious and data-intensive storage applications such as mid-range volume servers, mainstream storage array, blade and rack mount servers.
By utilizing an enhanced power condition state feature, the MBF2xxxRC with 6Gb/s SAS-interface offers increased power efficiency compared to traditional 3.5-inch enterprise storage counterparts.
Additionally, MBF2600RC drives are available, as an option, with a Self-Encryption Drive (SED) functionality that automatically encrypts data as it is written to the HDD without slowing down its performance.
The range of these new drives includes the 600GB MBF2600RC, 300GB MBF2300RC, and 450GB MBF2450RC.
Specification
Performance
Track-to-track Seek - 0.2ms typ. (Read), 0.4ms typ. (Write)
Average Seek Time - 4ms typ. (Read), 4.4ms typ. (Write)
Rotational Speed - 10,025 RPM
Average Latency - 2.99ms
Buffer Size - 16MB
Power Requirements
Voltage - 5V (+/- 5%), 12V (+/- 5%)
Spin up (start) Power - 12V (+/-5%) @ 1.2A (peak), 1.5A (peak <100us), 5V (+/-5%) @ 1.0A (peak)
Low Power Idle - 4.0 watts (max)
Physical Size
Dimensions (W) x (D) x (H) - 69.85 mm (2.75") x 100.45 mm (3.95") x 15 mm (0.59")
Weight - 220 g, or less
Environmental
Temp – Operating - 5° to 55°C (41° to 131°F)
Temp - Non-Operating - -40° to 70°C (-40° to 158°F)
Humidity – Operating - 5% to 95% RH
Humidity - Non-Operating - 5% to 95% RH
Vibration – Operating - (0.6mm) 5 to 20 Hz / 9.8 m/s² (1.0G) 20 to 300 Hz
Vibration – Non-Operating - (3.1 mm) 5 to 20 Hz / 49 m/s² (5.0G) 20 to 300 Hz
Shock – Operating - 980 m/s² (100G) 1ms
Shock – Non-Operating - 3,920 m/s² (400G) 1ms
Altitude – Operating - -1,000 to 10,000 ft
Altitude – Non-Operating - -1,000 to 40,000 ft
Acoustics
Acoustics (idle) - 2.9 bels or less
Reliability
Mean Time Between Failures (MTBF) - 1,600,000 hours
Component Life - 5 years POH
Warranty
Limited Warranty - 5 years (from date of purchase)
Set Contains:

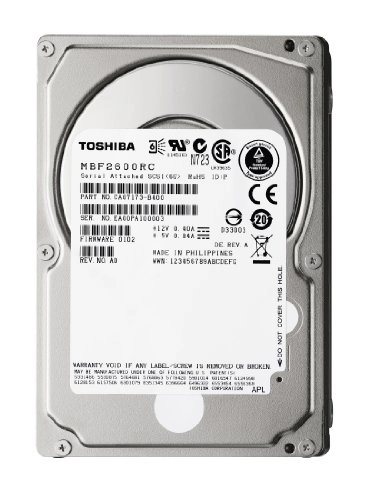

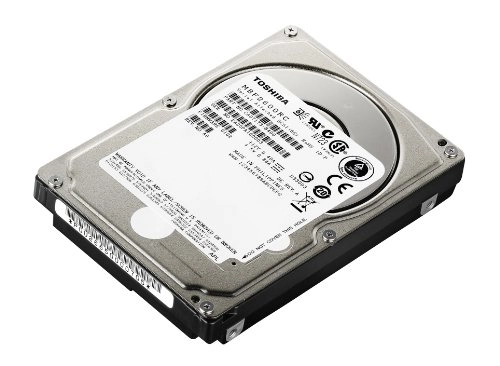

Toshiba MBF2600RC 600GB 10000rpm SAS 2.5 Inch Internal Hard Drive
