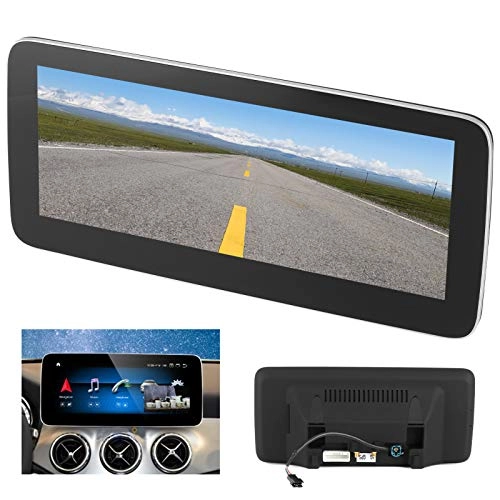

Torvex GPS Navigator - 10.25 inch 4+64GB

Item Type: Car Navigator Material: ABS Fitment: Fit for Mercedes A-CLASS/GLA 2013-2015 Operating System: for Android 10.0 Screen Size: 10.25 inches Screen Resolution: 1280 x 720 Configuration: GPS/BT/USB/wireless CARPLAY/AHD/DSP Decoding Chip: for Qualcomm MSM8953 Power Amplifier Chip: TDA7388 Mobile Phone Interconnection: for Android two-way/for IOS one-way GPS Navigation: Support Radio Band: FM Radio Chip: 8227 Audio Frequency: FM87.5-108m Reversing Image: Support AHD Brake Prompt Function: Yes Steering Wheel Control Function: Yes Bluetooth: Support, version 4.0, support Bluetooth music, Bluetooth phone call Output Terminal: 1 way reverse video input. 1 channel record video input. USB Interface: Version 2.0 has 2 tail line outputs Play Mode: USB/Bluetooth 4.0 (password: 0000) Supported picture formats: JPEG, GIF, PNG, BMP Supported Audio Formats: MP3, FLAC, APE, WMA, WAV, AAC, AMR, etc. Supported Video Formats: AVI, ASF, MP4, MOV, MPG, MPEG 1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP, 1080P, etc. Working Voltage: DC 9-17V Installation Method: 1. Loosen the bolts of the center control panel. 2. Remove the center control panel trim. 3. Remove the original car's central control panel and disassemble the original car's multimedia host. 4. Organize the GPS antenna of the new navigation host. 5. Check the signal line plug and power cord plug connected to the host. 6. Connect the signal line plug, ACC power plug and GPS antenna of the new navigation host. 7. Turn on the vehicle and check whether the new navigation host is working properly. 8. Start the navigation and drive a circle around, check whether the navigation coordinates are offset and whether the GPS positioning is connected. 9. After the test is completed, restore the vehicle after there is no problem. Package List： 1 x Host 1 x Power Cord 1 x
