SIXTOP Brake Light Reversing Camera - Night Vision AV 1280*720P

Note:

1. Voltage: DC 12V
2. If the image on the screen is blurry, flickering, or horizontal/vertical stripes appear, please check all power and video connections. Use different ground points (iron parts) as far as possible and wrap the power plug and video plug with insulation tape to isolate interference. If these problems persists, please order a 12V DC power adapter filter rectifiter to solve problems.

Ensure safe and confident reversing, specially designed for Mercedes Benz Sprinter 2010-2019

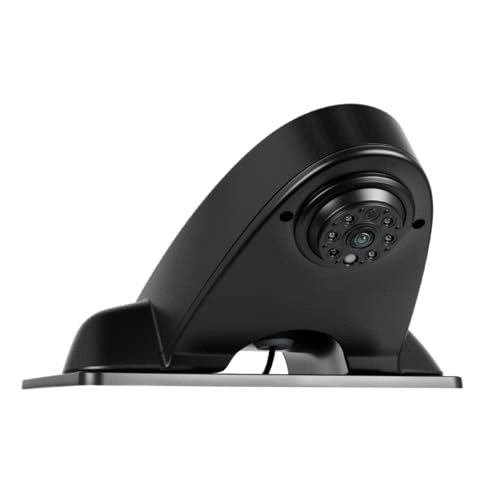

Brake Light Design Wide Angle Rear View Reversing Camera

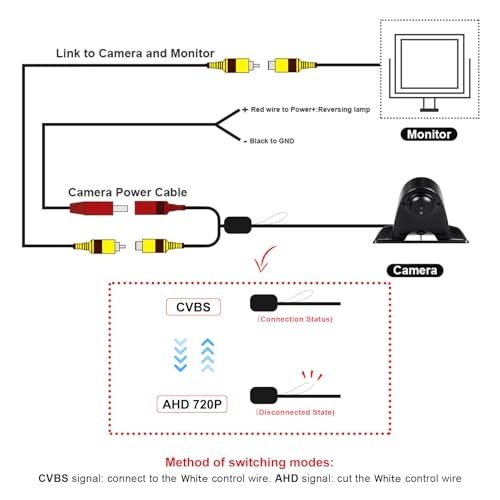

• - AHD image 1280*720P without guide line (PAL system)
• - CVBS image 640*480P with guide line (NTSC system)
• - 6-LED IR night vision to provide a better view at dark
• - 140° wide viewing angle without blind spots (15˚ up and down)

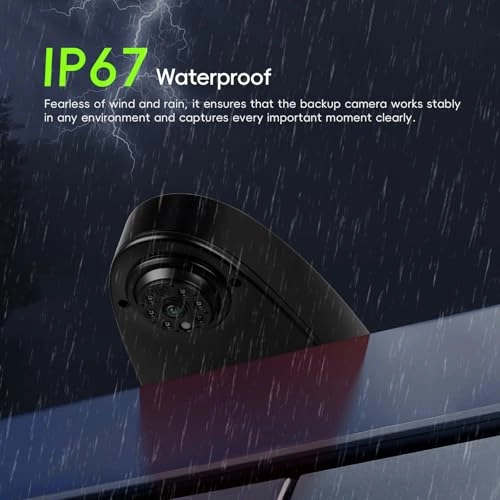

• - IP67 Waterproof for all weather conditions
• - Easy intallation with 10m extension cable (AV connector only for aftermarket radio)

Specification

1. Input Voltage: 12V
2. Input Current: 100mA
3. Pixel: 1 MP
4. Resolution:
5. CVBS 640*480 with guide line (Mirror image) (NTSC system)
6. AHD 1280*720 without guide line (Mirror image) (PAL system)
7. Viewing Angle: 140°
8. Waterproof: IP67
9. Suit for:
10. Benz Sprinter 2010-2019

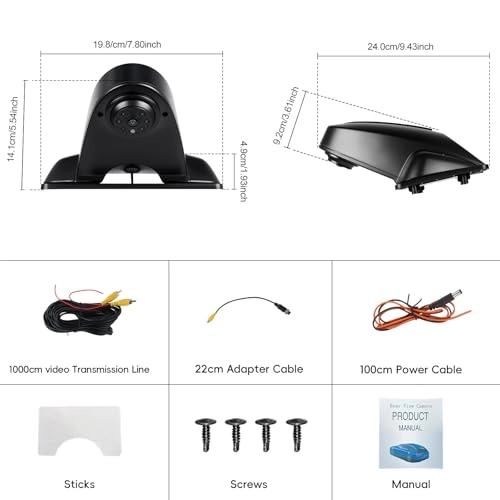

Package Content

• 1*HD Backup Camera
• 1*1m Power cable
• 1*10m Video Transmission Cable
• 1*Adapter cable
• 1*Accessories
• 1*User Manual
