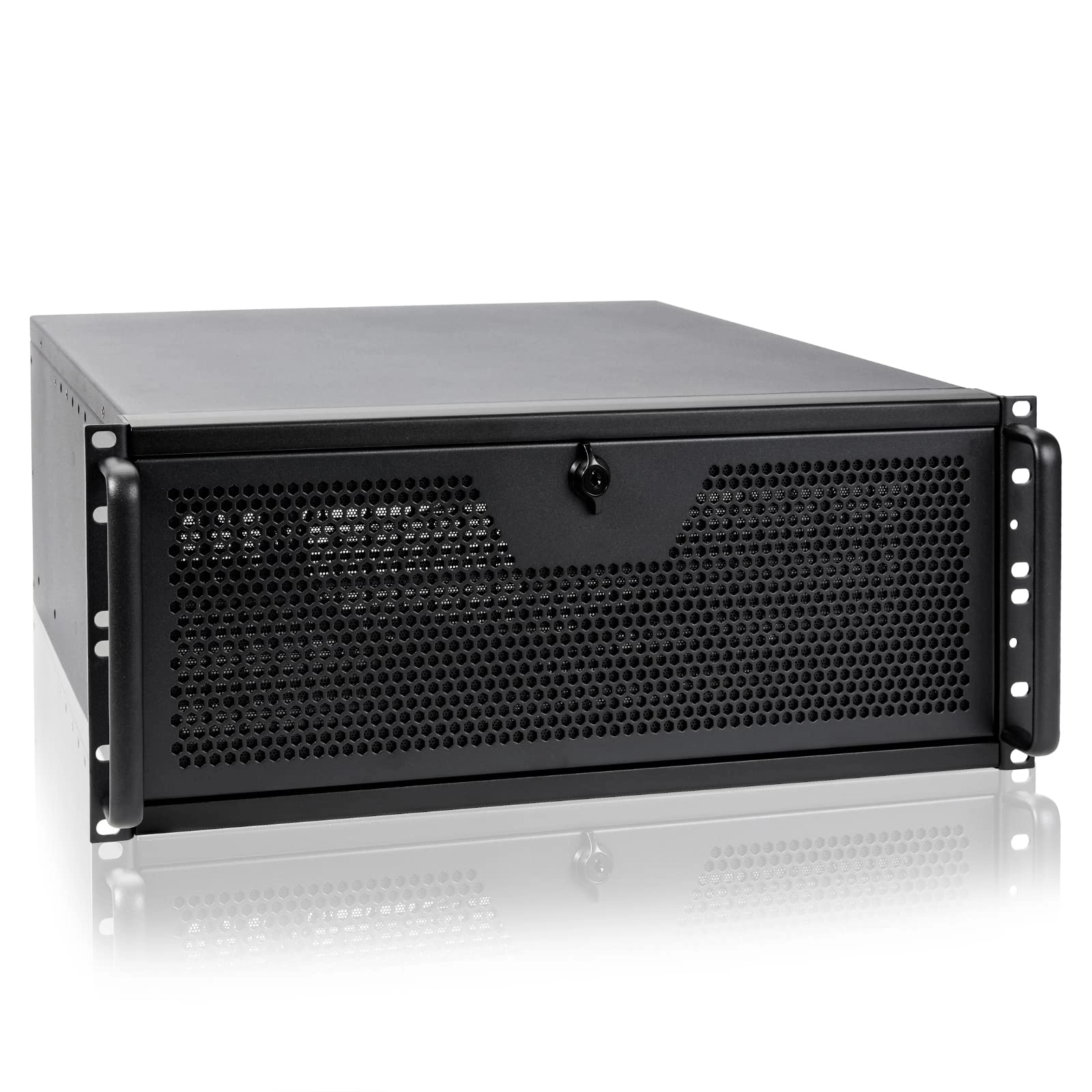

SilverStone's comprehensive rackmount server chassis with liquid
cooling radiator support encompass 4U and 5U form factor heights,
of which, includes support for single 240mm radiator, single
360mm (180mm x 2 or 120mm x 3) radiator, and dual 360mm dual
radiators. SilverStone's pursuit of the highest elevation in
cooling performance transcends conventional standards, thus the
RM600 was created, boasting superior cooling performance,
functionality, and usability compared to its predecessors. The
RM600 is a 6U height rackmount chassis, marking SilverStone's
first venture into the realm of 6U server cases. With an 1U
increase in height compared to its 5U predecessors, its
flexibility and capability to accommodate various components are
significantly expanded. The additional space allows for more
versatile configurations and improved thermal management, making
the RM600 an ideal choice for demanding server applications. The
RM600 is designed with maximum compactness, durability, and ease

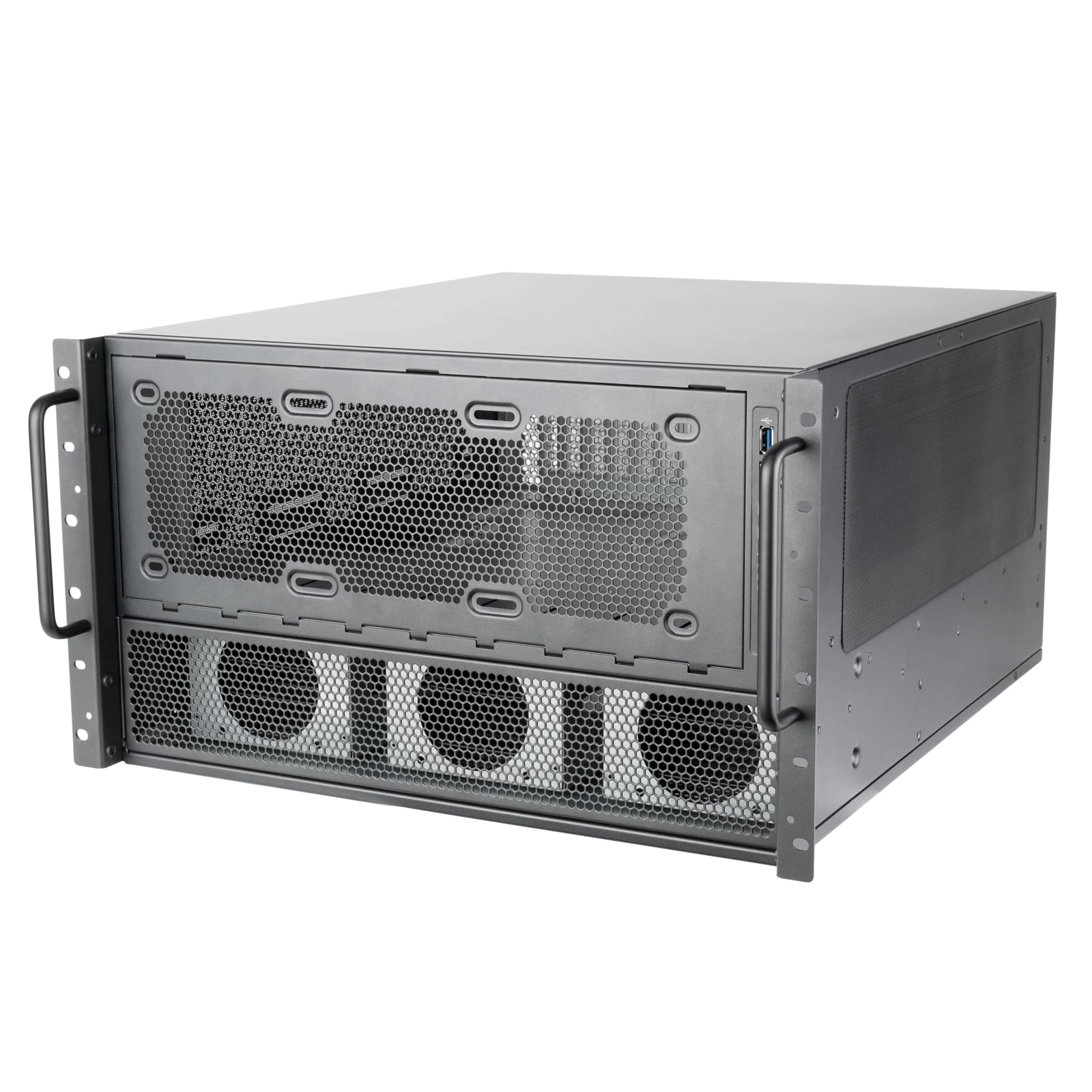

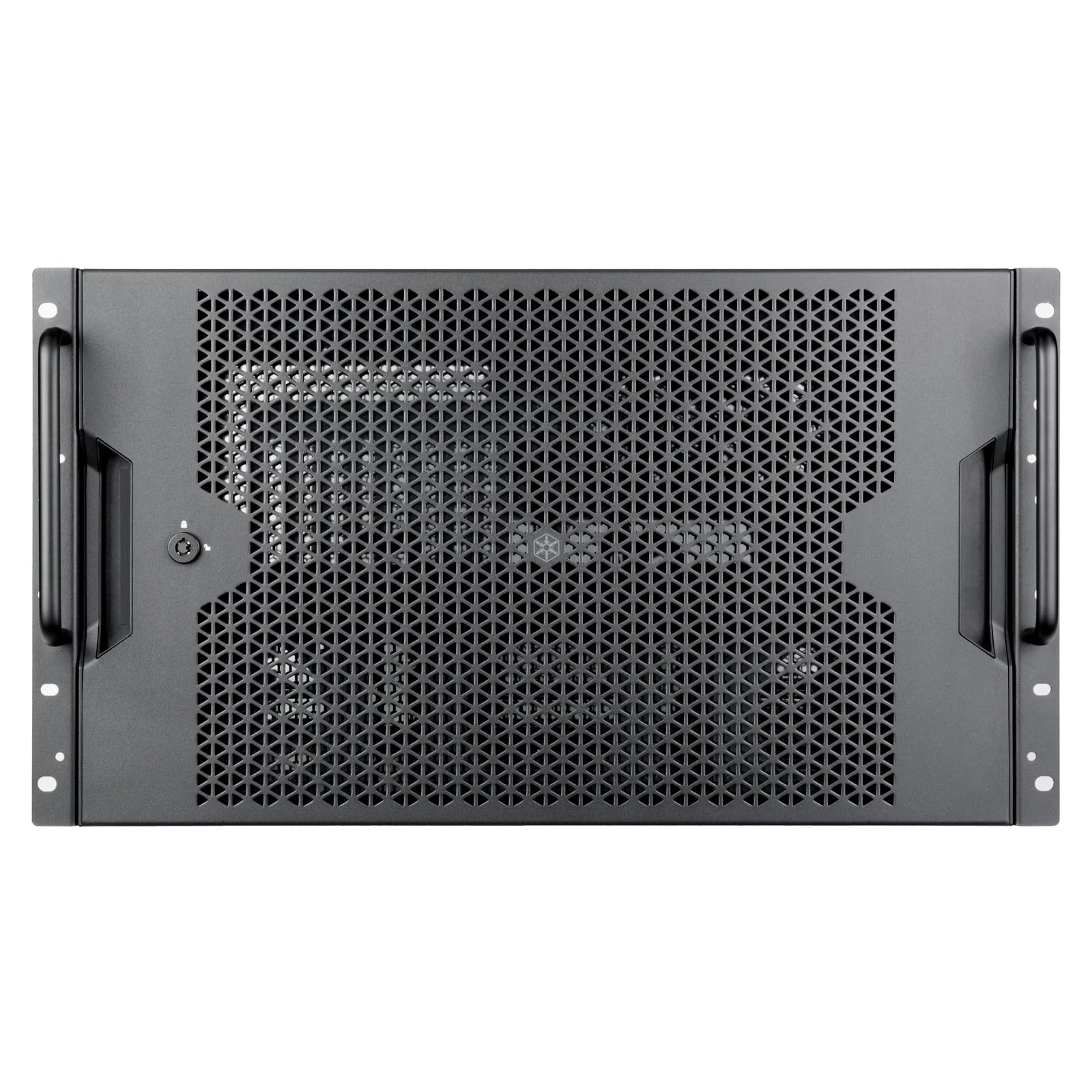

of use in mind. The front chassis features a removable front
panel with carefully designed perforations that do not compromise

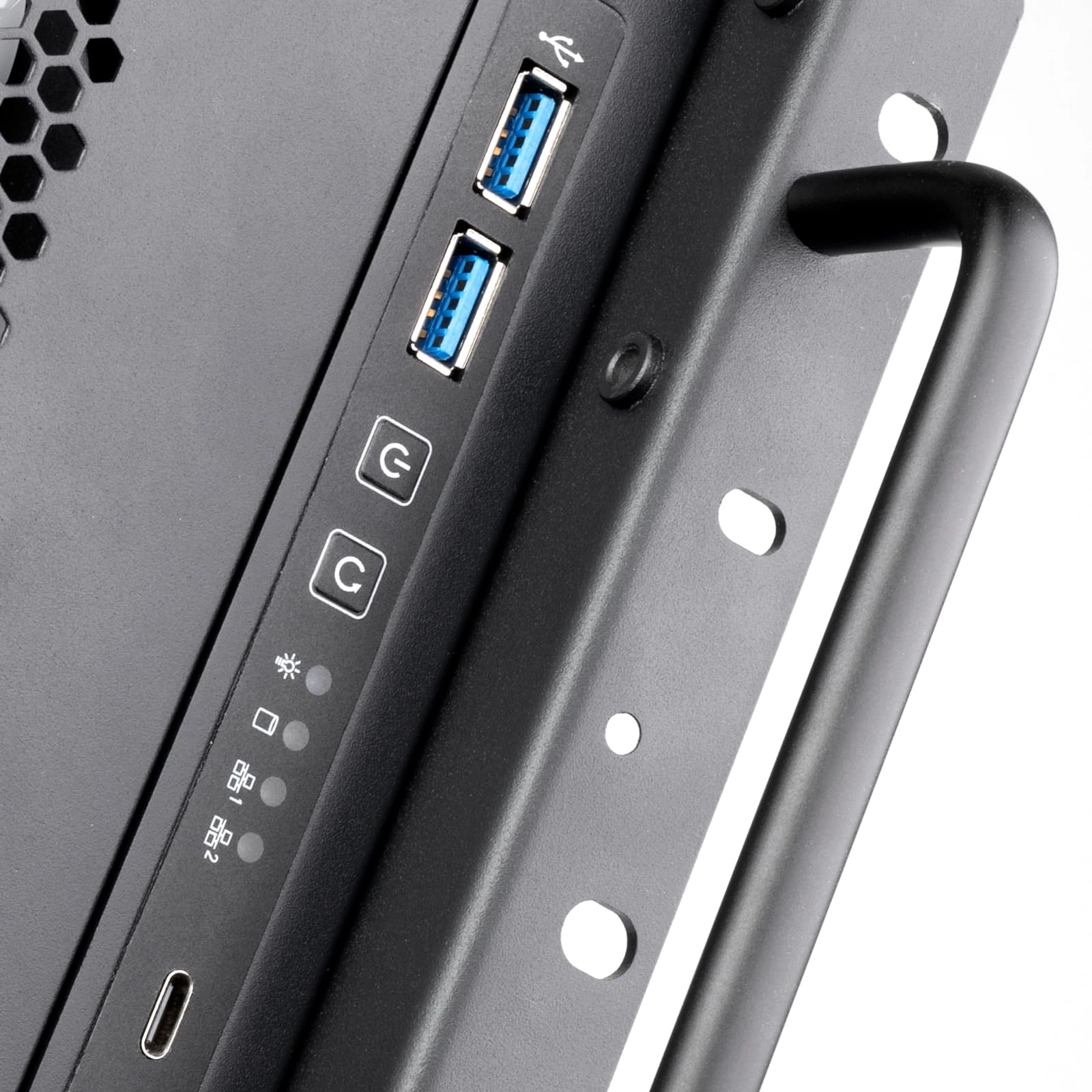

overall intake airflow performance. When removed, it reveals the
front I/O ports, including 1 x USB Type-C and 2 x USB Type-A,
along with 3 x 120mm fan mounts. These fan mounts contribute to
substantial intake airflow directed towards internal components,
which also allows for the installation of a 360mm liquid cooling

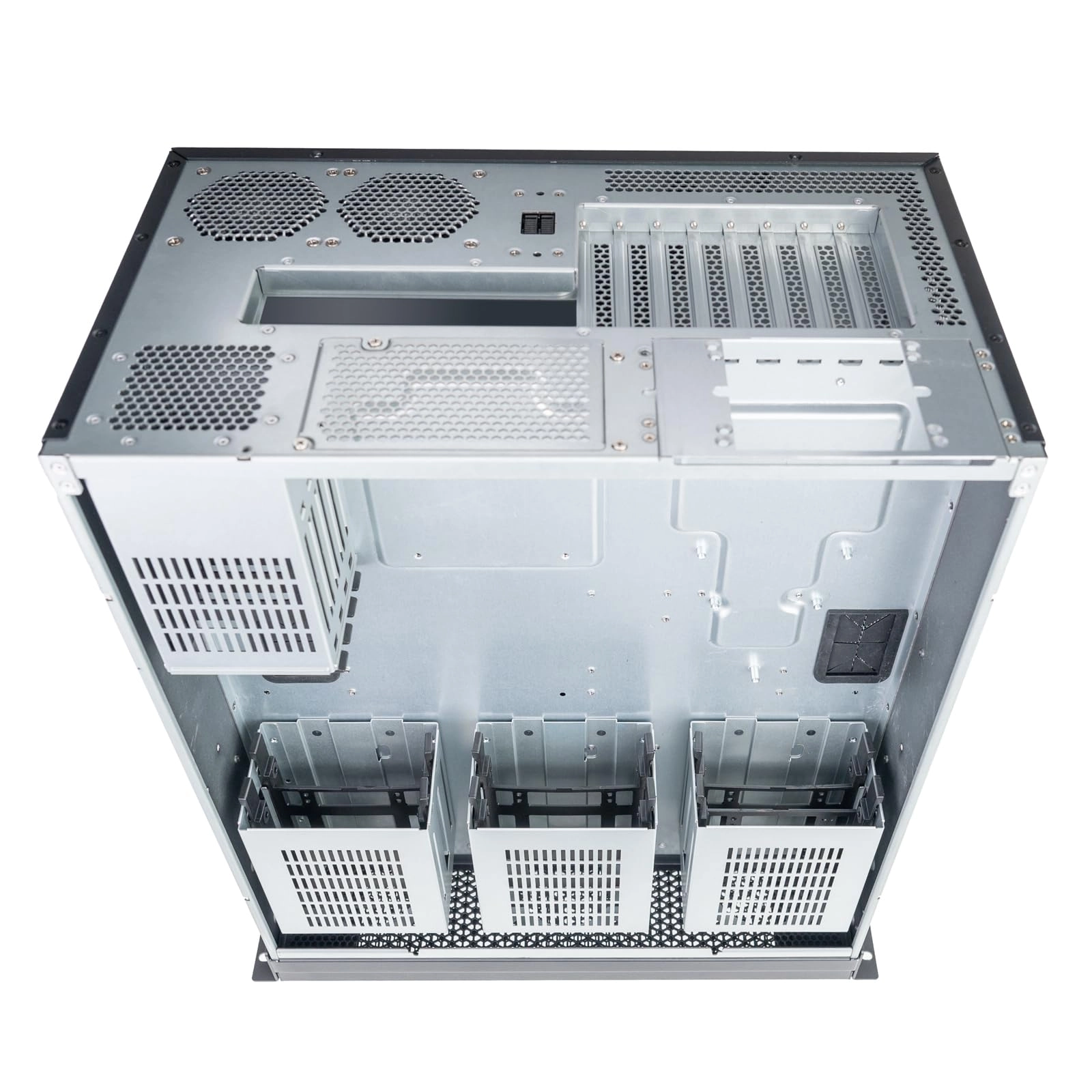

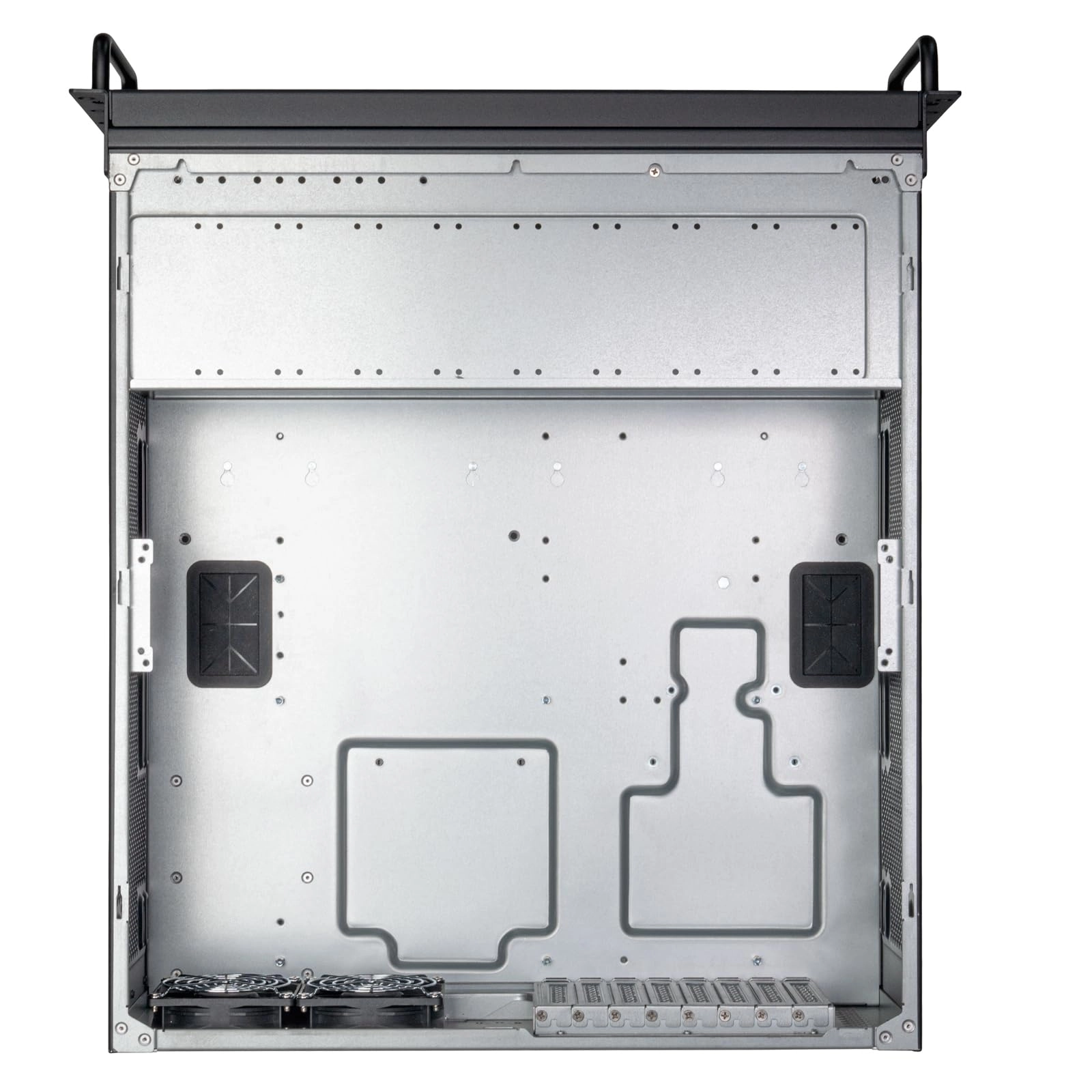

radiator. Internally, to maximize compactness, the RM600 is
designed to accommodate various motherboard form factors,
including up to SSI-EEB. The spacious interior allows for the
installation of multiple expansion cards up to 340mm, thanks to a
total of 8 expansion slots, ensuring compatibility with a wide
range of server-grade components. Additionally, the RM600 is

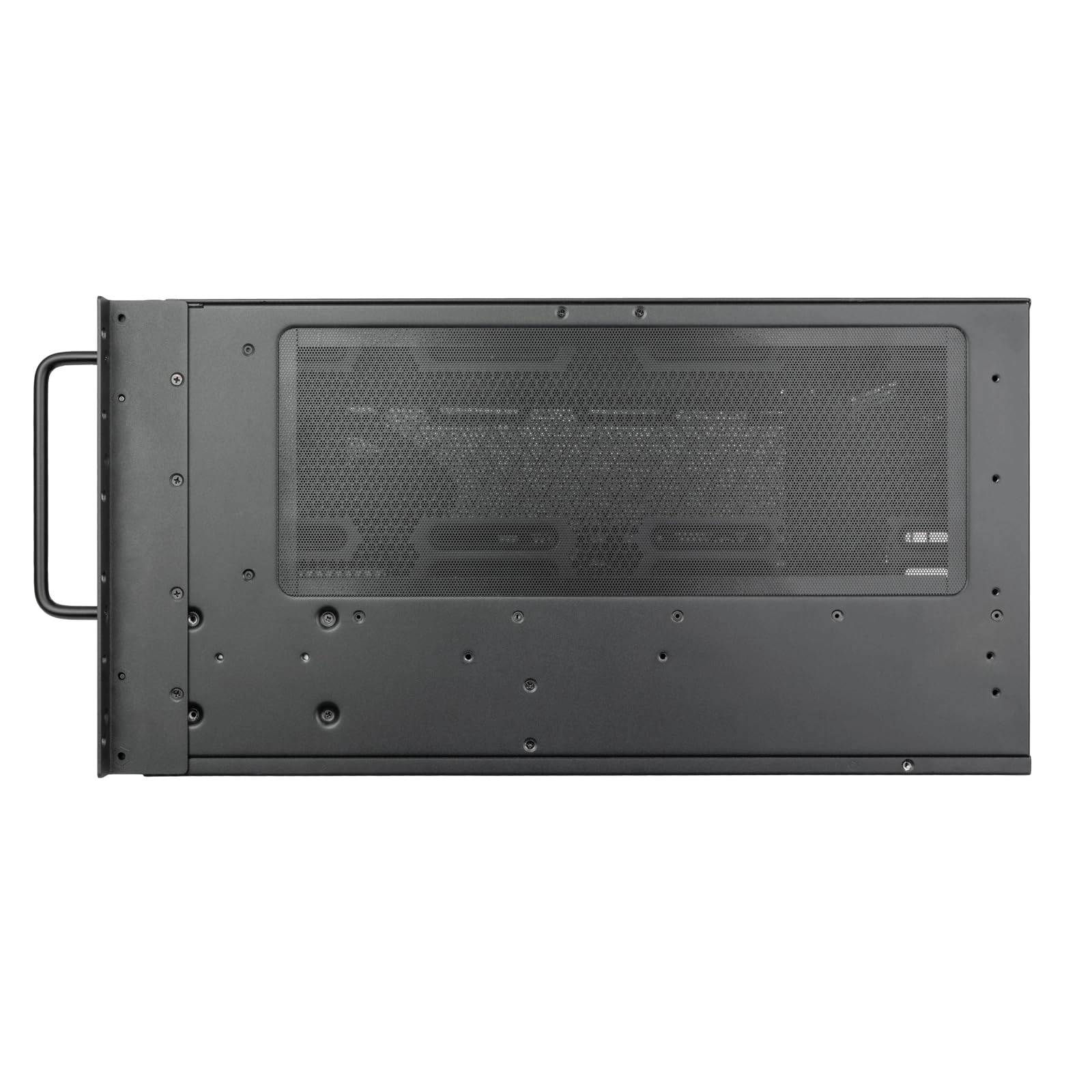

designed with fan mounts on all sides of the chassis: 3 x 120mm
at the front (near the motherboard tray), 3 x 80mm below the
motherboard tray, 3 x 120mm on the right side, 3 x 120mm on the

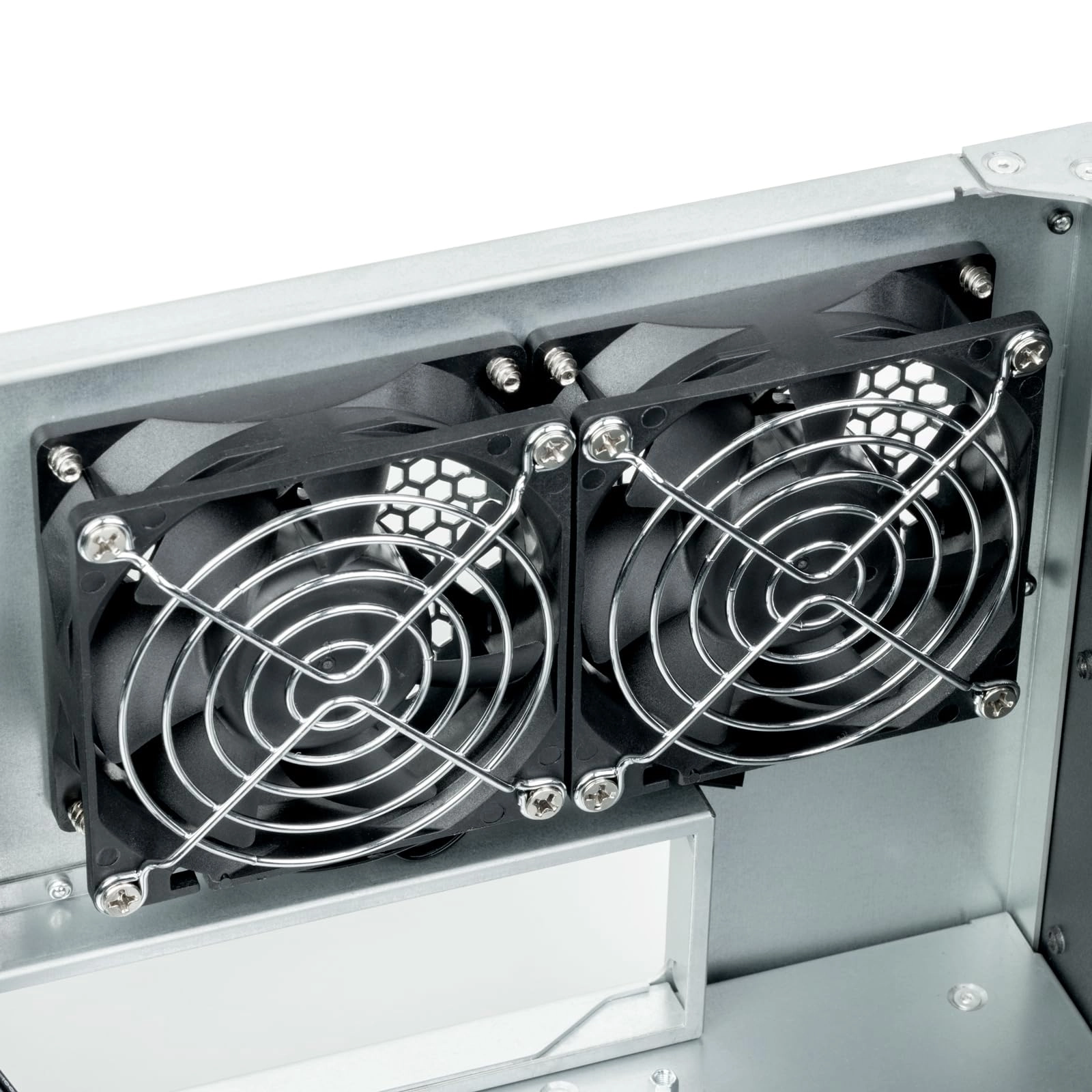

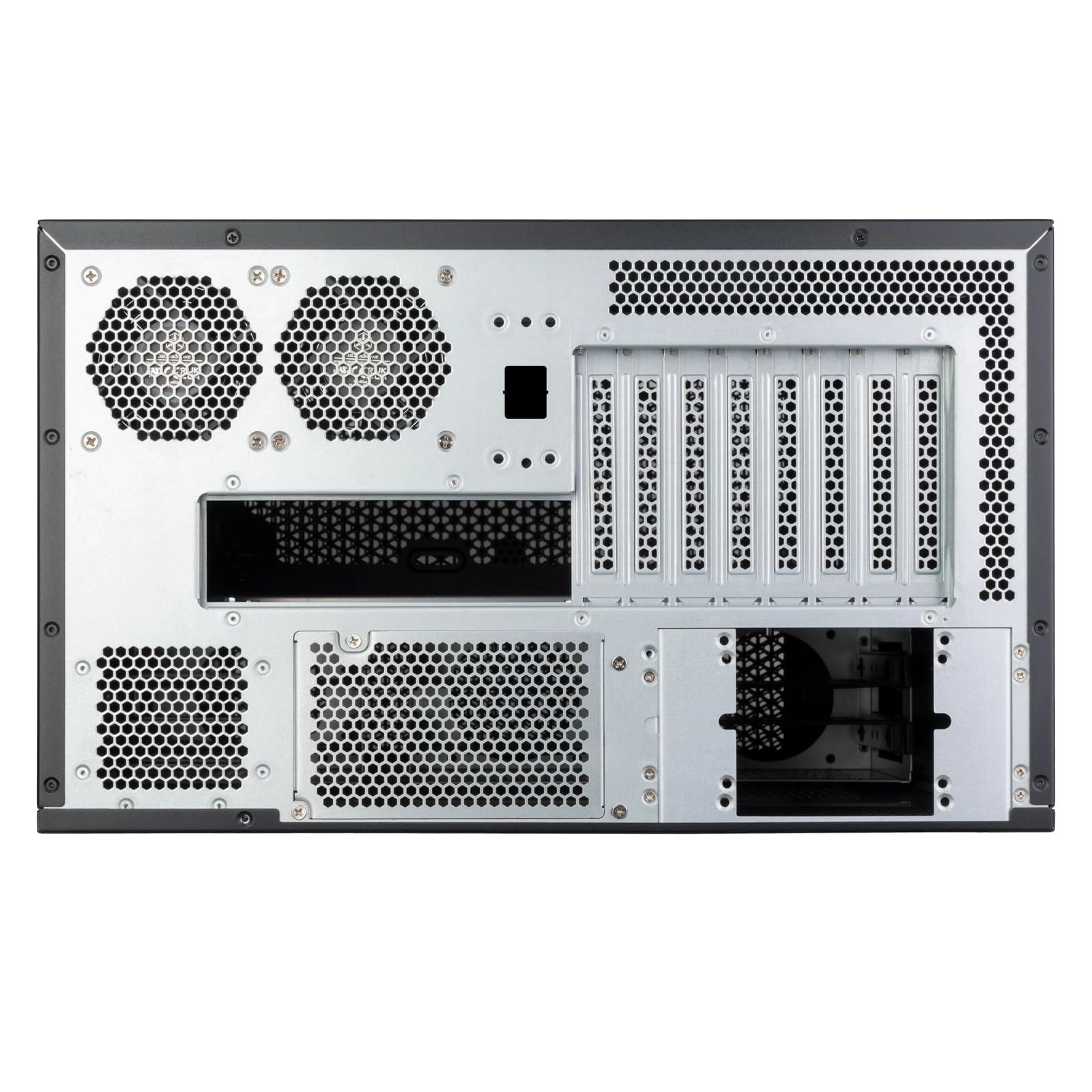

left side, and finally, 2 x 80mm at the rear to efficiently expel
internal heat. The chassis is equipped with fan mounts all
around, and notably, all three of the 3 x 120mm fan mounts also
allow for the installation of a 360mm radiator. In a 6U height,
19" rackmount chassis, the RM600 can support a total of three
360mm radiators to easily deal with the heat generated by

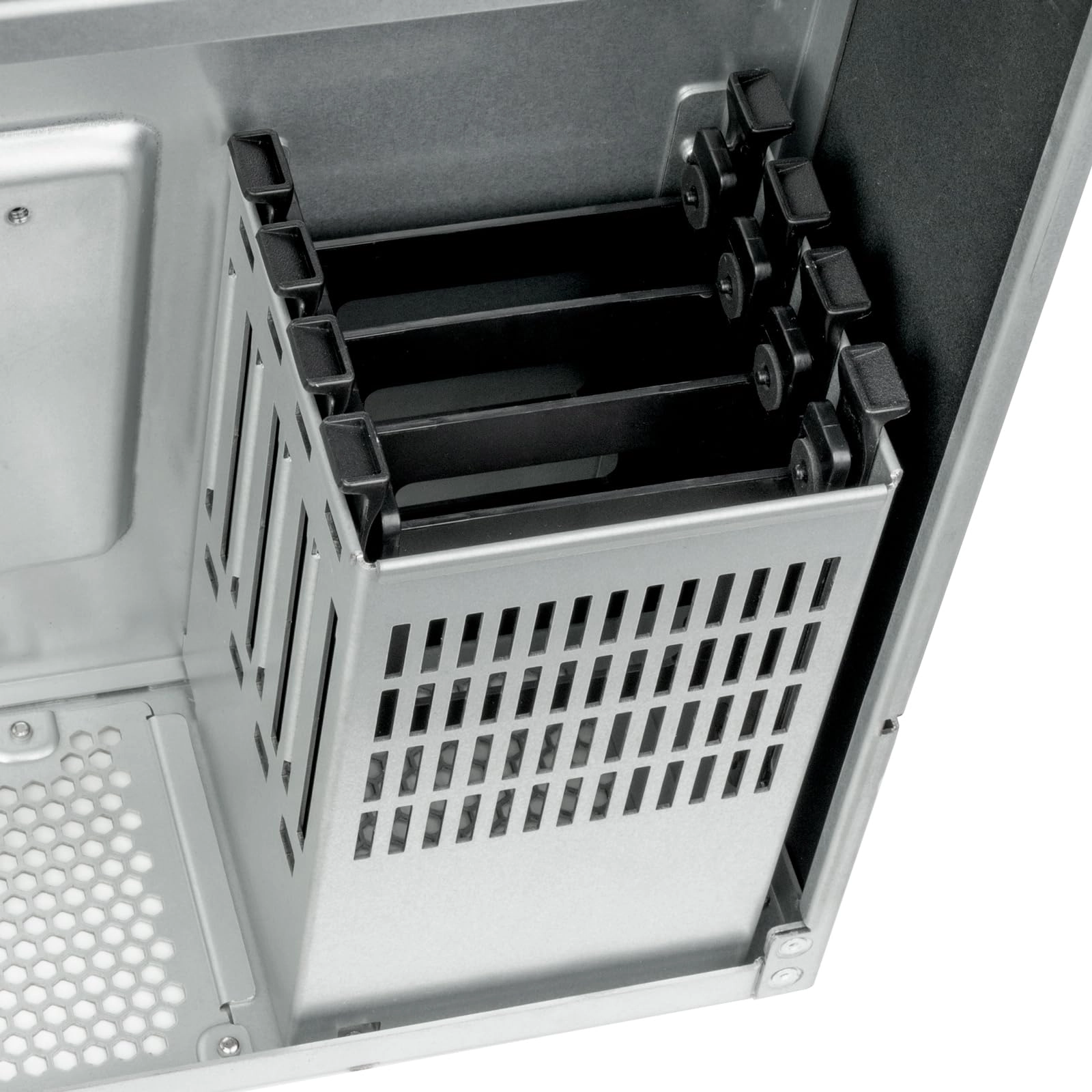

server-grade components. Regarding storage, the RM600 features a
drive cage that accommodates 4 x 2.5" SSDs. Below the motherboard
tray, there is a separate drive cage designed to house 6 x 3.5"
HDDs. With a total of 10 storage mounts, the RM600 provides
extensive storage options to meet diverse user needs. Another
notable feature of the RM600, located below the motherboard tray,
is dual PSU support. For the primary PSU slot, a PS2 (ATX), Mini
Redundant, or 2U redundant PSU can be installed. In contrast, the
secondary PSU slot only allows for an ATX (PS2) PSU. This feature
is beneficial for server ecosystems as it can provide extra boost
in performance and stability. Last but not least, the RM600 is
designed to be versatile, allowing for both vertical and
horizontal orientations. When positioned vertically, included
case feet provide stability, keeping the chassis still and
upright. In a horizontal orientation, the RM600 features two
handlebars with reserved mounting holes on the left and right
sides, facilitating the easy installation of sliding rails for
compatibility with server racks. In conclusion, RM600 is the
epitome of innovation and adaptability in the server chassis
market. The meticulous design, versatile configuration options,
and emphasis on cooling efficiency make the RM600 a standout
choice for various server applications. SilverStone's debut in
the 6U height form factor not only marks a significant milestone
for the company but also introduces a compelling solution for IT
professionals and enterprises seeking a reliable, feature-rich
rackmount chassis.
Review: Gigabyte RTX 4090 Not compatible with the case. - Nice
and solid Case, But it will not work on an NVIDIA RTX. The reason
is the wiring, You wont be able to close the case. Other than
that is a very good case.
