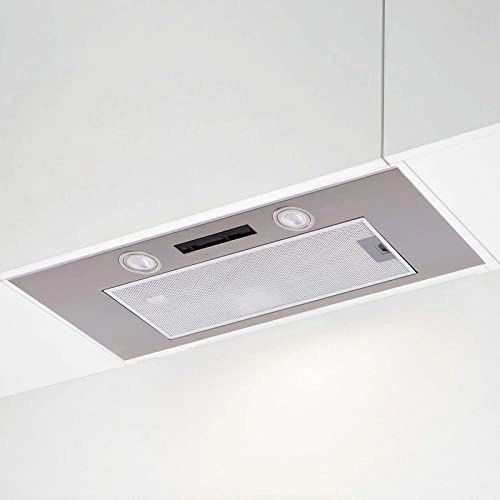

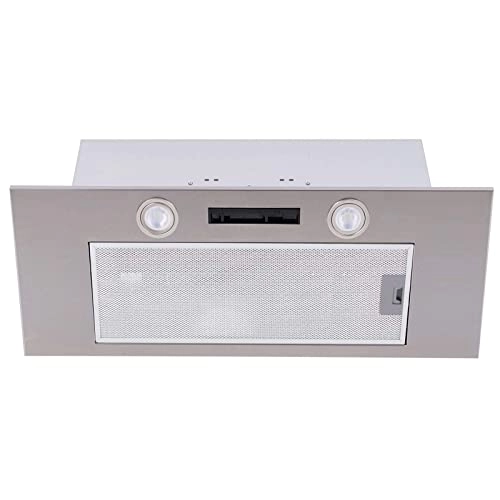

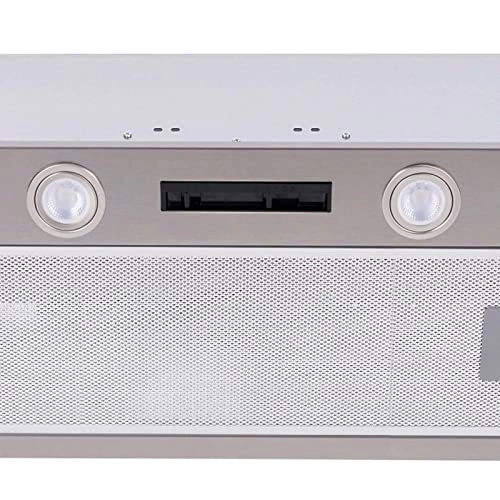

SIA CUP90SI - 850 m3/hr 898 mm

The CUP90SI is a 90cm wide under canopy cooker hood that will seamlessly blend in with your kitchen whilst providing powerful air extraction. Being mounted into a cupboard provides a minimalistic look, as only the bottom will be visible and the LED downlights can be left on when you are not cooking to provide a cool, ambient light in your kitchen.

This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

This cooker hood comes with a 2 Year Parts & 2 Year Labour Guarantee* to provide you with peace of mind.

Features

3 variable speeds Slider controls 2 x 2W LED lights Ducted or re-circulated installation 1 x dishwasher proof grease filter

Optional Accessories

2 x SIA2 recirculation charcoal filters available from our store D5 & D7 external ducting kits available from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob. Required height over gas hob (mm): 750 Required height over electric hob (mm): 650 Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.

Technical Specifications

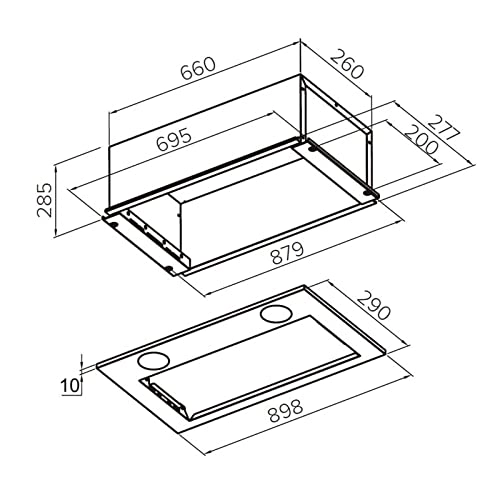

Ducting outlet diameter (mm): 150 Extraction rate (m³/hr): 850 Noise level (dBa): 67 Fuse rating (A): 3 Product dimensions (mm): W898 x D290 x H285 Net / gross weight (kg): 8.5 / 9.5 Power (W):184 Mains lead length (m): 1

Please note that there is no plug supplied with this product. *Guarantee subject to registration within 30 days of purchase.
