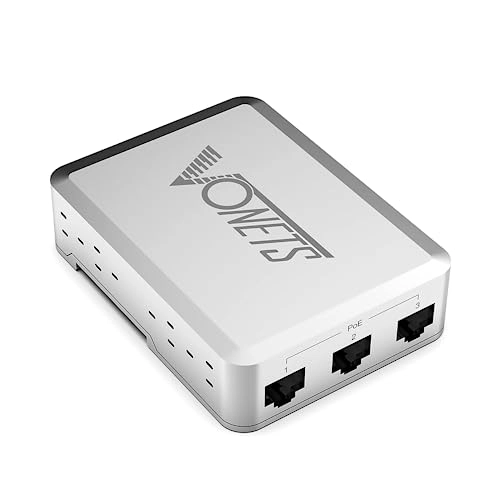

Shenzhen HouTian Network Communication Technology Co., Ltd. VSP500 - 5-ports

VONETS VSP500 is an Industrial 5 ports PoE Gigabit Switch Ethernet Network Switch Ethernet RJ45 Splitter 1. Industrial PoE Gigabit Ethernet Switches are designed for reliable and stable operation in harsh industrial environments, Plug & Play, Universal; 2. Support IEEE802.3/3i/3u/3x/3ab/3z/3af/3at protocol, support Gigabit 10/100/1000Mbps RJ45 port, full duplex/half duplex; 3. Support DC12V~48V wide power input, PoE output is valid only when the power input is 48V (≥96W); 4. The working temperature is -20°C~55°C, and the one-piece thickened aluminum alloy shell is more conducive to use in harsh industrial environments, with fast heat dissipation and durability; Power Input: DC input voltage 12V~48V Non PoE input power: DC12V~48V, ≥10W, 12V/1A With PoE input power: DC48V,≥96W, 48V/2A Input overvoltage protection: <54V~59V Load overcurrent protection: <3A Input reverse polarity protection (reverse voltage): <54V PoE Output: PoE Standard IEEE 802.3af/at PoE port maximum output power 30W The maximum output power of the whole machine PoE is 90W Precautions for using PoE: 1. If the product has PSE function (PoE output), it needs 48V power supply voltage and meets the power requirements of PoE output before it can be used; 2. If the network port of the product has a PoE output port, if it is connected to other non-PoE network ports, please use it with caution, and ensure that the access network port is isolated from the ground, otherwise it may cause damage to the connected product! A safe way is: let the product use a two-pin switching power supply without ground (AC to DC, AC input is two-pin instead of three-pin). Package: VSP500*1+ Industrial DC connector*1 +User manual *1 + Retail box *1
