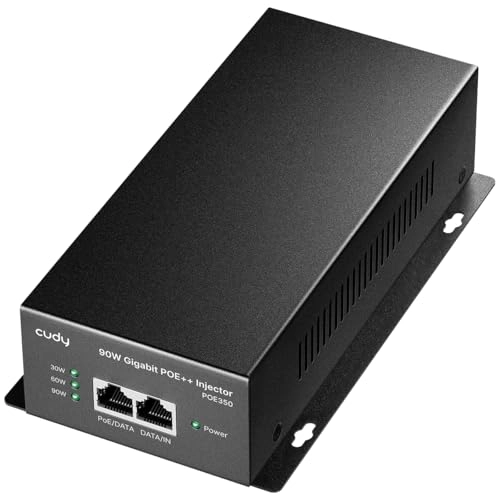

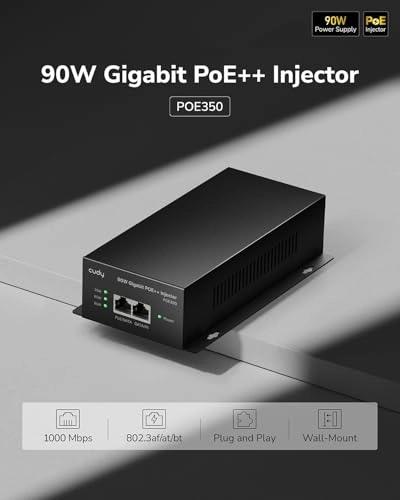

Shenzhen Cudy Technology Co., Ltd. POE350 - 48V ~ 52V 90W 1 port IEEE 802.3af/802.3at/802.3bt 10/100/1000Mbps

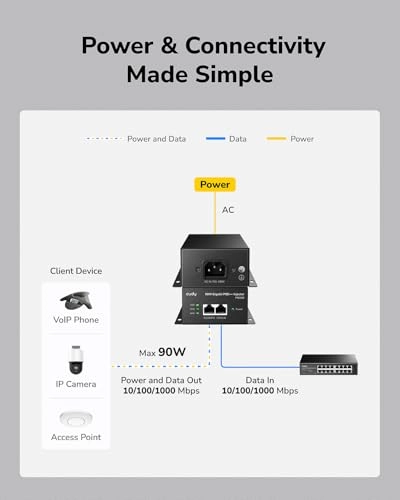

The PoE++ Injector is a single port PoE injector offer a compact solution, it can convert standard 100~240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE802.3 bt/ af / at compliant network accessories.

Model: POE350

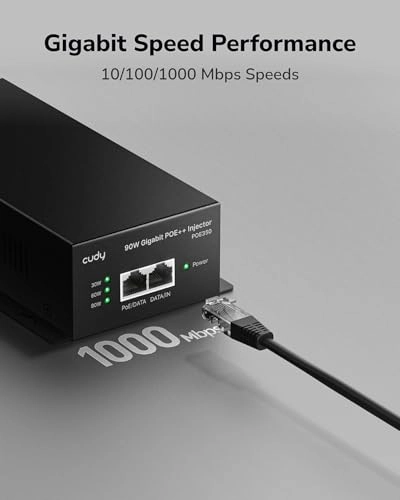

Data Rate:10/100/1000Mbps

Connectors: Shielded RJ-45, EIA568A and 568B

Power over Ethernet Output :

- Pin Assignment and Polarity: 1/2 (+), 3/6 (-),4/5(+), 7/8(-)

- Output Power Voltage: 52VDC

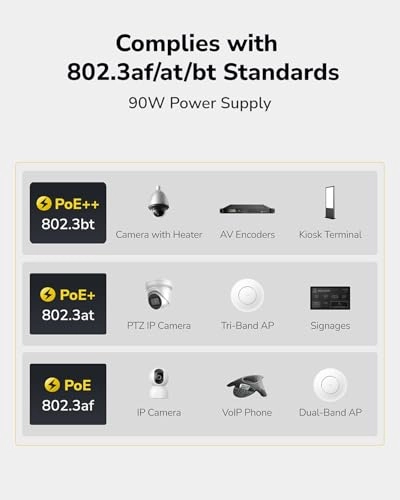

- IEEE 802.3af (15.4W)

- IEEE 802.3at (30W)

- IEEE 802.3at 4 pair (60W)

- IEEE802.3bt (90W)

Input Power Requirements:

- AC Input Voltage: 100 to 240 VAC

- AC Input Current: 1A 100-240 VAC

- AC Frequency: 50 to 60 Hz

Indicators:

- System Indicator: AC Power

- User Indicator: 30W / 60W / 90W

Protection:

- Over current protection

- Over load protection

- Over voltage protection

- Anti-interference protection

Environmental Conditions:

- Operating Ambient Temperature: 0 to 40°C

- Operating Humidity: Maximum 85%, Non-condensing

- Storage Temperature:-20 to 70°C

- Storage Humidity: Maximum 90%, Non-condensing
