SEENGREAT OV9726

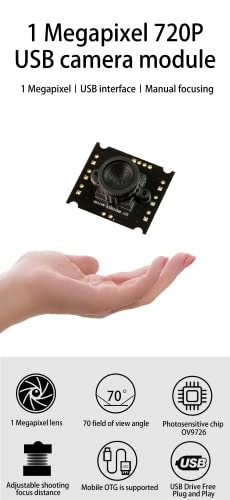

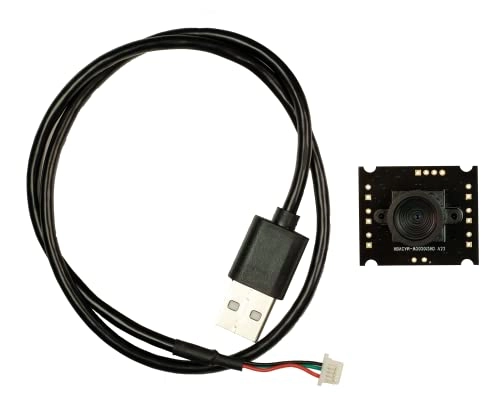

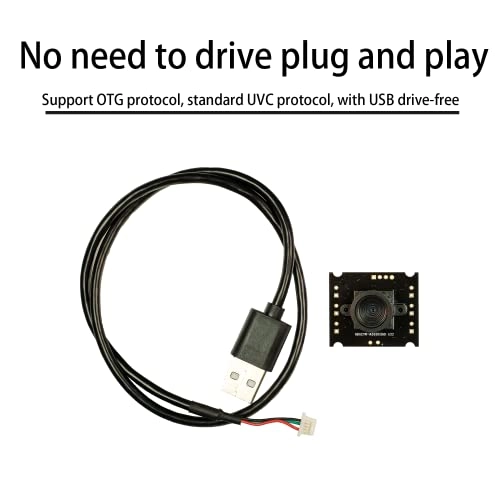

Overview: This USB Camera Module adopts the CMOS image sensor OV9726 produced by OmniVision Technologies. The high-definition camera has 1 megapixel, onboard USB 2.0 interface, which can adjust the focusing distance of shooting and adopt the fixed focusing mode (manual focusing), supporting the Win XP/Win7/Win8/vista/mac/Linux with uvc/Android4.0/Jetson Nano operating system. Specifications: Size: 30mm(Length)*25mm(Width)*11.3mm(High)±0.3mm Temperature (operation): -30℃~70℃. Temperature (stable image): 0℃~50℃. Assembly technique: SMT (rosh). Focus: fixed. Object distance: 30 cm infinity. Resolution: 600LW/PH (centre). Interface: USB 2.0. Power supply: USB bus power. Supply voltage: DC 5 V ± 5 %. Maximum power consumption: 650 mW. Operating System Request: Win XP/Win7/Win8/Vista/Mac/Linux with uvc/Android 4.0/Jetson Nano Sensor: OV9726 (1/6.5 inches). Sensor Package: CSP, Bare Die Maximum resolution: 1280 x 720. Sensitivity: 1300mv/(lux-sec) Pixel size: 1.75µm x 1.75µm. Maximum image transfer rate: MJPEG 320x240 30FPS /YUY2 320x240 30FPS MJPEG 640x360 30FPS /YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS /YUY2 800x600 15FPS MJPEG 1280x720 30FPS /YUY2 1280x720 10FPS MJPEG 1280x800 30FPS /YUY2 1280x800 10FPS S/N ratio: 36 dB. Max dynamic range: 70 dB. Shutter type: Electronic rolling shutter AGC/AEC/Whiter Balance: Auto Output formats: YUY2/MJPEG. Microphone: No. Lens construction: 3P. F/No: 2.8. EFL: 2.8 mm. FOV: 70°. TV distortion: <1.0%. Relative illumination (sensor): 70%. IR filter: 650±10nm Package: Anti-electrostatic tray. Package contents: 1. OV9726-U1M-70 (fixed focus) x1. 2. USB to HX1.25-5P connecting cable x1.
