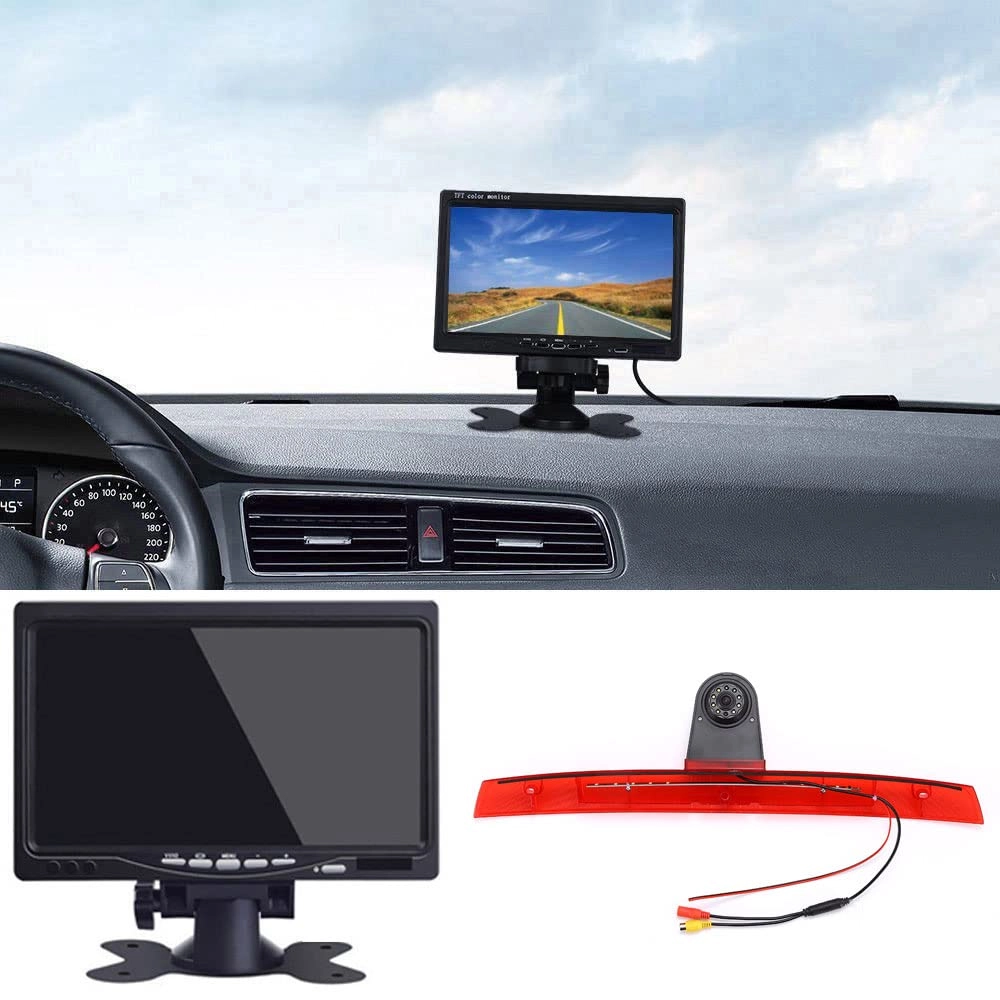

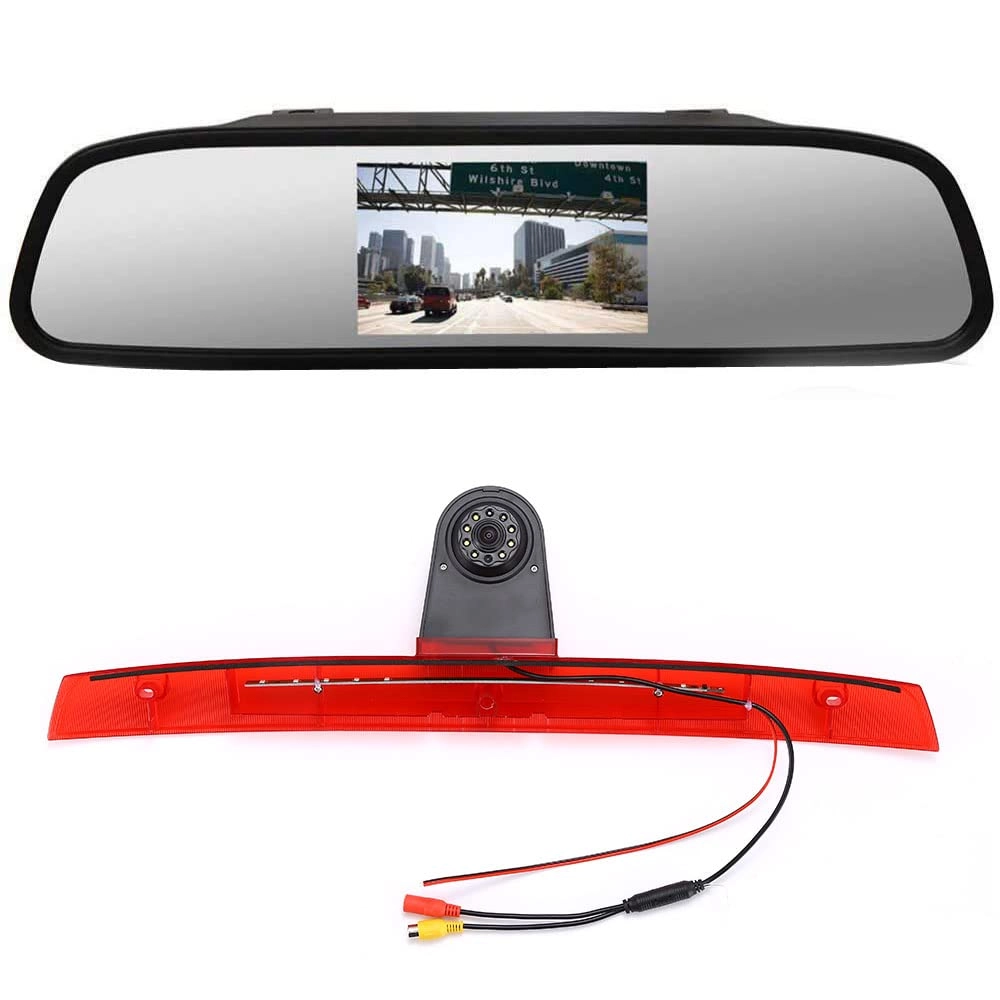

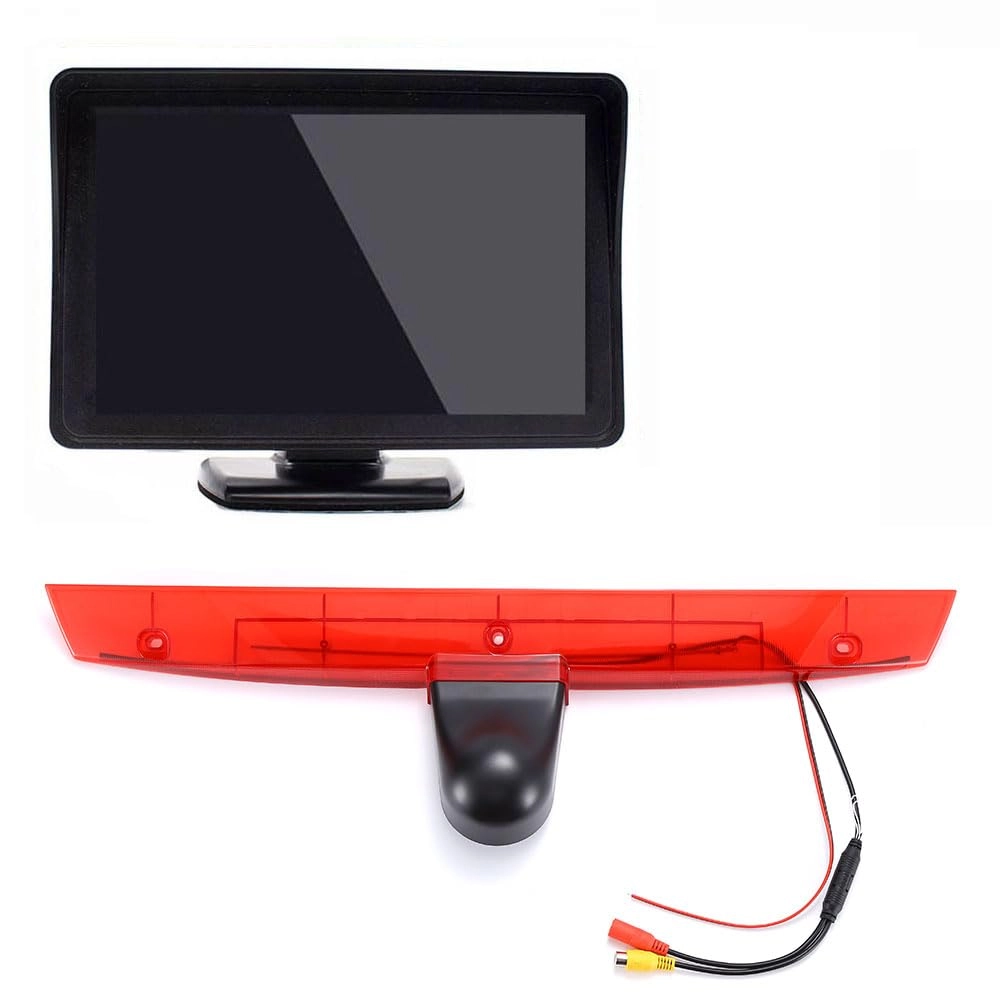

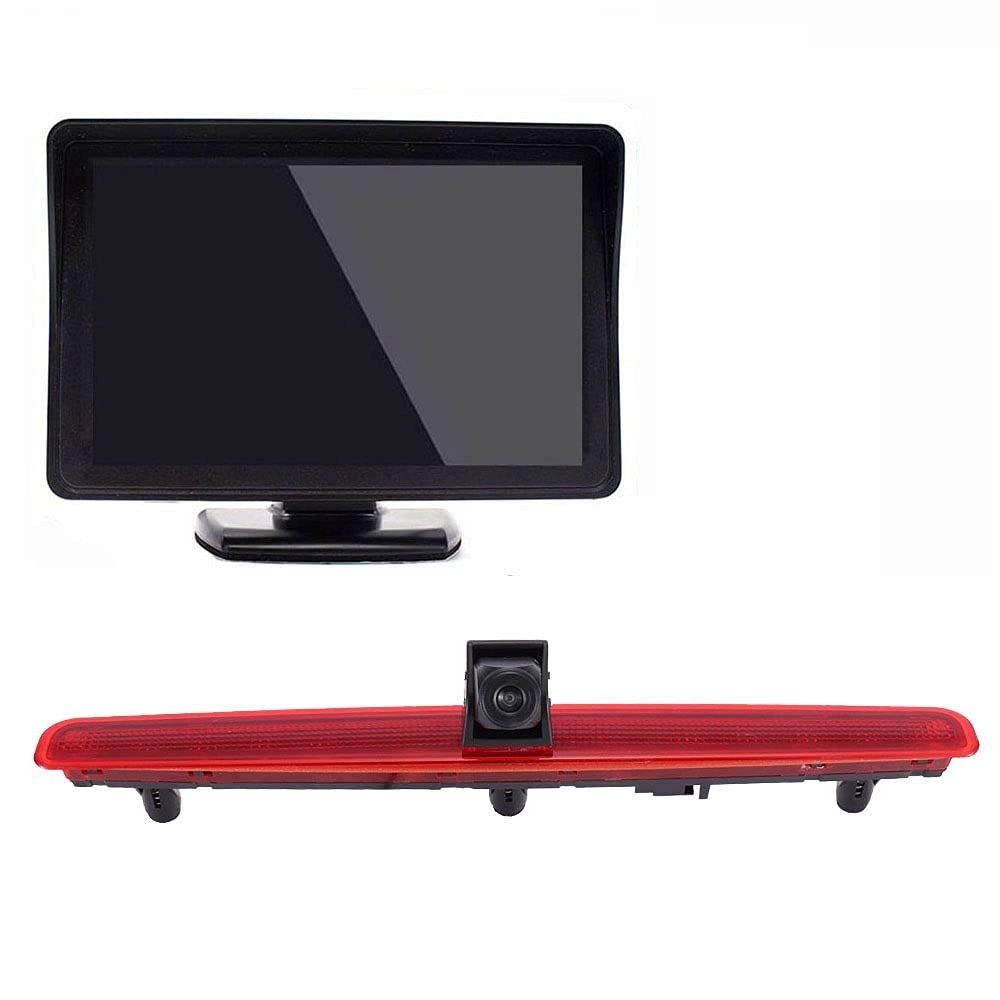

sedodogo TFT LCD monitor - 4.3 inch + rear view camera - Night vision wireless 628 x 586 pixels

All cameras are checked before they are sent to you.

Replacement for: VW T5 Bus Transporter Multivan Caravelle

Business with tailgate third 3. brake lei

(Not Wing Turer) 2003-2015 year of manufacture

Specification:

• Image sensors: 1/4 inch colour CCD
• TV system: NTSC and PAL
• Camera lens: 12 mm.
• Effective pixels: 628 x 586
• Resolution: 520 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67.
• Working power (DCV): 12.
• Power consumption: 90 mA max.

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

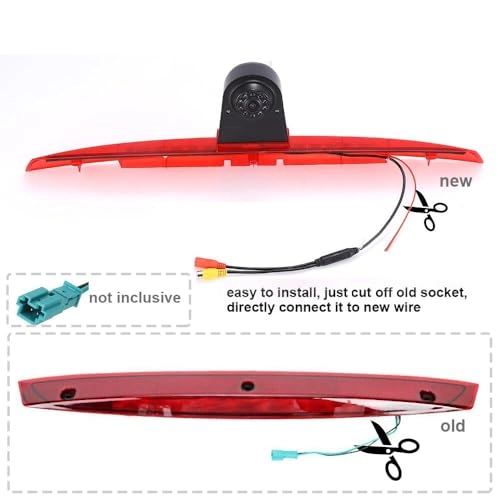

3. Connect the power cable (red and black) to the power cables of your vehicle's lighting.

4. Connect the video cable (yellow) to the screen.

Distance lines:

The camera has no distance lines by default.

If you need distance lines, you can cut off the white line next to the camera and the distance lines will be displayed.

Packing list:

• 1 x 4.3 inch TFT LCD monitor.
• 1 x power cable (for monitor).
• 1 x user manual (for monitor).
• 1 x car rear view camera.
• 1 metre DC cable (for camera).
• 8 meter AV cable (for camera)
