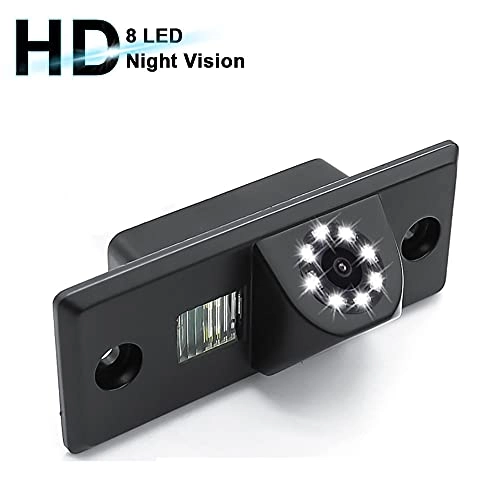

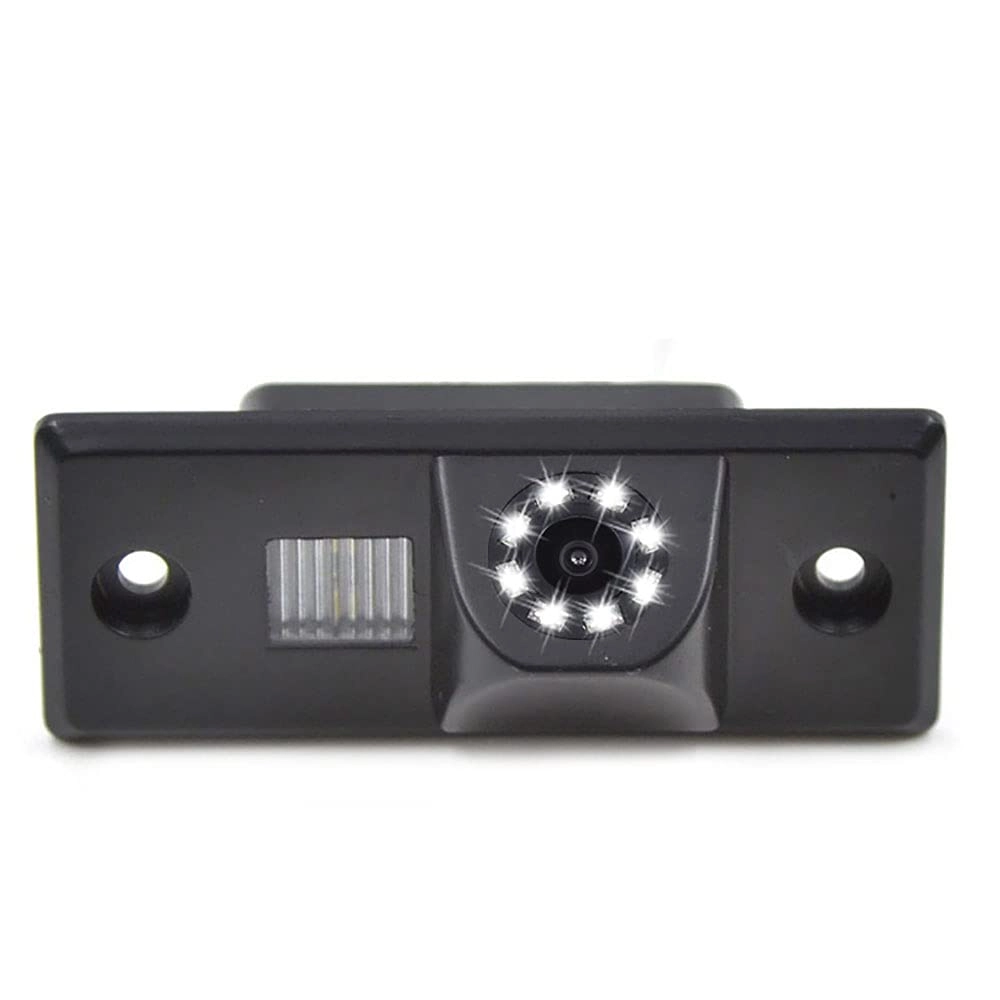

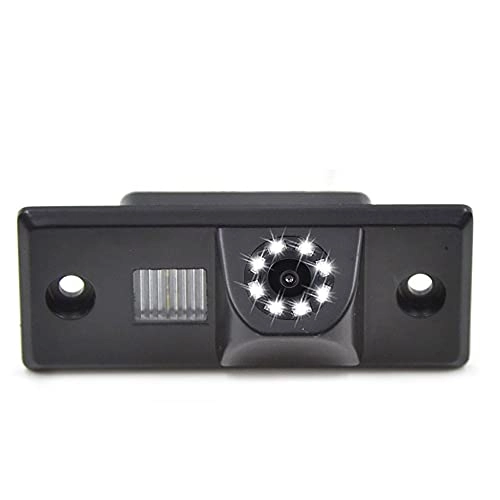

sedodogo SG-8062LED - Night Vision Wireless 628 x 586 pixels

All cameras are checked before they are sent to you.

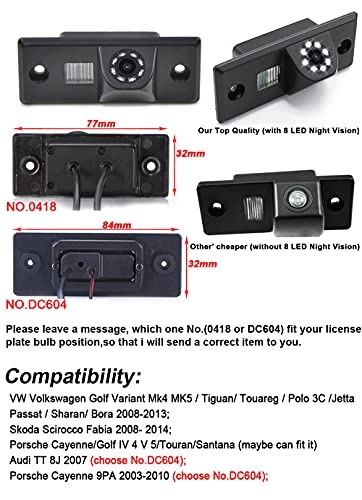

Replacement for: VW Golf Variant MK4 MK5/Tiguan/Touareg/Polo 3C/Jetta;

Replacement for: Passat/Sharan/Bora 2008-2013;

Replacement for: Skoda Scirocco Fabia 2008-2014;

Replacement for: Porsche Cayenne/Golf IV 4 V5/Touran/Santana (maybe can fit it);

Replacement for: Porsche CayennePA 2003-2010 (83 x 30 mm cannot fit it, do not buy).

Specification:

• Image sensors: 1/4 inch colour CCD
• TV system: NTSC and PAL
• Effective pixels: 628 x 586
• Resolution: 520 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67.
• Working power (DCV): 12.
• Power consumption: 90 mA max.

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

3. Connect the power cable (red and black) to the power cables of your vehicle's lighting.

4. Connect the video cable (yellow) to the screen.

Distance lines:

The camera has no distance lines by default.

If you need distance lines, you can cut off the white line next to the camera and the distance lines will be displayed.

Packing list:

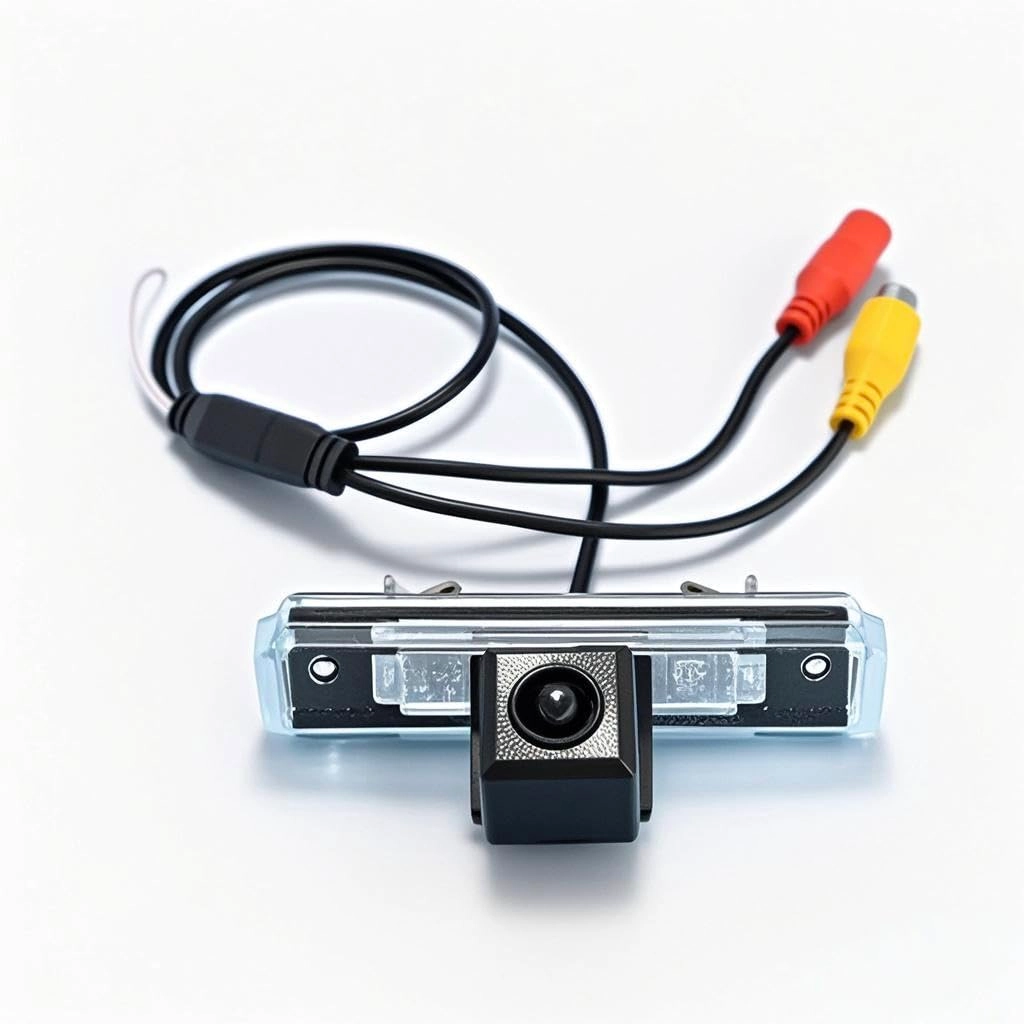

• 1 x CCD car rear view camera.
• 1 x 8 m video cable.
• 1 x power cable.
• 1 x user manual (English language not guaranteed).
