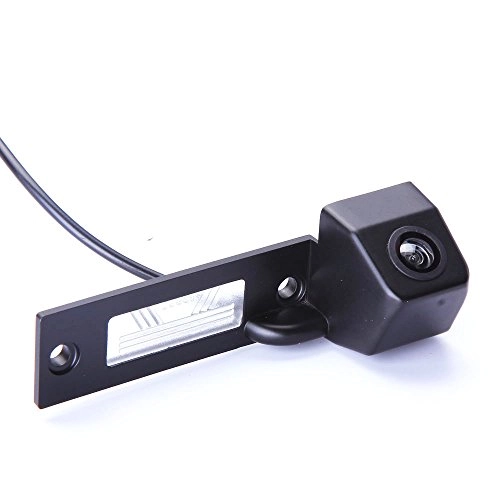

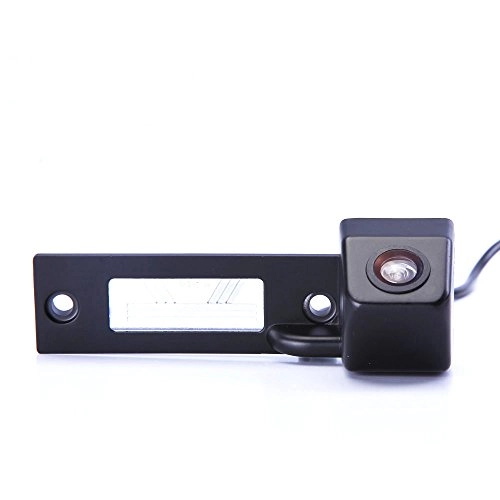

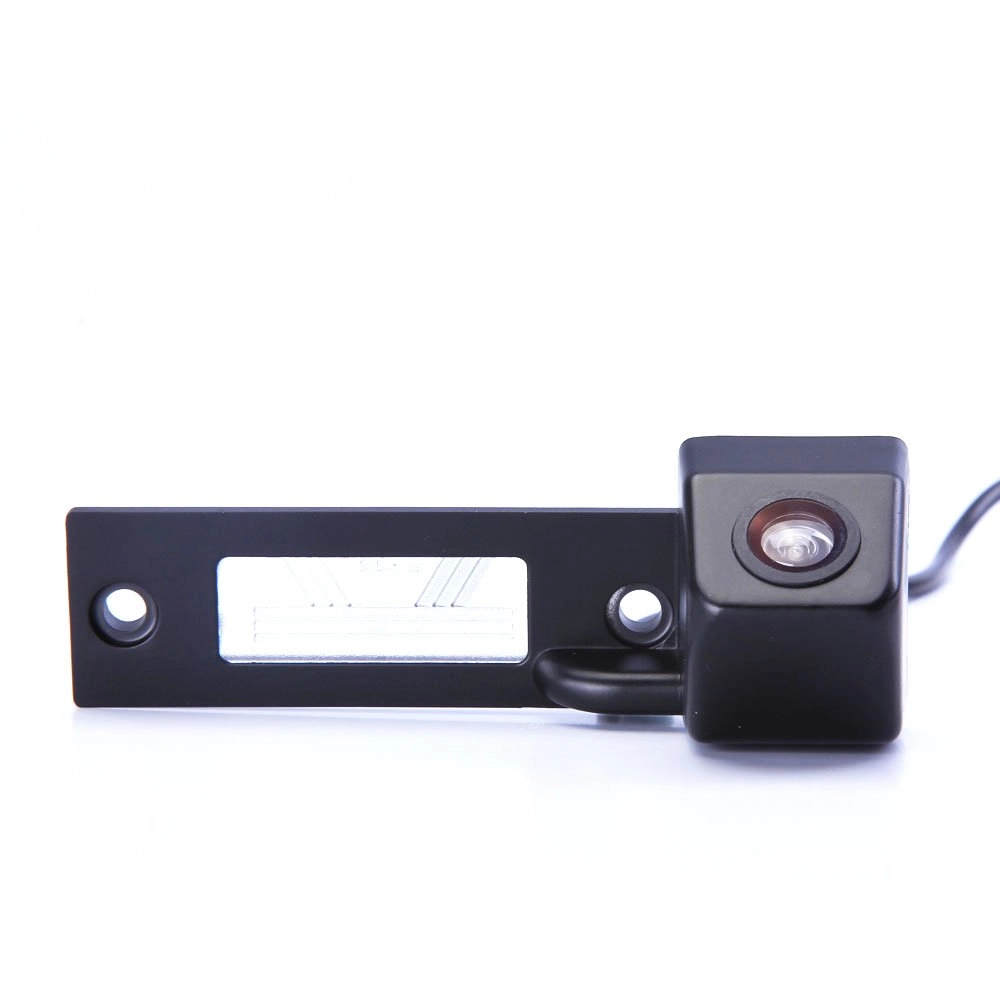

sedodogo Handle Strip Camera - Night Vision Wireless 628 x 586

All cameras are checked before they are sent to you.

Replacement for: VW Golf Plus MK5 2005-2009;

Replacement for: VW Jetta III V 2006-2010;

Replacement for: VW Touran 1T GP 1T2 2003-2010;

Replacement for: VW Passat 3C B6 C3 Variant Wagon 2.0 TBI 2006-2008;

Replacement for: VW Jetta 2006-2010.

Part numbers TD827574A, 1TD 827 574A, 1T0827574C, 1T0827574L, 1T0 827 574

Specification:

• Image sensors: 1/4 inch colour CCD
• TV system: NTSC and PAL
• Effective pixels: 628 x 586
• Resolution: 520 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67.
• Working power (DCV): 12.
• Power consumption: 90 mA max.

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

3. Connect the power cable (red and black) to the power cables of your vehicle's lighting.

4. Connect the video cable (yellow) to the screen.

Distance lines:

The camera has no distance lines by default.

If you need distance lines, you can cut off the white line next to the camera and the distance lines will be displayed.

Packing list:

• 1 x CCD car rear view camera.
• 1 x 8 m video cable.
• 1 x power cable.
• 1 x user manual (English language not guaranteed).
• 1 x long handle trunk.
