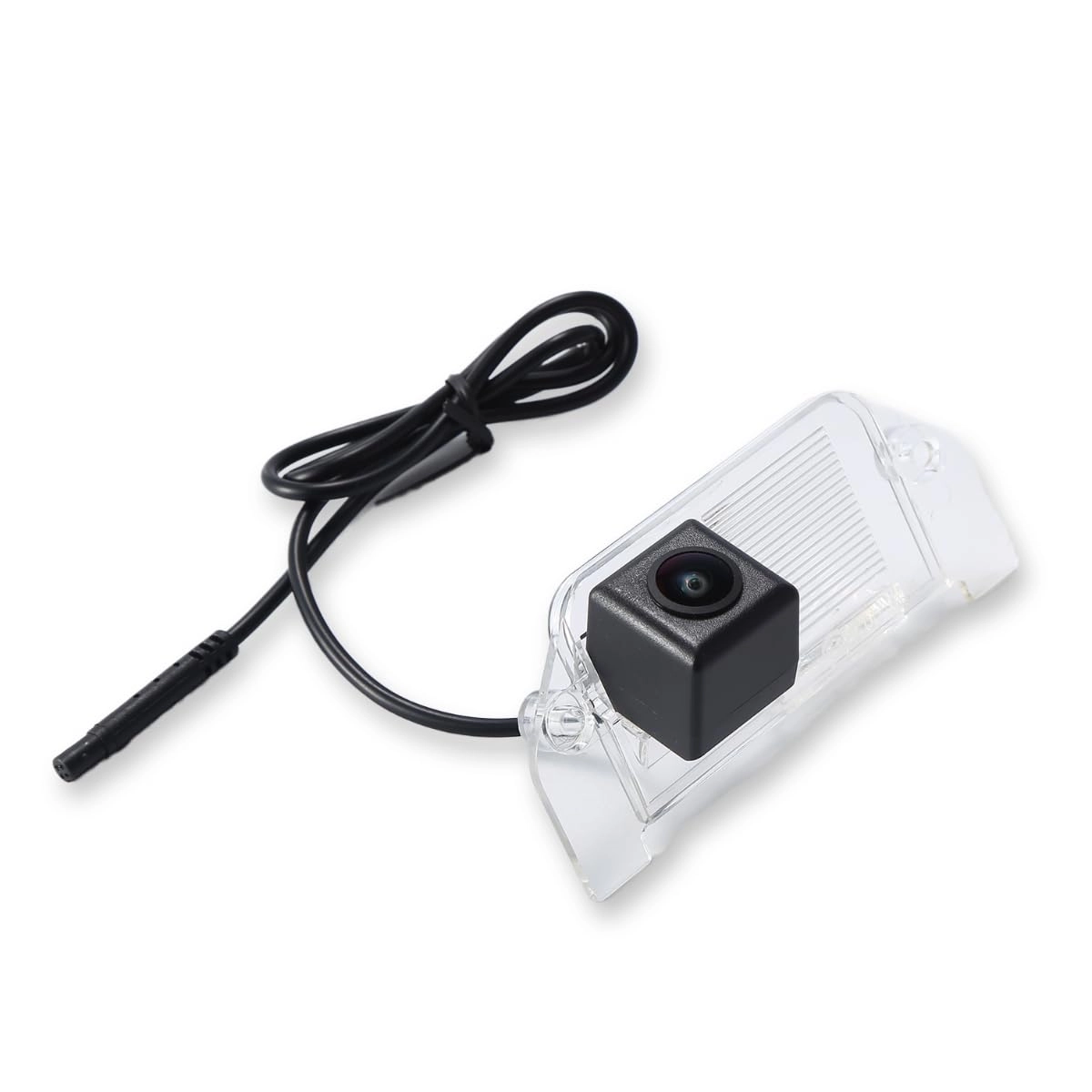

sedodogo SG-01578 - Night vision RCA 1280 x 720 pixels

All cameras are checked before they are sent to you.

The size difference between the two cameras:

• Size 110 small 50 mum = model 01578.
• Size 110 small 32 mum = model 01678.

【01578】Replacement for

Audi A4 B8;

VW Tiguan 2008, 2013, 2015, Tiguan 5N facelift.

VW Golf VI Variant from 2010, VW Golf 6 Plus year of manufacture 2014, Golf Plus year 2007, Golf Plus year 2011, Golf Plus year 2013;

VW Jeta 2011, 2012;

VW Passat from 2011, Passat 1/2007 Variant, Passat 3c Variant 2010, Passat Variant 3c B7 2011, Passat B7 2012, Passat Estate Year 2012;

VW Sharan year 2011, Sharan year 2013;

VW Touran 2011, 2012, 2013, 2014, 1T2, 1T3 2011;

VW Touareg 2011;

VW Lavida.

VW Sagitar;

VW T5 Facelift.

Unsuitable:

Golf 5 Variant.

VW Caddy year of manufacture 2018.

Golf Plus 2005

Audi 4

Passat 3c year of manufacture 2007.

Golf 6 variant.

Audi A5 B8 Coupé BJ. 2013

Audi A6 4F Estate

Specification:

- Image sensors: 1/4" colour CCD

- TV system: NTSC and PAL

- Effective pixels: 1280 x 720

- Resolution: 1000 TV lines

- Video output: 1.0Vp-p, 75

- Waterproof: IPX 68

- Working power (DCV): 12

- Power consumption: 90 mA max.

Distance lines:

The camera has no distance lines by default.

If you need distance lines, you can cut off the white line next to the camera and the distance lines will be displayed.
