canying CA-ZH820L - RCA 648*488 pixels

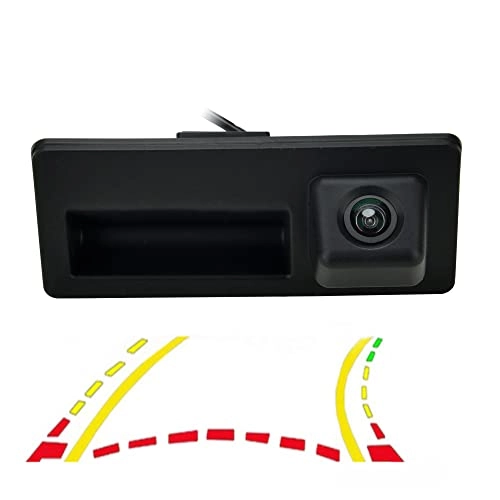

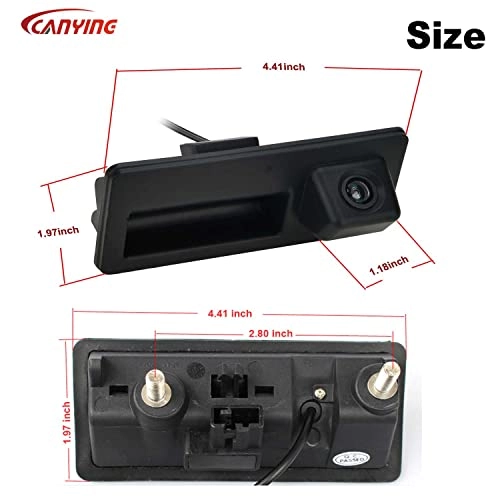

Special Trunk handle CCD Car Rear View Dynamic Trajectory Moving Guide Line Camera Note: For after installed medias or screens with RCA video input only, NOT for orignal Car media! It can be added with a Camera 12V DC Power Adapter Filter Rectifier to solve flickering problem if the screen flickers Important: Compare the car handle size with camera size(Length: 11.2cm/width: 5cm). Suggested car models: for Audi A4(8K) / A5 / S5 (8T) / Q5 / Q3 / A6L / A8L / RS6 for Volkswagen Tiguan for Volkswagen Golf VI Variant from 2010 / Golf Plus from 2012 for Volkswagen Jetta 2011 for Volkswagen Passat from 2011 for Volkswagen Sharan 2011 for Volkswagen Touran 2011 for Volkswagen Touareg 2011 for Volkswagen Lavida for Volkswagen Sagitar (We have size picture but please allow 0.5-1 inch difference due to manual measurement.Please check and make sure the item is the one you need) Technical parameters Sensor:1/3” PC 1099 Image Sensor Effective Pixels:976(H) x 496(V) Resolution:650 TV lines Lens Angle:170°(D) Minimum Illumination:0.5 Lux Exposure Control: AES(auto electric shutter),1/60 ~ 1/100,000 sec. White Balance:Auto Gain Control:Auto Video Output:1.0Vp-p, 75 Ohm Working Voltage:DC 9-16V Power Consumption:100 mA / DC12V Operation Temperature:-30°C ~ +70°C Storage Temperature:-40°C ~ +85°C Waterproof:IP 67 Electronic shutter: NTSC The product is easy installation and assembly, but Note: 1.This product is a 12V voltage. 2.When installing the product,be sure to use the specified drill,screws,etc. to avoid damage to the camera function Unique Design:This backup camera is with Guide Line (Yes/No) Switcher. It is with Guide line as default. Remember to turn off the power before switching 1.If you need a backup camera with distance scale line,you just install it without any operation. 2.If you need a backup camera without distance scale line,please cut the white wire.
