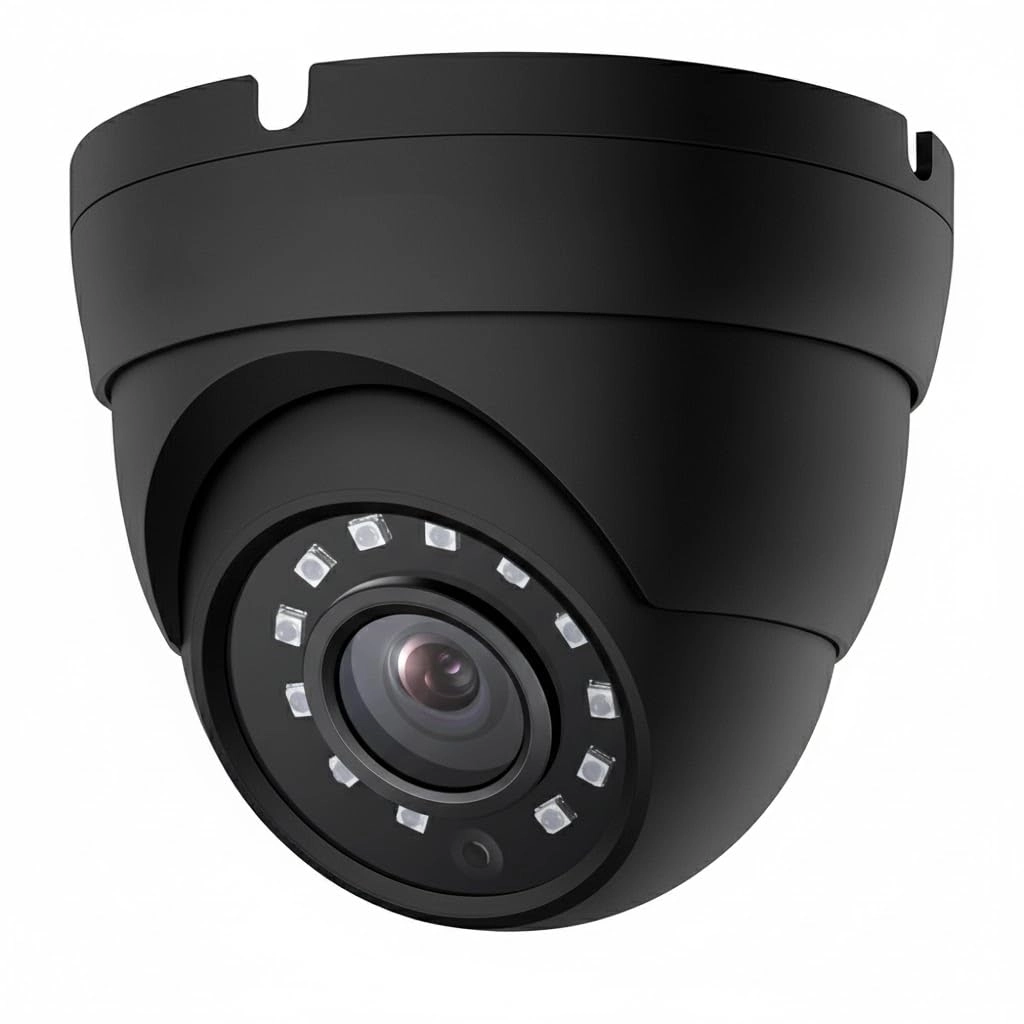

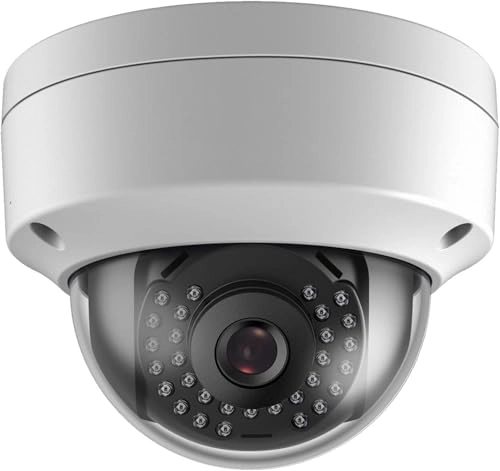

Real HD HD-2EB28B

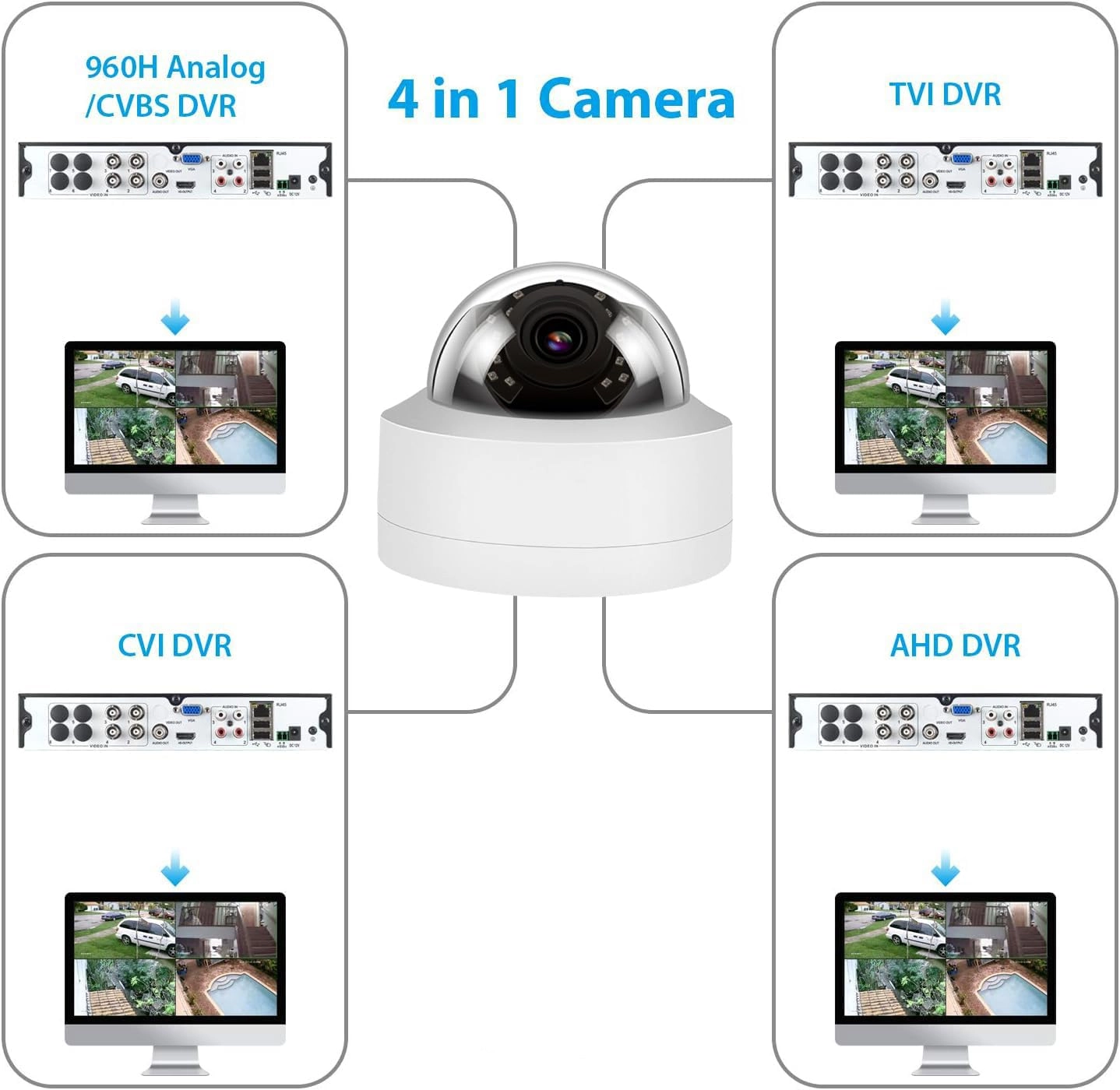

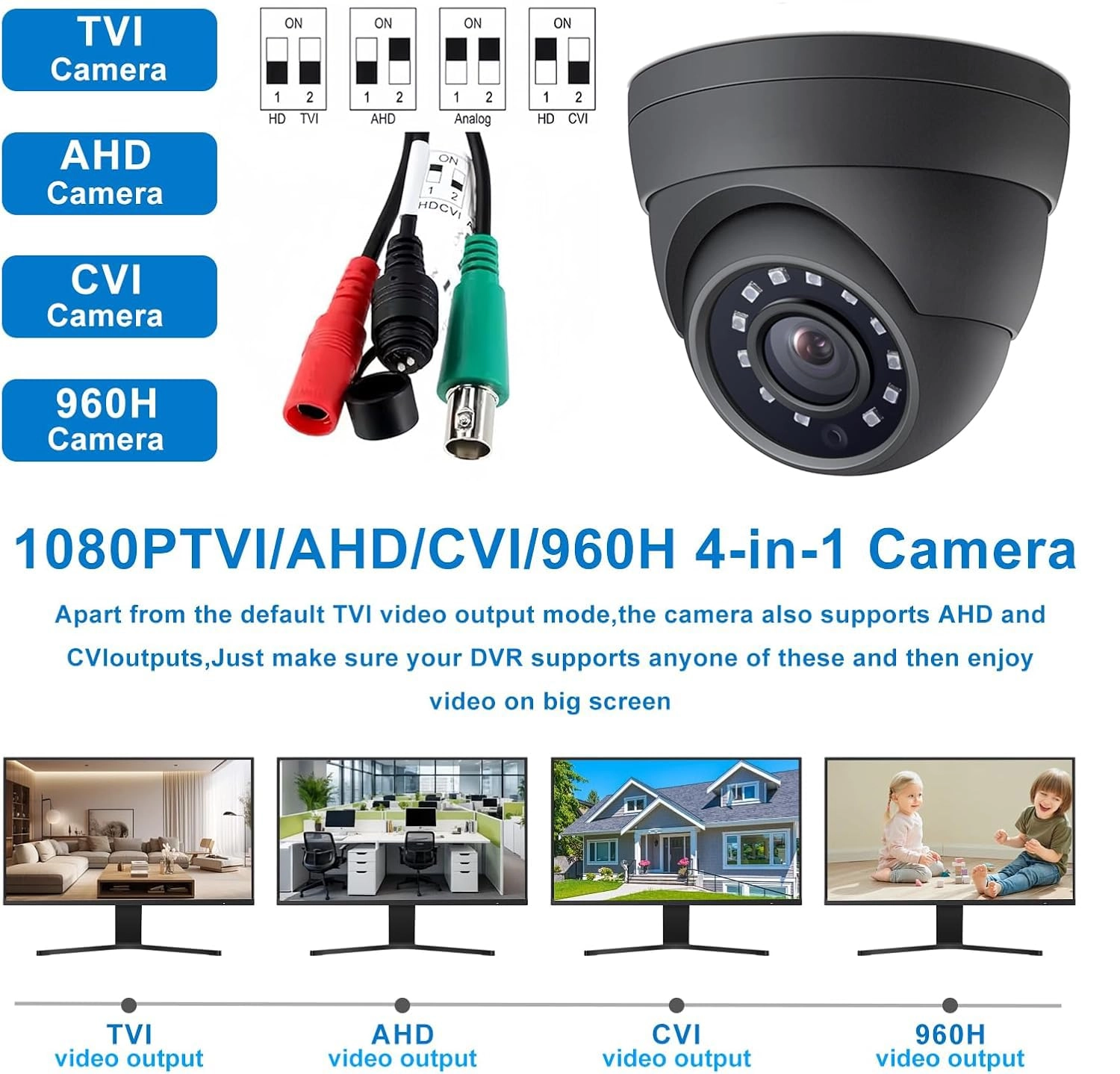

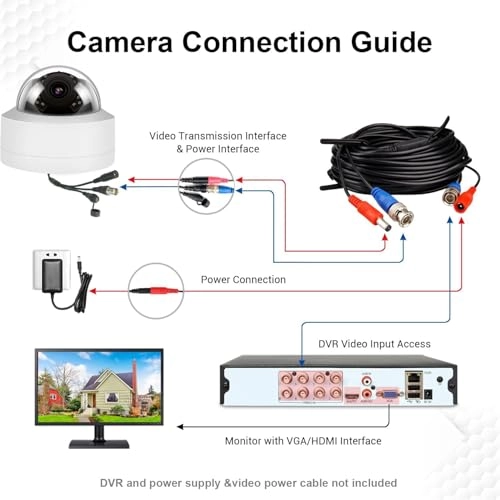

You must know before you buy: 1. This 4-in-1 security camera requires a DVR for recording video. It supports 1080P TVI DVR,HD CVI DVR, AHD DVR, and 960H DVR. It does not support IP NVR. 2. In TVI, CVI, AHD DVR Mode, camera resolution is 1080P. In CVBS (960H) mode, resolution is 1000TVL.3. Camera resolution is 1080P. If connect to 720P DVR or 960H DVRS, it won’t work. Please make sure your DVR supports 1080P TVI/CVI/AHD signal input otherwise switch camera to Analog. 4. If need to remote view by App, customer needs to use the APP of DVR Technical Parameters: - 1/2.9" CMOS sensor - Resolution: 1920x1080 - 65ft IR Range - TV System: NTSC - Video Output: HD-TVI(1080P),(AHD/TVI/CVI/CVBS) - Day &Night: Support (ICR) - Frame Rate: 25fps (50HZ), 30fps (60Hz) - Min illumination: 0.1lux(LED ON) 0.01lux(0-3 lux LED) - S/N Ratio: >52dB (AGC off) - Electronic Shutter: Auto 1/50s (1/60s)-1/100.000s - White Balance: Auto - Gain Control: Auto - Weatherproof for indoor/outdoor - Power Supply:DC12V 1000mA 4 in 1 video model, provides flexible for your security applications HD-TVI/ CVI/AHD/960H technology delivers zero latency HD video over RG59 coax or any standard analog CCTV cabling up to 1600’. With convenient DIP Switch control of settings over coax cabling, you can eliminate the need for a separate cable. Note: This camera does not have recording or remote view feature, require DVR for recording, not wireless and do not support mobile view. Default mode is HD AHD, if you are using other type of DVR, like Analog DVR, please switch the video type follow the user manuals. Package included: 1 x Dome camera 1 x Bag of mounting screws 1 x Installing Template 1 x Manual Review: Picture comes in real clear - Good security camera good picture come in real clear excellent Review: A Little Hard to Install But Worth It. - It is a good wide angle,easy to connect and set to the right channel/camera system which for my luck came already set so it was plug and play. The price is fair now Now to set up the camera on the right angle it is a pain, once you find the camera top and bottom(make sure to mark it with a pen) then the ball camera needs to be held in position while screwing the ring tight. Once is tightened and if the camera comes out of angle then the ring needs to be unscrewed and you will need to reposition the camera ball and repeat the process of tightening the ring. So before going all hands handy man put a mark on the camera to line everything up right out of the box and the reason is because of the wall mounting ring and the camera ball. And really it is a camera ball that needs to be play with for the desired angle then hold and tighten. It took me about five minutes and a couple of bad words! Definitely recommend it if you are a handy person and own a cvt system. All function as mandated. Does track motion detection and face recognition with my system HeimVision.
