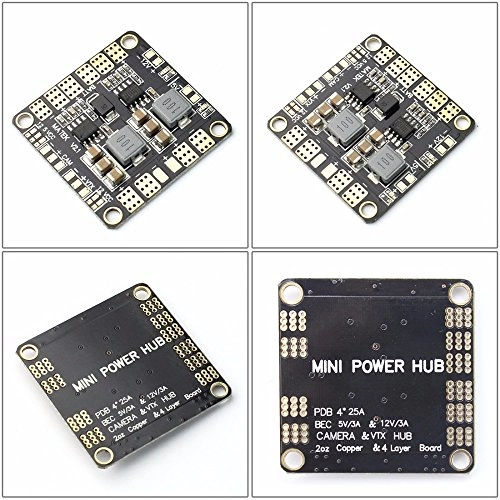

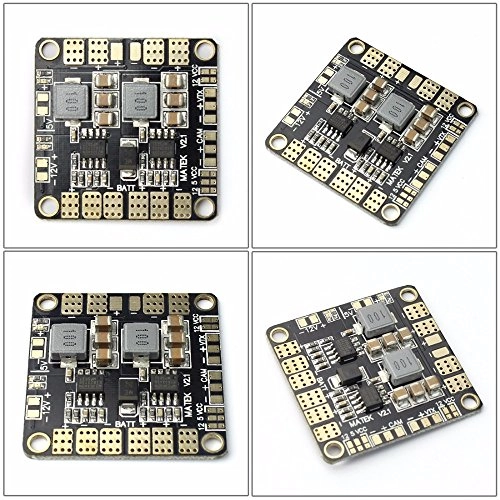

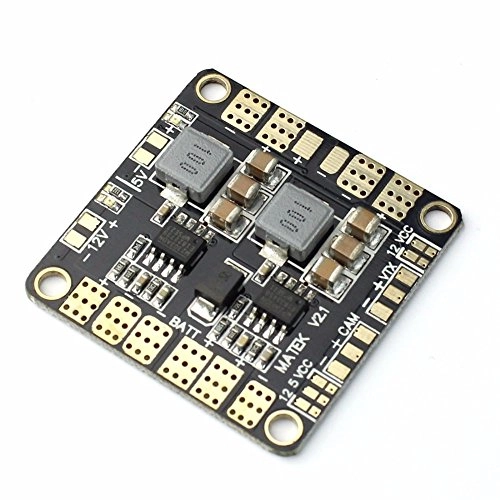

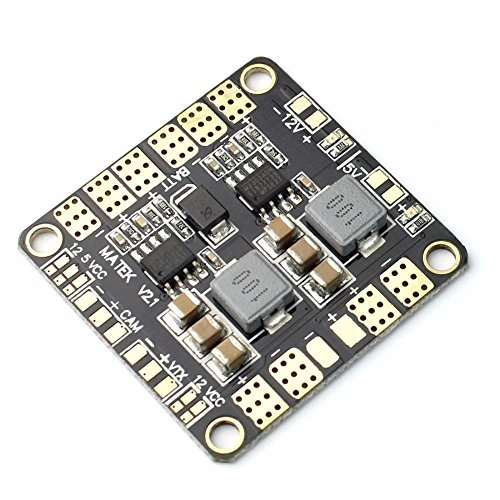

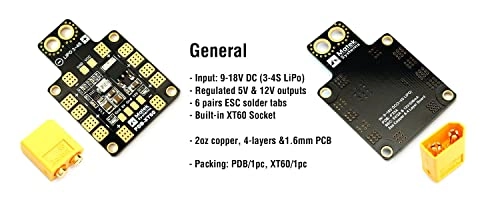

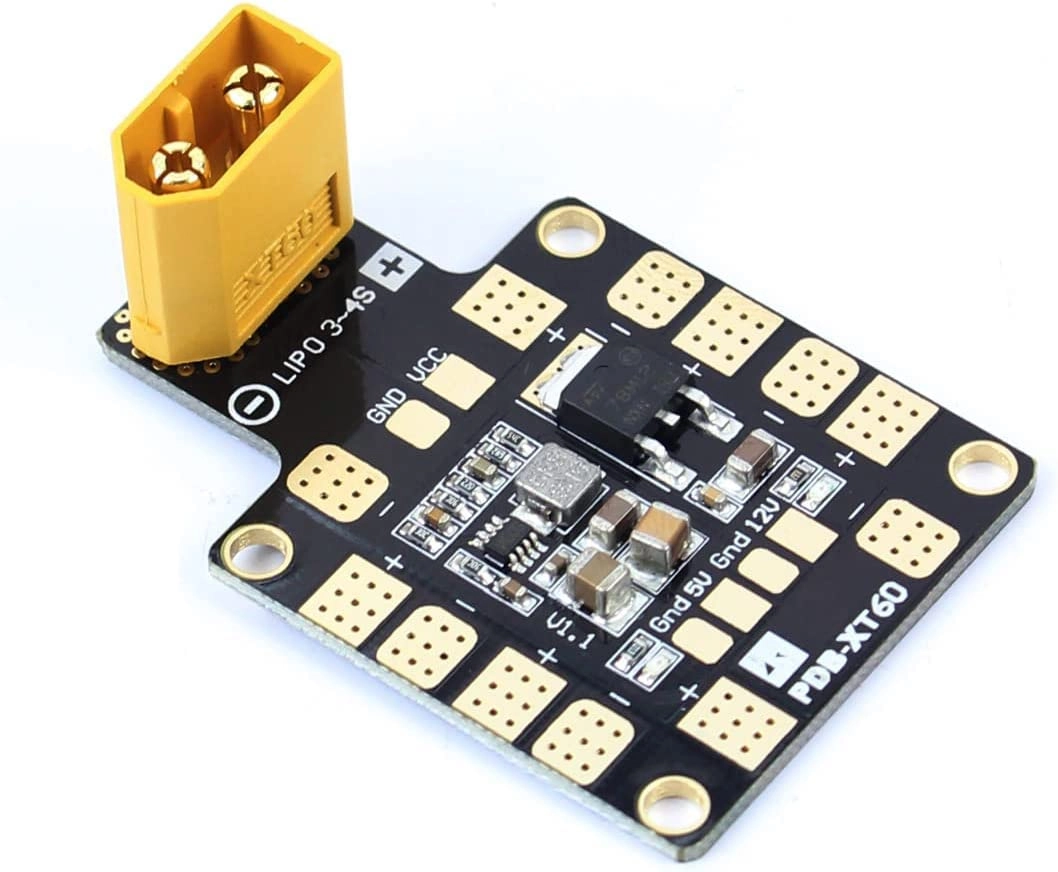

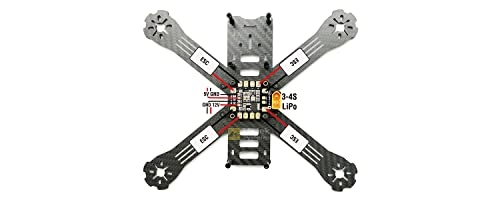

QWinOut Power Distribution Board PDB

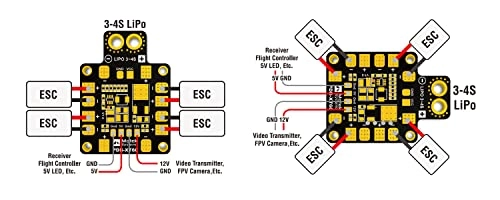

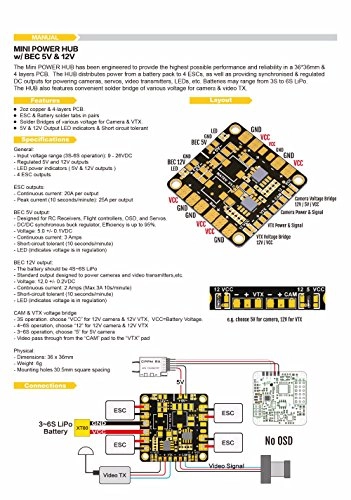

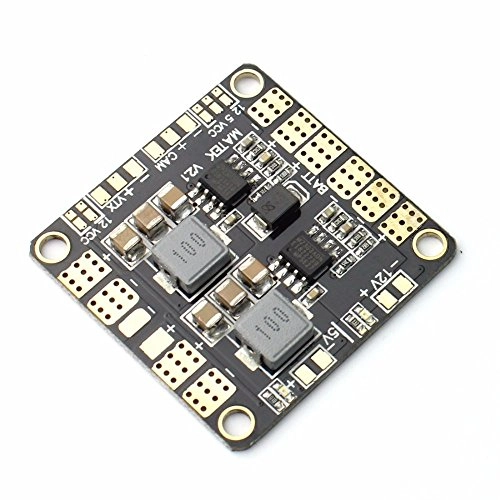

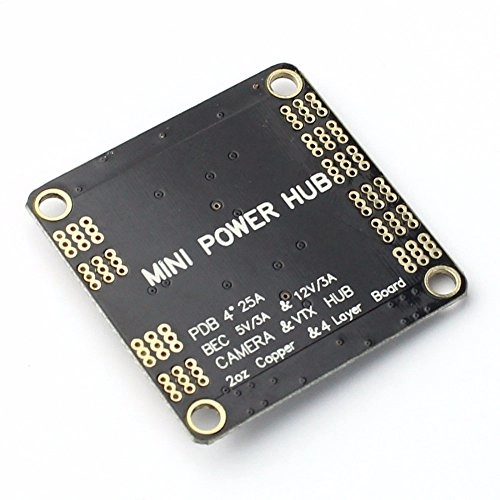

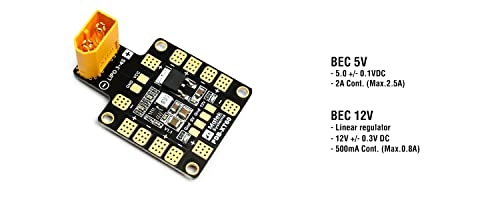

Features: - 2oz copper & 4-layers PCB. - ESC & Battery solder tabs in pairs - Solder Bridges of various voltage for Camera & VTX. - DC/DC synchronous buck regulator, Efficiency is up to 95%. - TVS(Transient Voltage Suppressor) protection for DC/DC chip. - 5V & 12V Output LED indicators & Short circuit tolerant Specification: - Input voltage range (2S-6S operation): 7.2 - 26VDC - Regulated 5V and 12V outputs. - LED power indicators (5 V & 12 V outputs). - 4 ESC outputs ESC outputs: - Continuous current: 20 A per output. - Peak current (10 seconds/minute): 30A per output BEC 5V output: - Designed for RC Receivers, Flight Controllers, OSD, and Servos. - Voltage: 5.0 +/- 0.1VDC. - Continuous current: 3 Amps - Short circuit tolerant (10 seconds/minute) - LED (indicates voltage is in regulation, within 10%). BEC 12 V output: - The battery should be 4S~6S LiPo - Standard output designed to power cameras and video transmitters, etc. - Voltage: 12.0 +/- 0.2VDC. - Continuous current: 2 Amps (Max.3A 10s/minute) - Short circuit tolerant (10 seconds/minute) - LED (indicates voltage is in regulation, within 10%). CAM & VTX voltage bridge - 3S operation. Choose VCC for 12V camera & 12V VTX, VCC = battery voltage. - 4~6S operation, choose 12 for 12V camera & 12V VTX - 3~6S operation, choose 5 for 5V camera. - Video pass through the CAM pad to the VTX pad. Physical: - Dimensions: 36 x 36 mm. - Weight: 6 g. - Mounting holes 30.5 mm square spacing
