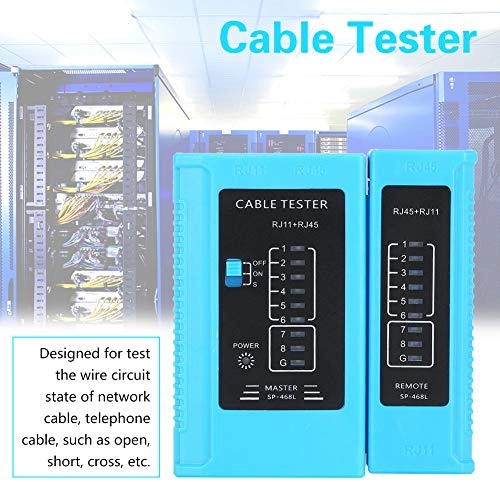

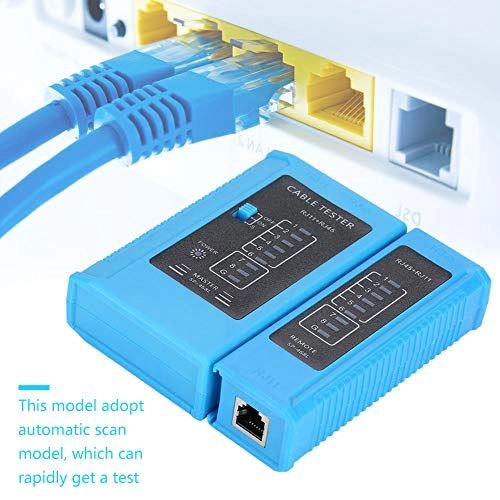

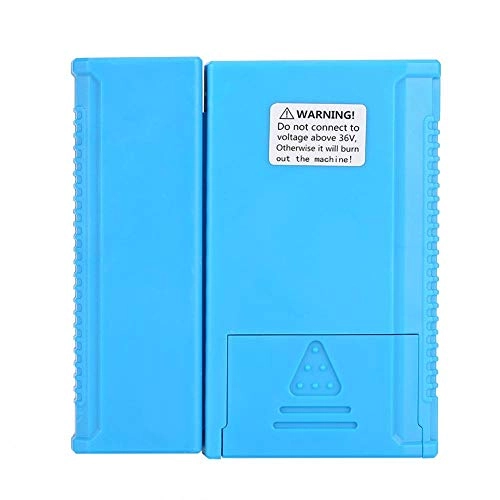

Qioni Network Cable Tester - RJ45 RJ11 Automatic Scan Model

Specification:

Detected Cable type: RJ11,RJ45

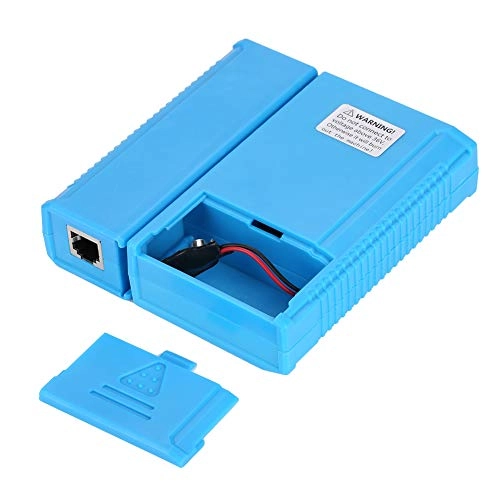

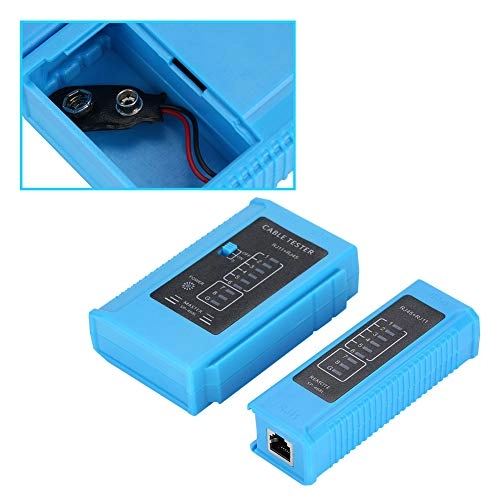

Power supply: 9V laminated battery(Not included)

Color: Blue

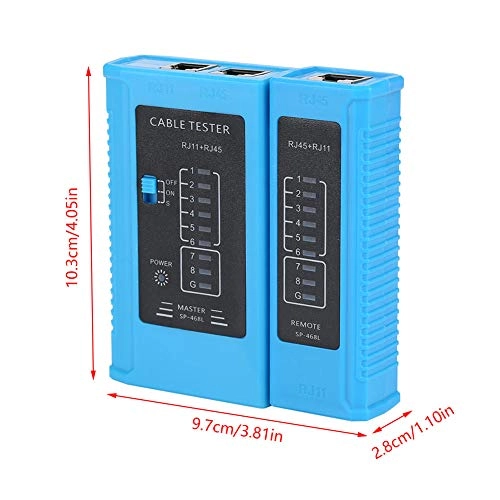

Size: 9.7*10.3*2.8cm/3.8*4.1*1.1in

Weight: Approx.116g/4.1oz

Instructions:

1. Testing double twisted cables 1,2,3,4,5,6,7,8 and G corresponding ,and tell users which exact line is on wrong circuit

2. Switch ON is the normal test speed, "S" is the rapid test speed, and OFF is Turn off the Tester

3.turn on the tester ,insert the line connector into main tester and remote control .Then the indication lights(1 to 8 and G) will flash

Main tester: 1-2-3-4-5-6-7-8-G

Remote control tester:1-2-3-4-5-6-7-8-G（RJ45）

1-2-3-4-5-6------ （RJ12）

1-2-3-4---------- （RJ11)

If the connection is not normal, it will be displayed as follows:

1.When there is a network cable such as NO. 3 cable is open circuit, the main tester and remote test end NO.3 lights is not on.

2.When several cables are open circuit, several cables are not on. When less than two cables are connected, the lights are not on.

Package list:

1 x Network Cable Tester(Battery not included)
