pzsmocn LED RGB Module - WS2812 JST-3P

This is a cascadable RGB full-color single lamp bead module. The module only needs one signal pin, and the RGB LED strip constructed by cascading it has extremely low power consumption. This function can cascade more than 100 modules, the total length can reach tens of meters, but the power requirement does not exceed 5V 2A. This makes it easier and more flexible to configure the length of the RGB LED strip.

This module uses high-quality and high-brightness WS2812 RGB LED, which is fully compatible with the driving circuit or program used by the light strip, while maintaining an excellent display effect. For existing procedures from RGB LED strips to RGB LED module strings, this hardly needs to be changed.

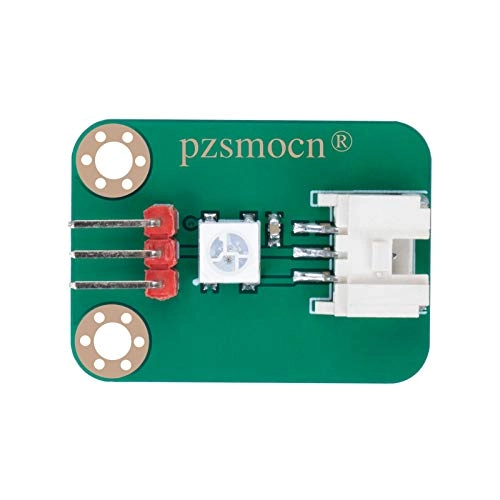

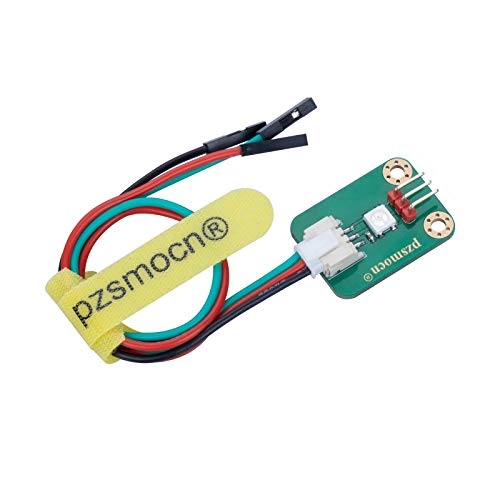

The module comes with a JST PA SMT 3-Pin horizontal sticker and a buckle socket. Also, a JST PA to DuPont female 3-Pin single-head wire is offered to facilitate wiring. Length: 210mm, buckle attached.

SPECIFICATIONS

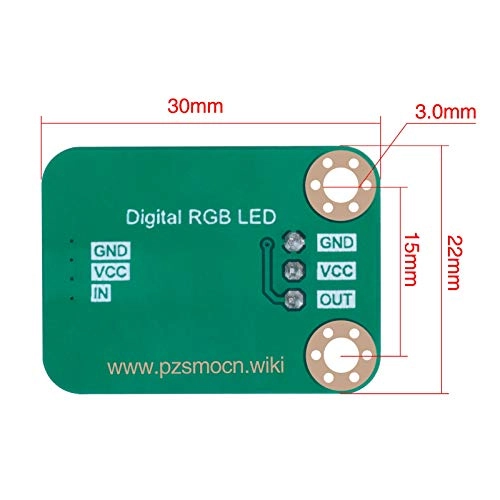

Module Specifications: Operating Voltage: DC 3.3-5V Communication Interface: JST PA SMT 3-Pin interface Dimensions: 22mm * 29.88mm * 11mm Mounting Hole Size: 3mm Installation Hole Spacing: 15mm

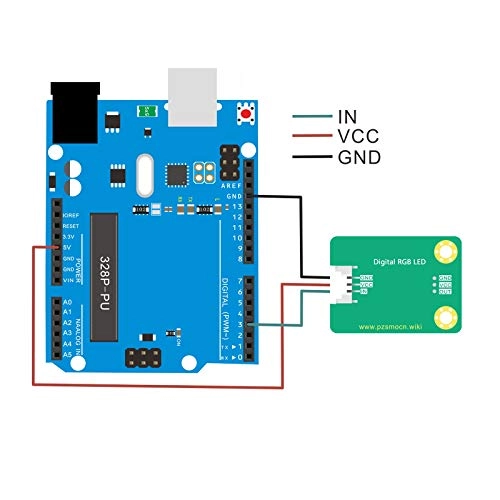

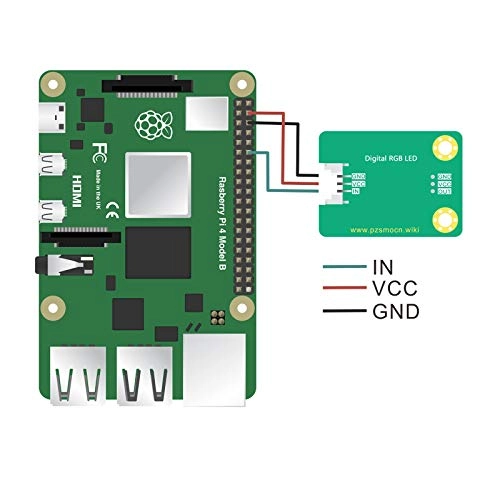

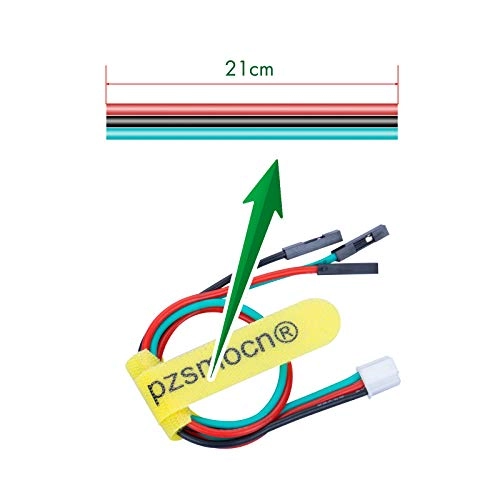

Wire Specifications: Withstand Voltage: less than 50V Withstand Current: less than 1000MA Length: 21CM Wire Sequence: Black-negative power supply, Red-positive power supply, Green-SDA, Blue-SDA

PACKAGE CONTENT

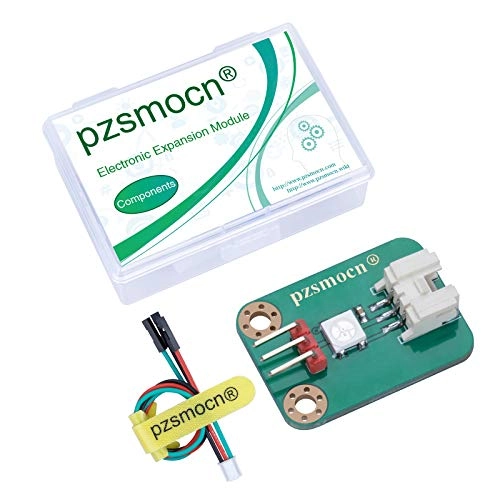

1 * LED RGB (Full Color) Module 1 * JST-PA to DuPont 3P Wire
