PIAOCAIYIN YN27C - Gasoline 25J

Specification

Material: Magnesium Alloy

Color: Yellow

Assembly Required: Yes

Engine Type: Single-cylinder Air-cooled Two-stroke Gasoline Engine

Carburetor Type: Floatless

Ignition Type: SCR Non-contact System

Engine Piston Diameter: 58mm/2.28in

Engine Piston Stroke: 70mm/2.76in

Engine Displacement: 185cm³/11.29in3

Engine Load Speed (Measured When Drilling Five Holes): ≥ 2450 rpm

Drill Rod Idling Speed: ≥200 rpm

Drill Pole Size(L*D): 60*2.2cm/23.62*0.86in

Drill Rod End: Hexagonal

Maximum Drilling Depth: ≤6 m/19.69 ft

Fuel Tank Volume: ≥ 1.14 L/0.3Gallon

Drilling Speed: ≥250 mm/ 9.84in/Minute

Ratio of Gasoline to Lubricating Oil (by Volume): 8:1

Spark Plug Motor Clearance: 1.5mm/0.06in

Impact Energy: ≥25J

Working Temperature: -40~40℃/-40~140 °F

Drilling Diameter: 20~42 mm /0.79~1.65 in

Fuel Consumption: ≤0.12L/0.03 Gallon/Minute

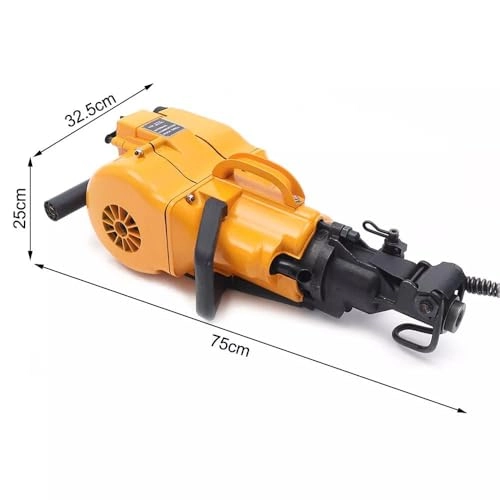

Product Size: 74.6*31.5*22.9cm/29.37*12.40*9.02in

Package Size: 86*43*30cm/33.86*16.93*11.81in

Net Weight: 27kg/59.52 lbs

Gross Weight: 38kg/83.78lbs

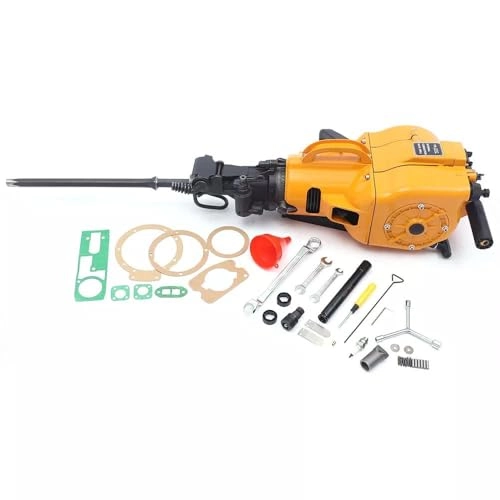

Package Included

1* Internal Combustion Rock Drill

1* Drill Rod

1* Refueling Funnel

All Accessories for Use

Notes

1.Please check the style and size before purchasing.

2.It can drill holes on rocks vertically downwards and horizontally upwards at less than 45 °.

3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
