New Lon0167 SD-DR840C9

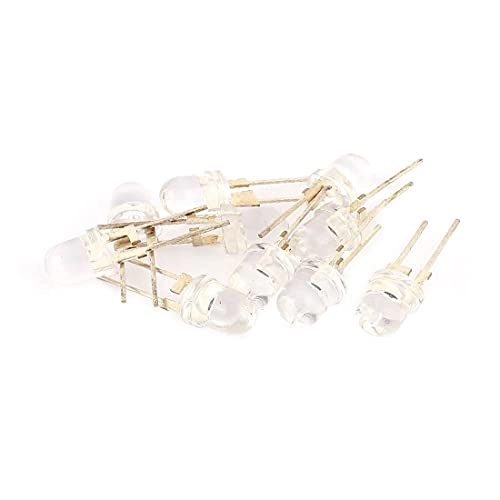

10 Pcs High Power 940 Nano IR Infrared LED Diode SD-DR840C9 For CCTV Camera Specifications:Absolute Maximum Rating:Ta=25C DC Forward Current IF:50 mA Pulse Forward current IFP:1000 mA Reverse Voltage VR:5V Power Dissipation PD:90 mW Operating Temperature:Topr -40 ~ +95C Storage Temperature:Tstg -40 ~ +100C Pulse width=100μs Duty cycle=1/100 Electrical-Optical Characteristics:Ta=25C DC Forward Current VF IF:20mA --- 1.45 1.50 ν DC Reverse Current IR VR:5V --- --- 10 A Dominant Wavelength D IF:20mA --- 850 --- nm Radiant Intensity IV IF:20mA --- 48 --- Mw/sr 50% Power Angle 2 1/2 IF:20mA --- 60 --- deg Suitable:CCTV Camera IR light Telecommunications Medication Description in German 10 Stück High Power 940 Nano IR LED Diode SD-DR840C9 für CCTV-Kamera Herstellungsland: CHINA; Material: Harz; Nettogewicht: 13g Packungsinhalt: 10 x IR-LED-Diode mit Infrarotlicht; Modell: SD-DR840C9 Hauptfarbe: Klar; Größe: 8 x 11 mm (D * L) Eingangsspannung: 1,5 V; Strom: 60 mA Anschlussnummer: 2; Wellenlänge: 940nm
