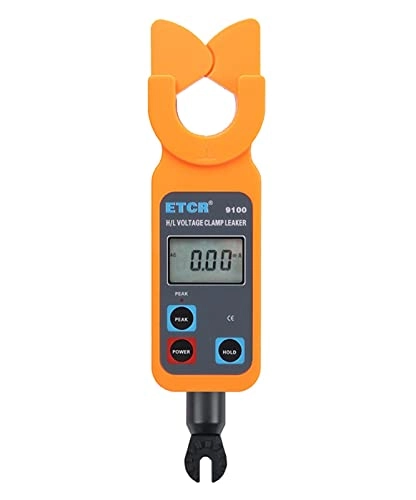

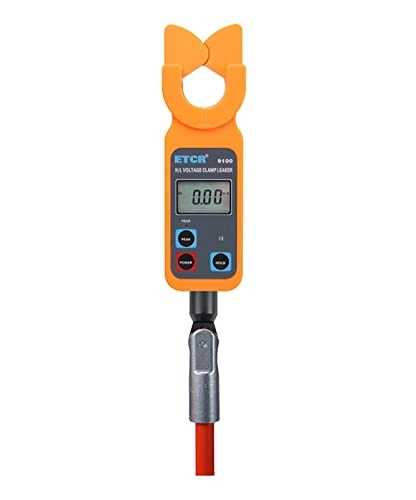

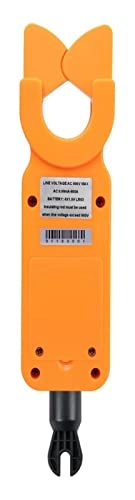

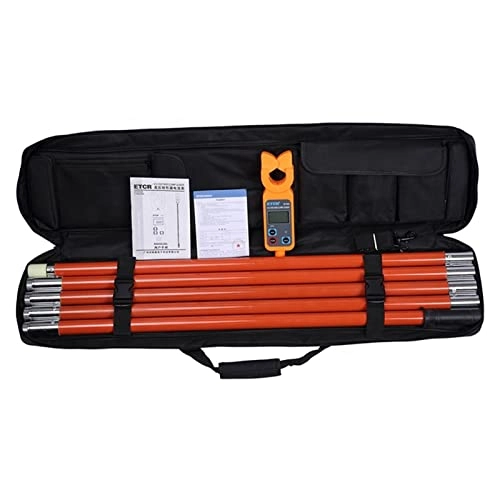

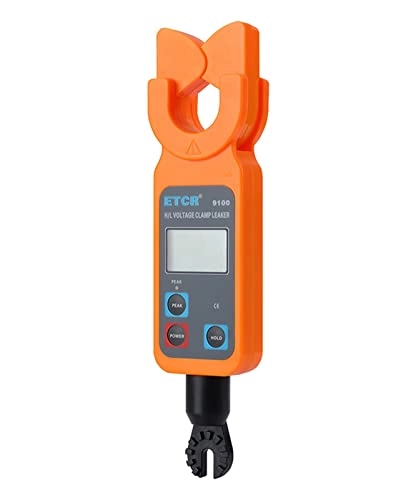

MKHFP Etcr9100 - 33 mm

Power supply: DC 6V (1.5V x4) not included. Clamp: 33 mm LCD: 4 7mm × 28.5mm (with backlight) Range: AC 0.00MA ~ 600A Resolution: 0.01MA Accuracy: ±1%RDG ±3DGT (23±5, below 80%RH) Data storage: 99 set Car: 15 minutes rest automatically Working environment: -10~40; below 80%RH Store environment: -10~60; below 70%RH Structure: drip-proof type Measurement method: CONNECTICUT clamp, Non-contact measurement, points method Frequency: 50Hz, 60Hz Automatic identification Shift: automatic shifting. Peak Hold: Automatically keep the test value at a high point. Press and hold the CIMA button in the test mode until the CIMA lamp lights up. Peak hold feature is enabled. Data keeping: Press KEEP key to keep data in test mode, "KEEP" symbol display Data review: "MR" symbol indicates that it can go through stored data Overflow display: Overflow function: "Wave" symbol display Line voltage: below 60kV circuit test (with 5 sections of insulation bar operation) Measurement time: 0.5 seconds/time Voltage alarm: when the battery voltage decreases to about 4.8V, the battery voltage low icon will be displayed Insulation rod size: 32mm, 1m/PCS (5pcs) Insulation: AC100KV/RMS (5 section between insulation rod and high voltage clamp core) Weight: meter: about 335g, about 7kg (with a 5 piece bar) Dimension: 245mm × 68mm × 40mm
