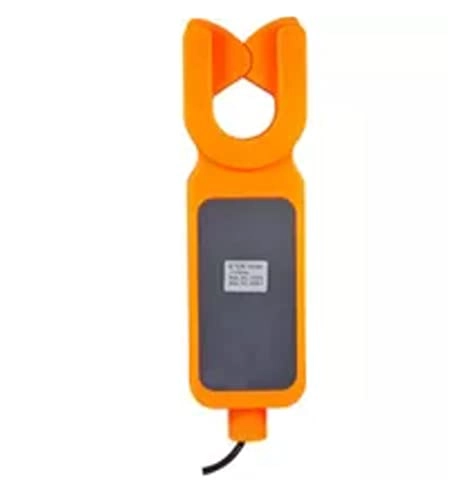

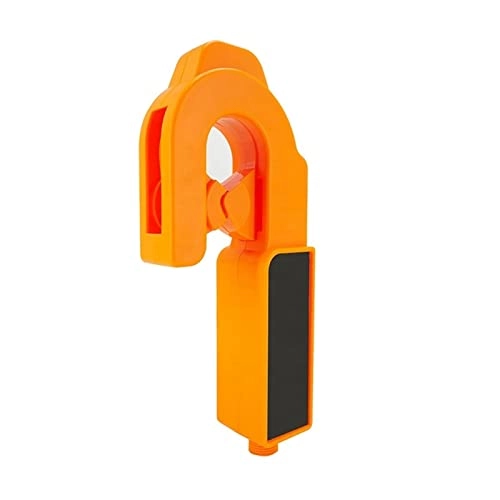

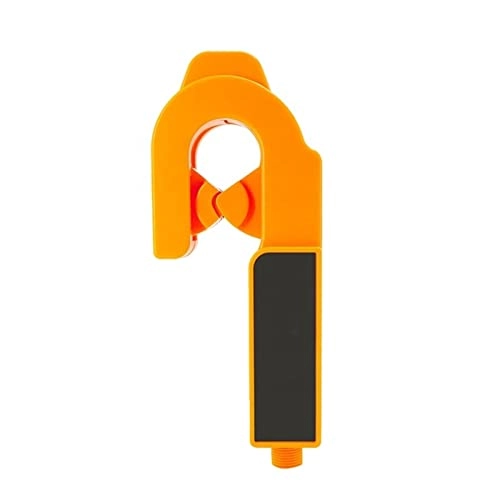

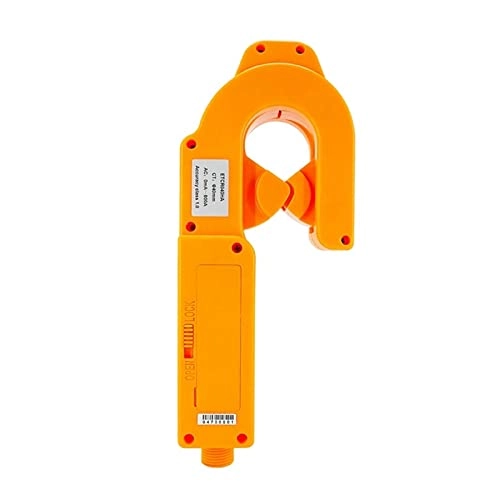

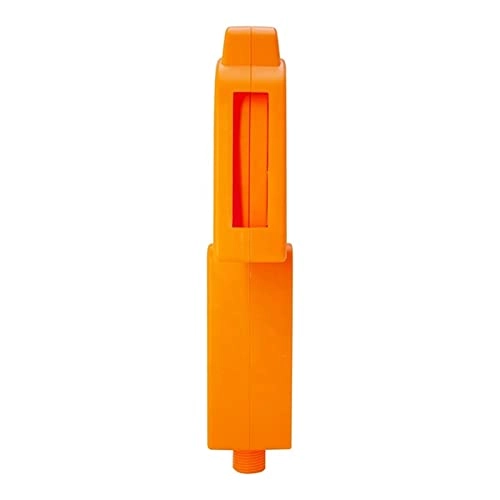

MKHFP ETCR040HA - CAT600V 36 mm

Product Function Detection of AC leakage current/current, higher harmonic current, phase, electric power, power, power factor etc. Product Features 1.Inico Automatic automatic clamp structure, no need to cut off power and disconnect the circuit in tests, easy to carry and especially Suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable. 2.Adopts Permalloy Core and CT Double-layer shielding technology, with high performance and high precision, high anti-interference ability, suitable for a complex interference environment. 3. The battery jar could insert 4pcs 1. 5V AAA alkaline dry cell and power supply for secondary development. 4. Inspiration rod interface: M24 screw thread 5.Pence insulating: AC3700V /MS (between core and coil). 6. Safety class: CAT600V (operate with the insulation rod below 60kV) 7. Working temperature: -15℃-50℃ Specification Model ETCR033H ETCR040HA ETCR048HA ETCR068HA Align 0.000MA-20A AC 0MA-800A AC 0MA-800A AC 0MA-1200A AC Resolution 0.001mA 30ma 30ma 30ma Accuracy class ± 1.0% ± 1.0% ± 1.0% ± 1.0% Phase Error 2nd 2nd 2nd 2nd Turning Ratio 800:1 4000:1 4000:1 4000:1 Reference Load 0 ~ 200Ma 300 0 ~ 2a 30 0 ~ 20a 3 0 ~ 8 A 300 0 ~ 80 to 30 0 ~ 800a 3 0 ~ 8 A 300 0 ~ 80a 30 0 ~ 800a 3 0 ~ 12A 300 0 ~ 120a 30 0 ~ 1200a 3 Clamp Size 33mm 36 mm 48 mm 68mm Size: 245 mm × 70 mm × 40 mm 297 mm × 119 mm × 58 mm 245 mm × 70 mm × 40 mm 218 mm × 135 mm × 60 mm
