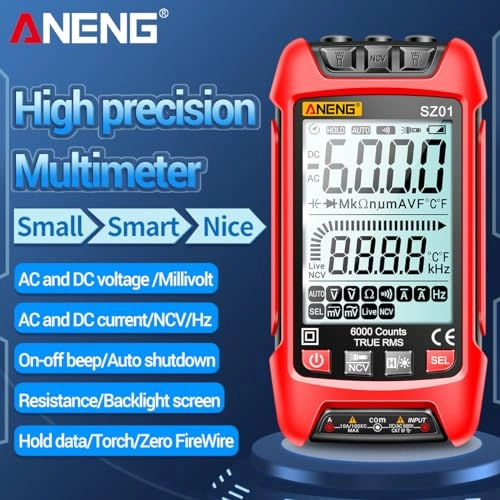

1. [MULTIFUNCTIONAL MEASUREMENT] This intelligent multimeter is designed to meet all your electrical needs, effortlessly measuring AC/DC voltage and current, resistance, frequency, and continuity. It's more than just a tool; it's an essential companion and enthusiasts alike, ensuring accuracy and reliability for every task you undertake.
2. [EASY TO USE & READ] With a large LCD screen, the SZ01 boasts a user-friendly interface featuring soft push buttons for seamless operation. The 6000 counts display, complemented by a backlight, provides clear readings even in poorly lit environments, making your work and frustration-free.
3. [SAFETY FIRST] Equipped with advanced safety features, this multimeter includes an overload conservation and smart anti-burn technology, ensuring it meets the DC/AC 600V CAT III overvoltage standard. You can measure with peace of mind knowing that your device is designed to protect both you and itself from potential hazards.
4. [CONVENIENT LIGHTING] Illuminate your with the dual flashlight design that ensures you can operate in dark or dim conditions. This thoughtful addition automatically turns off after 5 minutes to save battery life, giving you functional versatility wherever your work takes you.
5. [PORTABLE & DURABLE] Compact and lightweight, the SZ01 is designed to fit in your hand like a mobile phone, making it the perfect portable tester. Encased in a soft silicone protective cover, it is built for durability, ensuring it withstands falls and scratches while on the job.
Spec:
Features:
Intelligent Multimeter with Multiple Functions: It can measure AC/DC current, AC/DC voltage, resistance, frequency, continuity, fire wire detection, etc.
Dual Flashlights Design: two torch at the top for auxiliary lighting up the working area in the low lit or dark environment, not afraid of dark when working, and it will automatically turned off after about 5 minutes.
NCV Non-contact Voltage Detection: Place the NCV sensor closer to the measured cable, and the multimeter can detect whether the voltage is greater than 90V AC voltage. When the AC voltage being detected, the meter buzzer alarms and the LCD analog bar displays the induction .
Safety Operation: Built-in overload conservation , smart anti-burn. Meet the DC/AC 600V CAT III overvoltage standard, and double insulation conservation(class II).
Large LCD Screen & Easy to Control: Soft push buttons is easy to operate, the instrument is used for 6000 counts display, LCD display, backlight display, and clear reading.
Automatic shutdown: The multimeter will automatically shut down after 15 minutes. Current sensing alarm function, live wire measurement alarm.
Compact & Accurate: As small as a mobile phone, convenient to use and carry around. Built-in with high performance chip to ensure its accuracy.
Silicone Protective Case: Protected with a soft silicone cover, you can use the meter at various condition without worrying it from falling down or scratch by hardware.
Specification:
Color: Red / Yellow (Optional)
Model: SZ01
Auto Range: Yes
Overload conservation: Yes
Maximum Voltage Between Measuring End And Ground: 600V DC or 600V AC
Working Height: maximum 2000m
Display: LCD
Display Type: Digital display
Maximum Display Value: 6000 counts
Polarity Indication: automatic indication, '-' indicates negative polarity.
Superview Display: 'OL' or '-OL'.
Automatic Shutdown Time: 15 minutes
Sampling Time: about 3 times/second
AC Current: 20mA/10A
DC Current: 20mA/10A
DC Voltage: 600.0mV/6.000V/60.00V/600.0V
AC Voltage: 600.0mV/6.000V/60.00V/600.0V
Line Continuity Test: 50Ω
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
Frequency: 100Hz/1000Hz
Buzzer: Yes
NCV Induction: Yes
Data Hold: Yes
Zero/Fire Wire: Yes
Low Battery Indicator: Yes
Power Supply: 2 X AAA batteries (not included)
Temperature Coefficient: less than 0.1X accuracy /°C
Operating Temperature: 0°C-40°C
Storage Temperature: -10°C- 50°C
Item Size: 125.4 * 66.9 * 26.6 mm / 4.94 * 2.63 * 1.05 inch
Package Size: 135 * 75 * 66 mm / 5.31 * 2.95 * 2.6 inch
Package Weight: 225g / 7.94oz
Package List:
1 * Digital Multimeter
1 Pair * Test Leads
1 * User Manual (English)
PackageList:
1 * Digital Multimeter
1 Pair * Test Leads
1 * User Manual (English)
