Mikrotik LDF 5

Name: Mikrotik LDF 5
Brand: Mikrotik
SKU: 348561
Availability: InStock

Best offer

AED

562⁰⁰

Key Features

2.4 GHz: No
5 GHz: Yes
PoE adapter included: Yes
Antenna gain level (max): 9dBi
Maximum data transfer rate: 100Mbit/s
Frequency band: 5 GHz, 5.15 - 5.875 GHz, 5.150 - 5.875 GHz, 5.170-5.250, 5.725-5.835 GHzGHz
Internal: No
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10, 100Mbit/s
Product colour: White
Bandwidth: 5GHz
AC adapter included: Yes
Flash memory: 16MB
LED indicators: Yes
Transmitting power: 25dBmW

Specifications

Features

Purpose

Outdoor

Internal memory

64 MB

Operating system installed

RouterOS

Product colour

White

Antenna gain level (max)

9 dBi

Maximum data transfer rate

100 Mbit/s

Frequency band

5 GHz, 5.15 - 5.875 GHz, 5.150 - 5.875 GHz, 5.170-5.250, 5.725-5.835 GHz

5 GHz

✓

2.4 GHz

✗

Weight & dimensions

Height

84 mm

Depth

115 mm

Width

84 mm

Power

AC input voltage

10 - 28 V

Power consumption (typical)

6 W

Power consumption (max)

8 W

Power over Ethernet (PoE)

✓

Performance

Transmitting power

25 dBmW

Other features

Bandwidth

5 GHz

Design

LED indicators

Yes

Internal

✗

Computer system

Built-in processor

✓

Packaging content

Cables included

AC adapter included

✓

PoE adapter included

✓

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11n

Auto MDI/MDI-X

✓

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

Memory

Flash memory

16 MB

Receiver

Receiver sensitivity

-75

Product Details

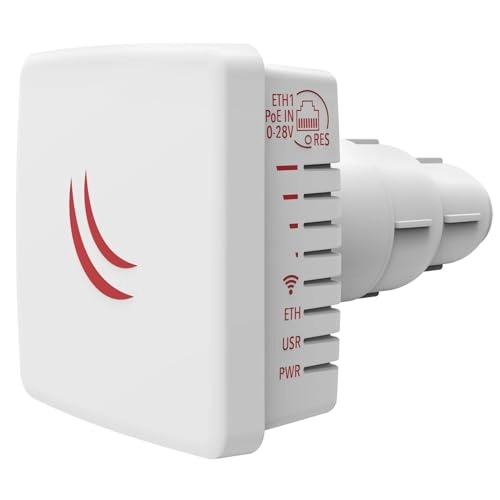

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost. Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use. - LDF 5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. - LDF 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Files

User manual

mmo_35224633_1524482994_5195_11396.pdf

PDF• 523.2 KB

Product Brochure

mmo_35224633_1524483005_0586_12901.pdf

PDF• 471.1 KB
