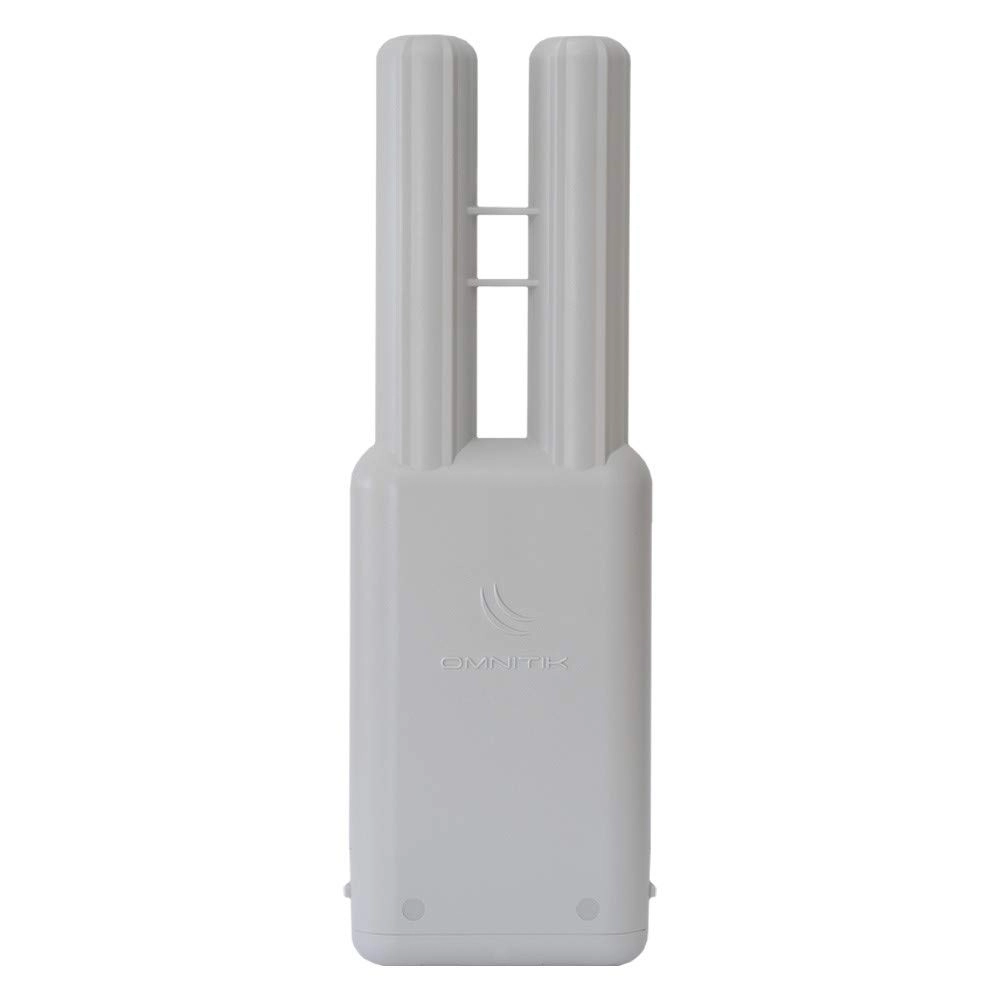

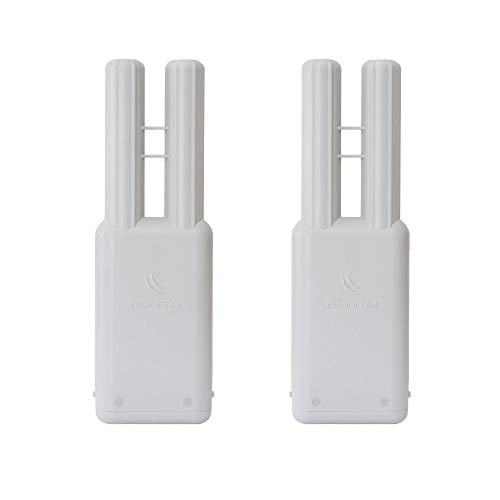

Mikrotik OmniTIK 5 PoE

Name: Mikrotik OmniTIK 5 PoE
Brand: Mikrotik
SKU: 348387

Best offer

AED

1 529⁰⁰

Key Features

2.4 GHz: No
5 GHz: Yes
Antenna features: Integrated antenna
PoE adapter included: Yes
Antenna gain level (max): 7.5dBi
Maximum data transfer rate: 54Mbit/s
Placement: Pole
Frequency band: 5.150 - 5.875 GHz, 5.170-5.250, 5.725-5.835 GHzGHz
Internal: No
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10, 100Mbit/s
USB 2.0 ports quantity: 1
Modulation: 16-QAM, 64-QAM, DBPSK, DQPSK, QPSK
Product colour: White
AC adapter included: Yes

Specifications

Features

Chipset

AR9280-AL1A

Internal memory

128 MB

Operating system installed

RouterOS

Product colour

White

Antenna gain level (max)

7.50 dBi

Maximum data transfer rate

54 Mbit/s

Placement

Pole

Frequency band

5.150 - 5.875 GHz, 5.170-5.250, 5.725-5.835 GHz

5 GHz

✓

2.4 GHz

✗

Weight & dimensions

Weight

520 g

Height

416 mm

Depth

58 mm

Width

129 mm

Power

AC input voltage

12 - 57 V

Power consumption (max)

14 W

Power over Ethernet (PoE)

✓

Other features

Wireless standard

a/n

Design

Reset button

✓

LED indicators

Yes

Internal

✗

Computer system

Built-in processor

✓

Processor model

Qualcomm Atheros AR7241-AH1A

Packaging content

Mounting kit

✓

Cables included

AC adapter included

✓

PoE adapter included

✓

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at

Auto MDI/MDI-X

✓

Ethernet LAN data rates

10, 100

Ports & interfaces

DC-in jack

✓

USB connector type

USB Type-A

Ethernet LAN (RJ-45) ports

USB 2.0 ports quantity

Memory

Flash memory

16 MB

Antenna

Antenna features

Integrated antenna

Logistics data

Harmonized System (HS) code

85176990

Radar

Modulation

16-QAM, 64-QAM, DBPSK, DQPSK, QPSK

Product Details

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput. LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices (like SXT-5HPnD) with the same voltage as applied to the unit. Less power adapters to worry about! Box contains: OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter
