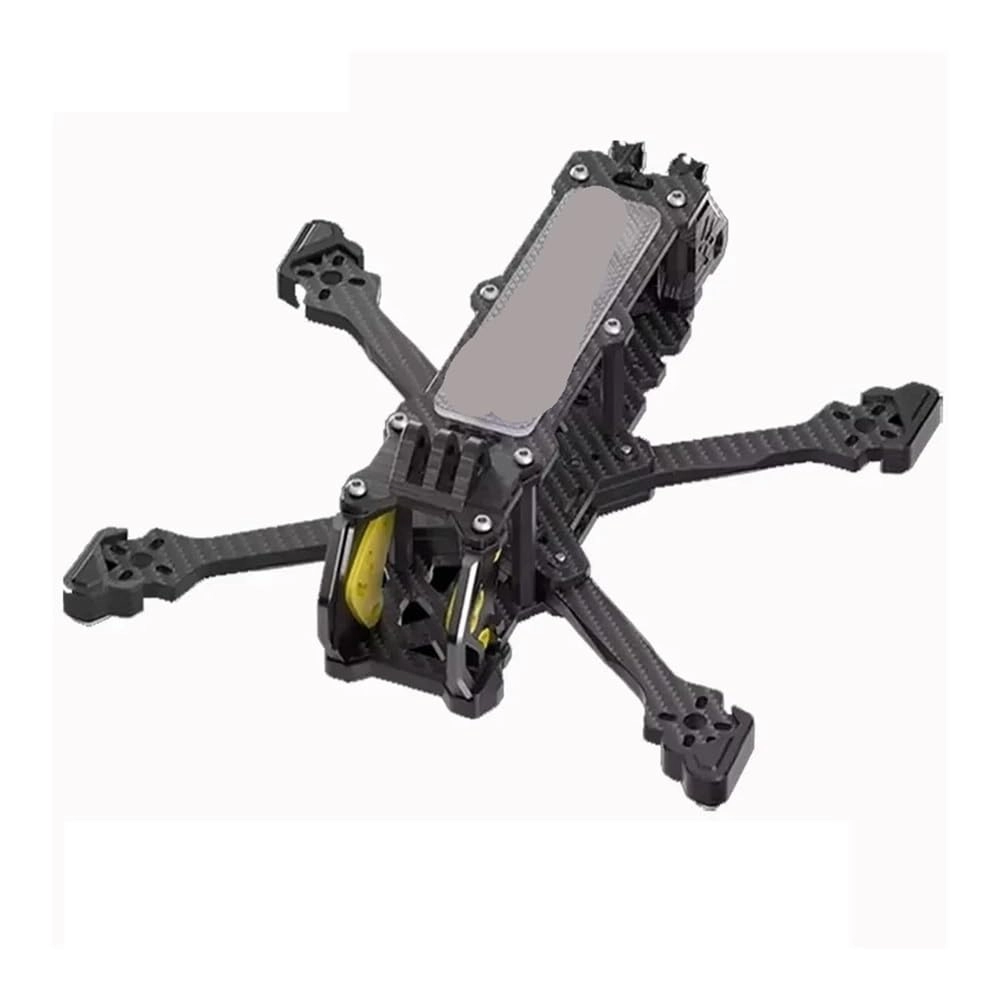

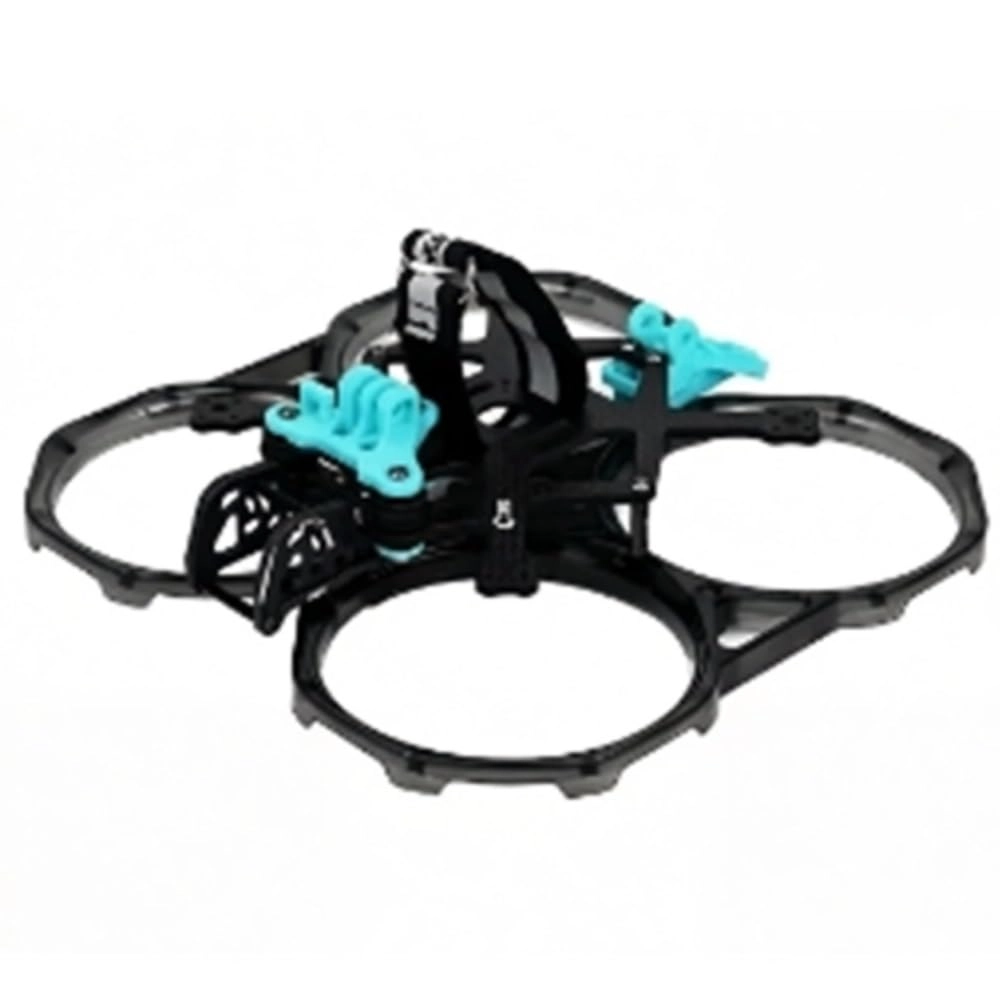

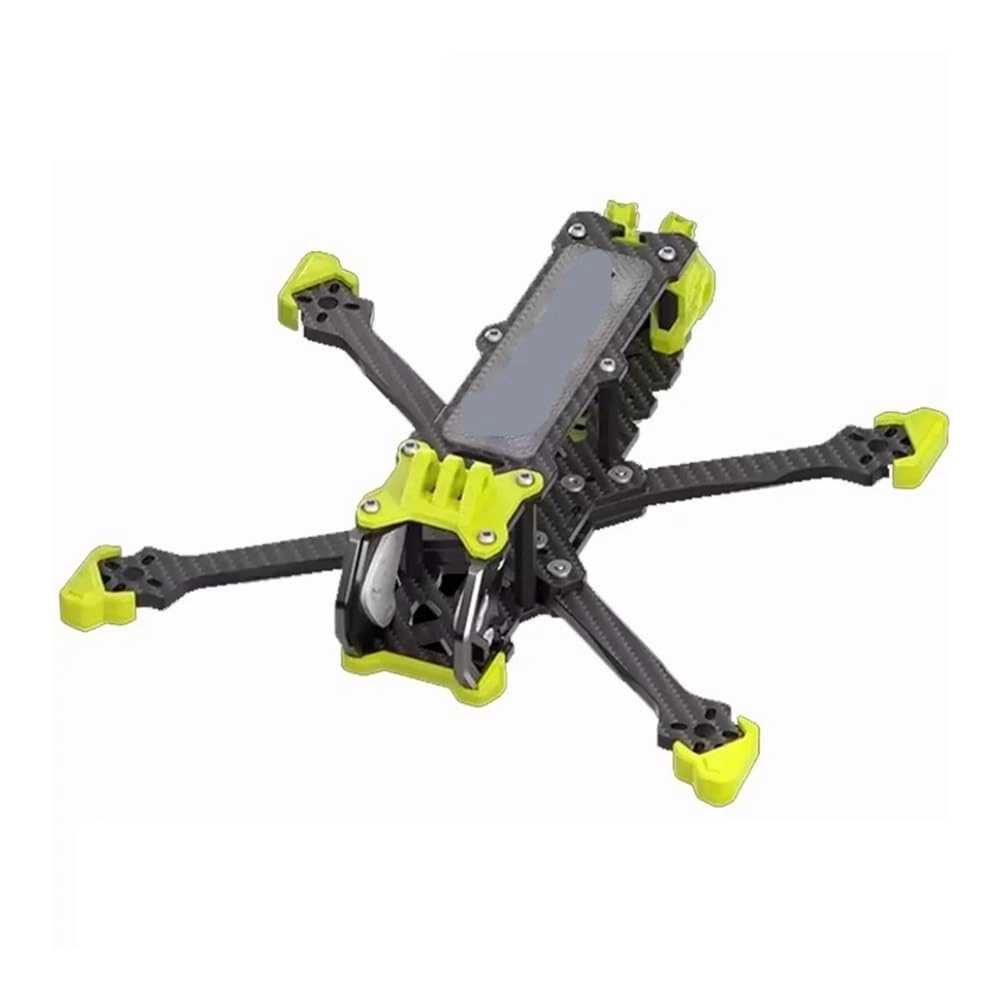

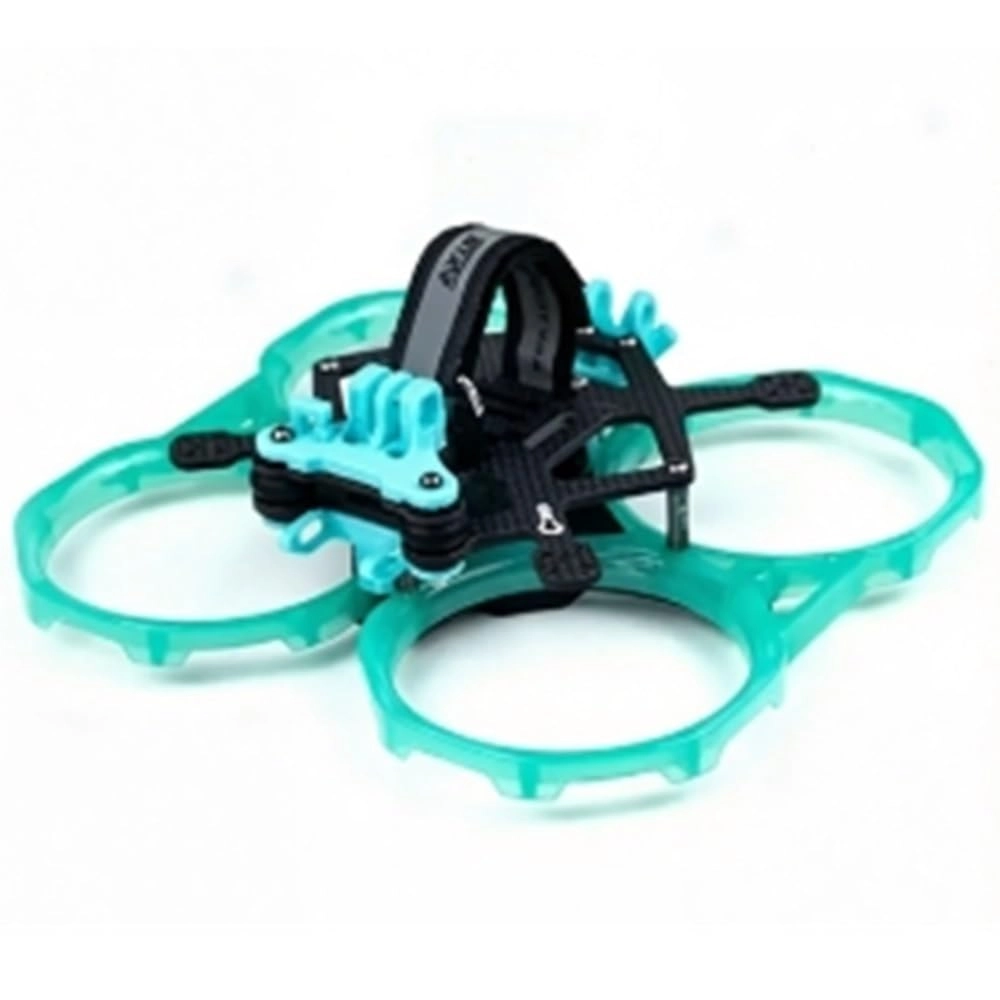

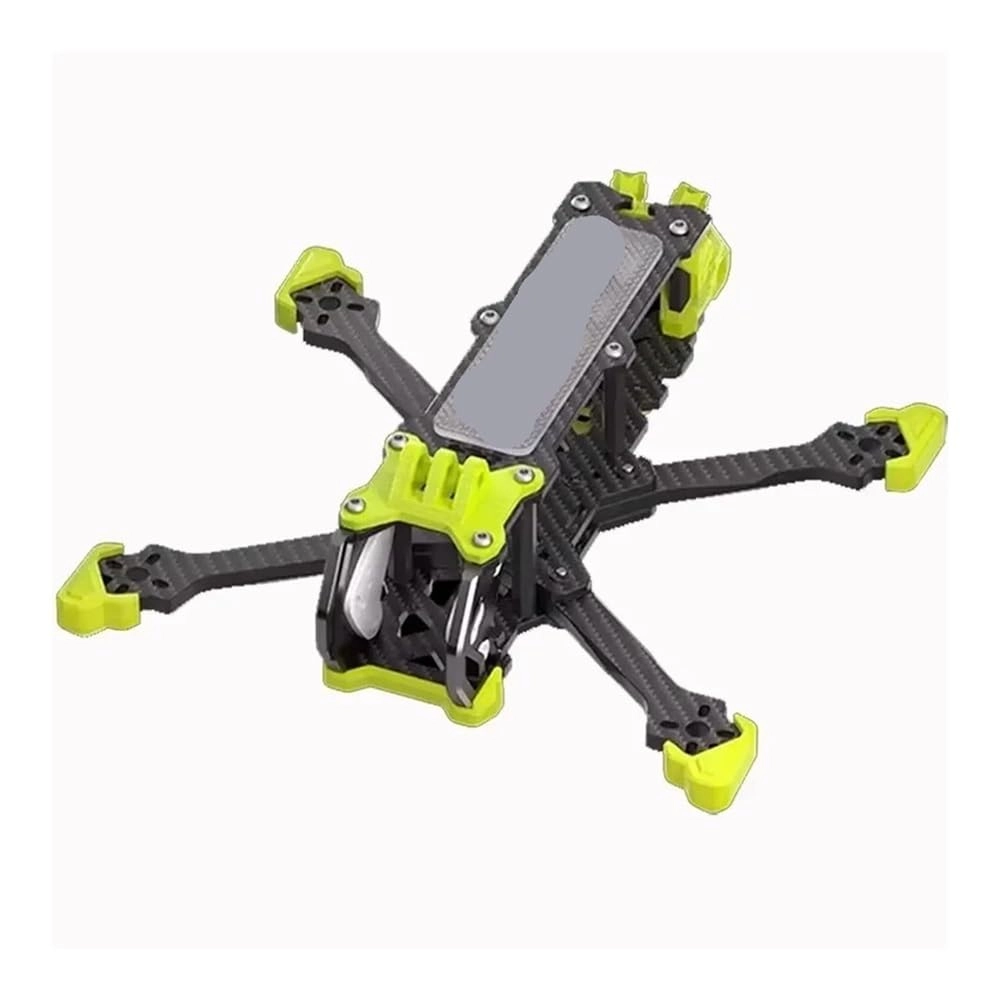

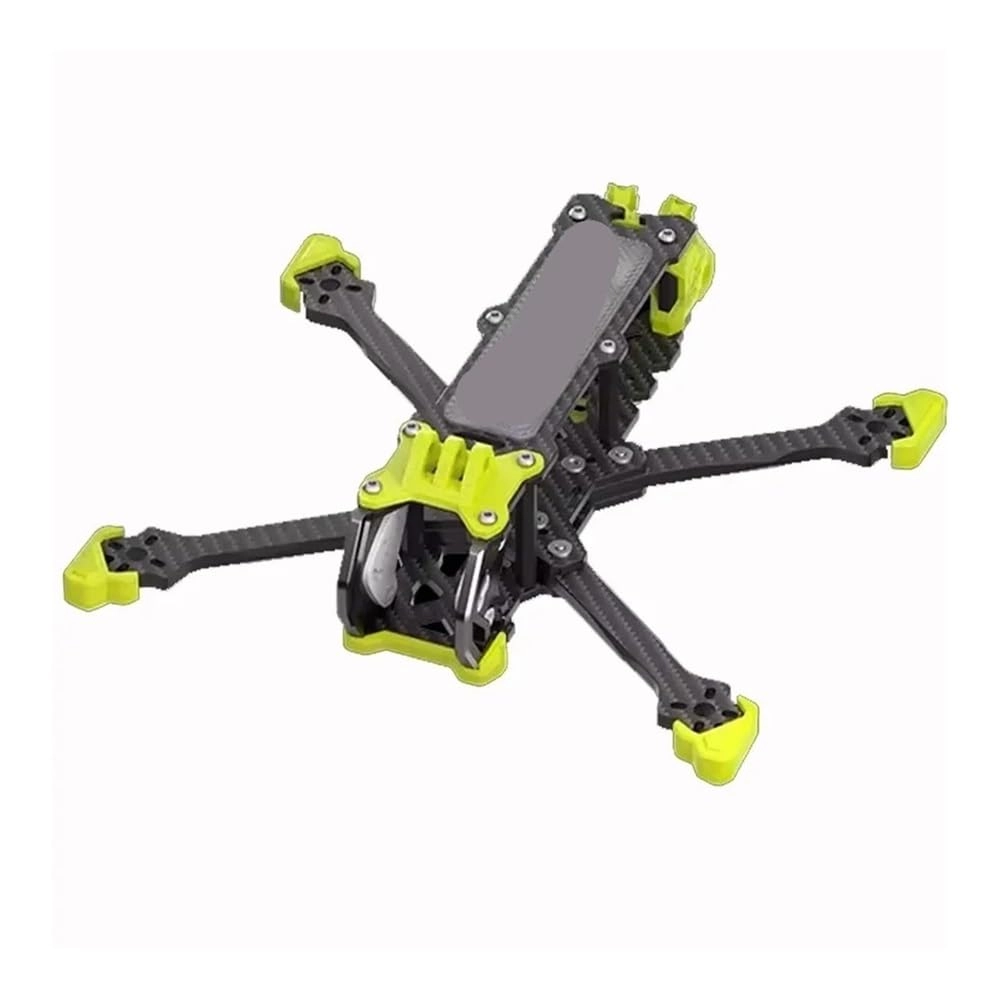

Frame Kit Support O3 Fit - Compatible With C30 V2 3Inch C35 V2 3.5inch

LINHUABAI Frame Kit Support O3 Fit - Compatible With C30 V2 3Inch C35 V2 3.5inch

Name: LINHUABAI Frame Kit Support O3 Fit - Compatible With C30 V2 3Inch C35 V2 3.5inch
Brand: LINHUABAI
SKU: 1239926

Best offer

AED

426⁵²

Key Features

Product colour: Unspecified
Connectivity technology: Bluetooth
Weight: 50g

Specifications

Features

Connectivity technology

Bluetooth

Product colour

Unspecified

Weight & dimensions

Weight

50 g

Product Details

Parameters: C30. Wheelbase: 138 mm. Arm thickness: 3.2 mm. Weight: 127.5 g Top plate thickness: 3.2 mm. Thickness of base plate: 2 mm. Carbon material: T700. Distance from bottom to top: 27 mm. Camera distance: 14-20mm Stackable mounting: 20 mm and 255 mm M2. VTX mounting: 20 mm and 255 mm M2. Prop: Max. 3.0 inches. Motor mounting: 9 x 9 mm and 12 x 12 mm. Recommended enginesC204 29003500KV Recommended battery: 1050-1500mAh (4-6S). Recommended stack: 30~40A F722 AIO Recommended support: GF D76-5. Parameters: C35. Wheelbase: 152 mm. Arm thickness: 3.5 mm. Weight: 140.7 g Top plate thickness: 3.5 mm. Thickness of base plate: 2 mm. Carbon material: T700. Distance from bottom to top: 27 mm. Camera distance: 14-20mm Stackable mounting: 20 mm and 255 mm M2. VTX mounting: 20 mm and 255 mm M2. Prop: Max. 3.5 inches. Motor mounting: 9 x 9 mm and 12 x 12 mm. Package specification: 1 piece
